7.7.3.3 Interface | General Page

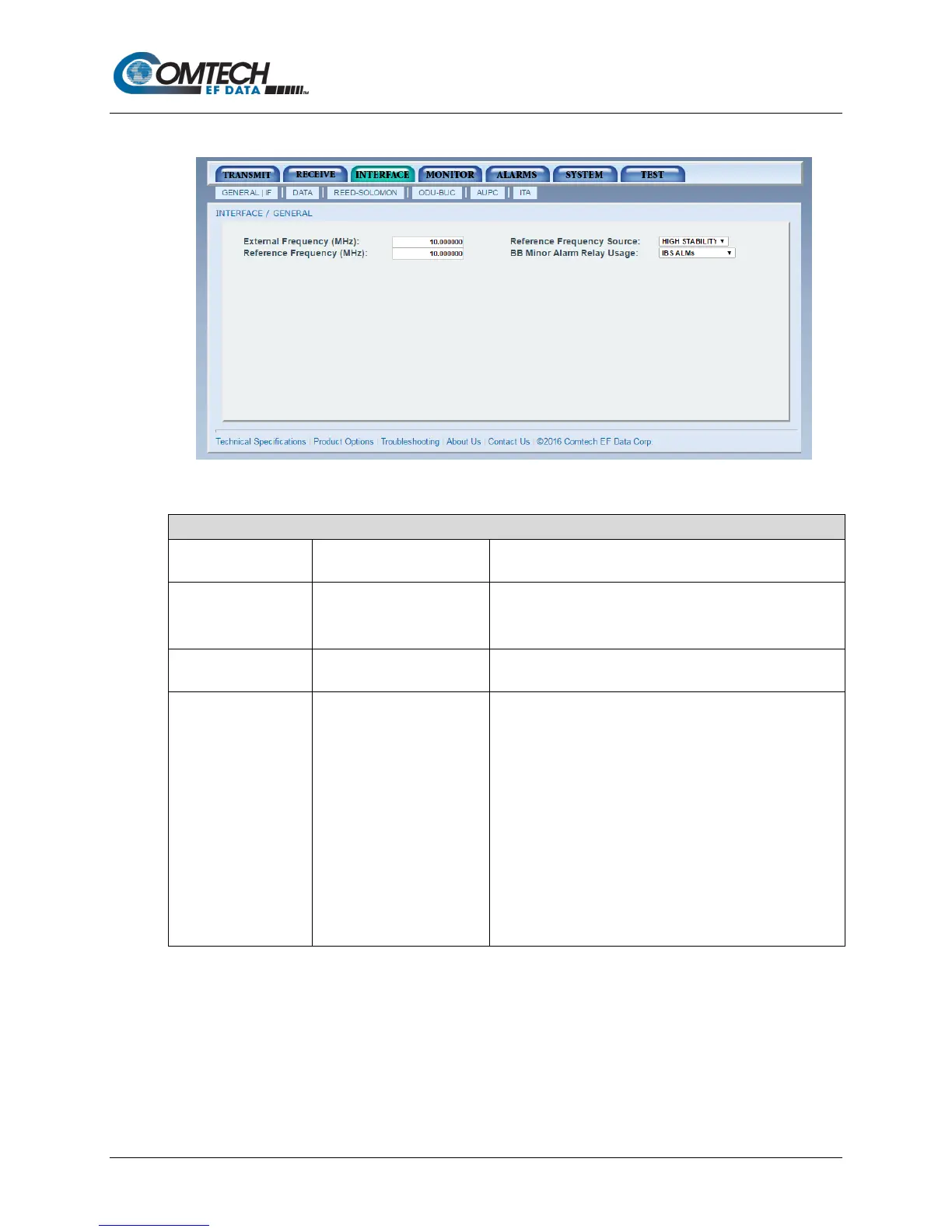

Figure 7-26. Interface | General Page Example
Interface | General Page
External Frequency
(MHz)
•
Variable through Data
Rate
Use to enter the external clock frequency in MHz.
Reference
Frequency Source
•
INTERNAL
• EXTERNAL
• HIGH STABILITY
Use to select the Frequency Reference Source.
Reference
Frequency (MHz)
Use to enter the Frequency Reference Source in MHz.
BB Minor Alarm
Relay Usage
• IBS ALMs
• IBS/MNR ALMs
• IBS/MNR/MJR ALM
• RTS PROMPT
• AHO 1:1 SWITCH
IBS ALMs: Only supports IBS prompt and service alarms.
Note: The following menus are only supported in closed
network:
IBS/MNR ALMs: Only supports IBS prompt and service
alarms and minor alarms
IBS/MNR/MJR ALM: Only supports IBS prompt and service
alarms, minor and major alarms.
RTS PROMPT: Allows contact closures to be activated
when the carrier is configured for RTS signaling. Refer to
Radyne AN230 for addition information on utilizing this
feature as Keyline Operation
AHO 1:1 SWITCH: Is used to signal an antenna handover
event
