PackTrack™
Reference Manual 233

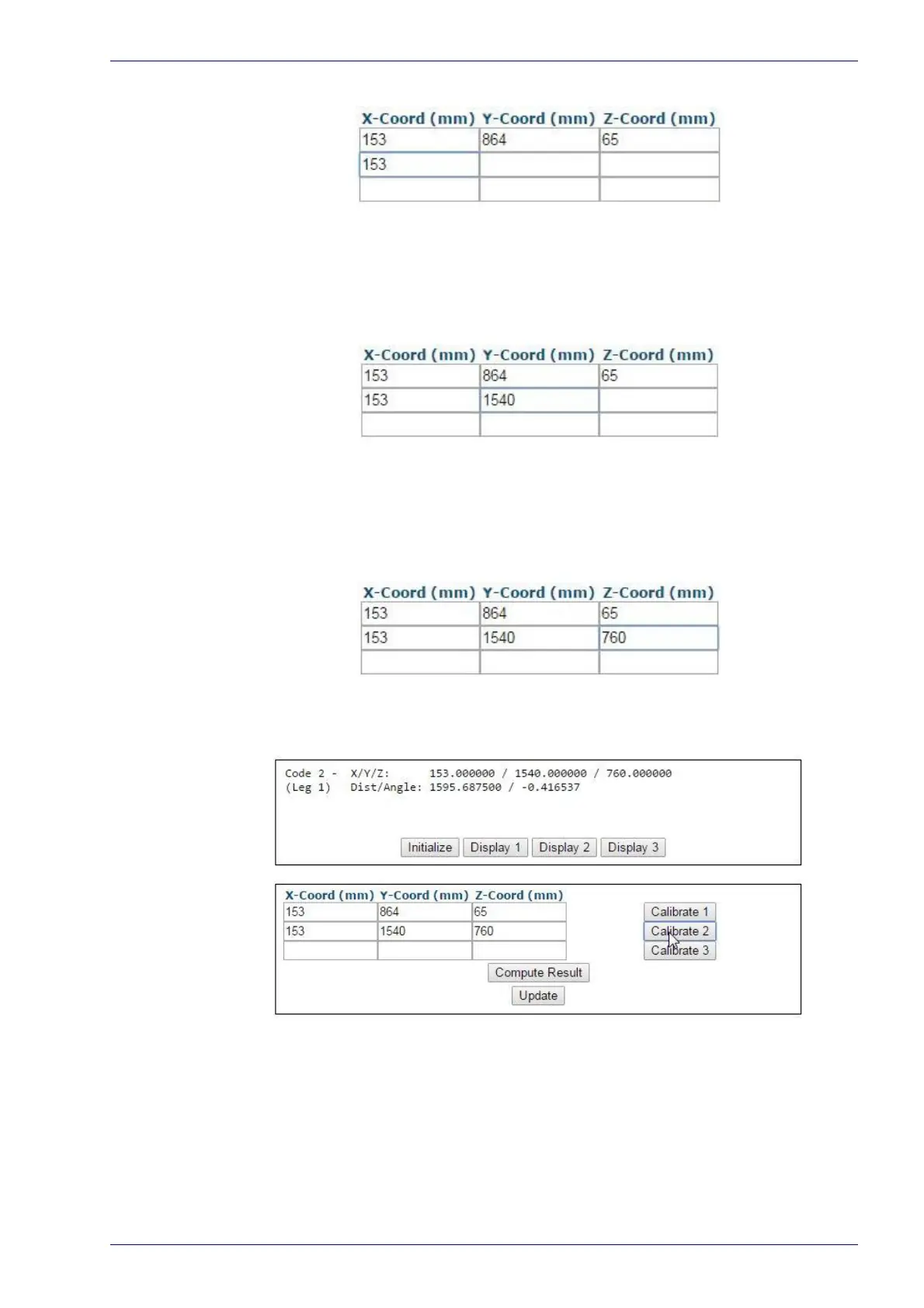

9. Measure the distance for Y from the trigger (PS line) to the center of the
barcode (leading edge of the box), and enter that distance in the first box
under Y-Coord (mm).
Your measurements will likely differ from those shown below.
10. Measure the distance for Z from the conveyor bed to the center of the bar-
code (top of
box), and enter that distance in the first box under Z-Coord
(mm)
.
Your measurements will likely differ from those shown below.
11. Click Calibrate 2. PackTrack data is displayed for the second code.
12. Place a system barcode on the right edge of a box, about halfway up the
scanner field of view as shown in the illustration below.
