Barcode Scanning Features
234
DX8210 Barcode Scanner

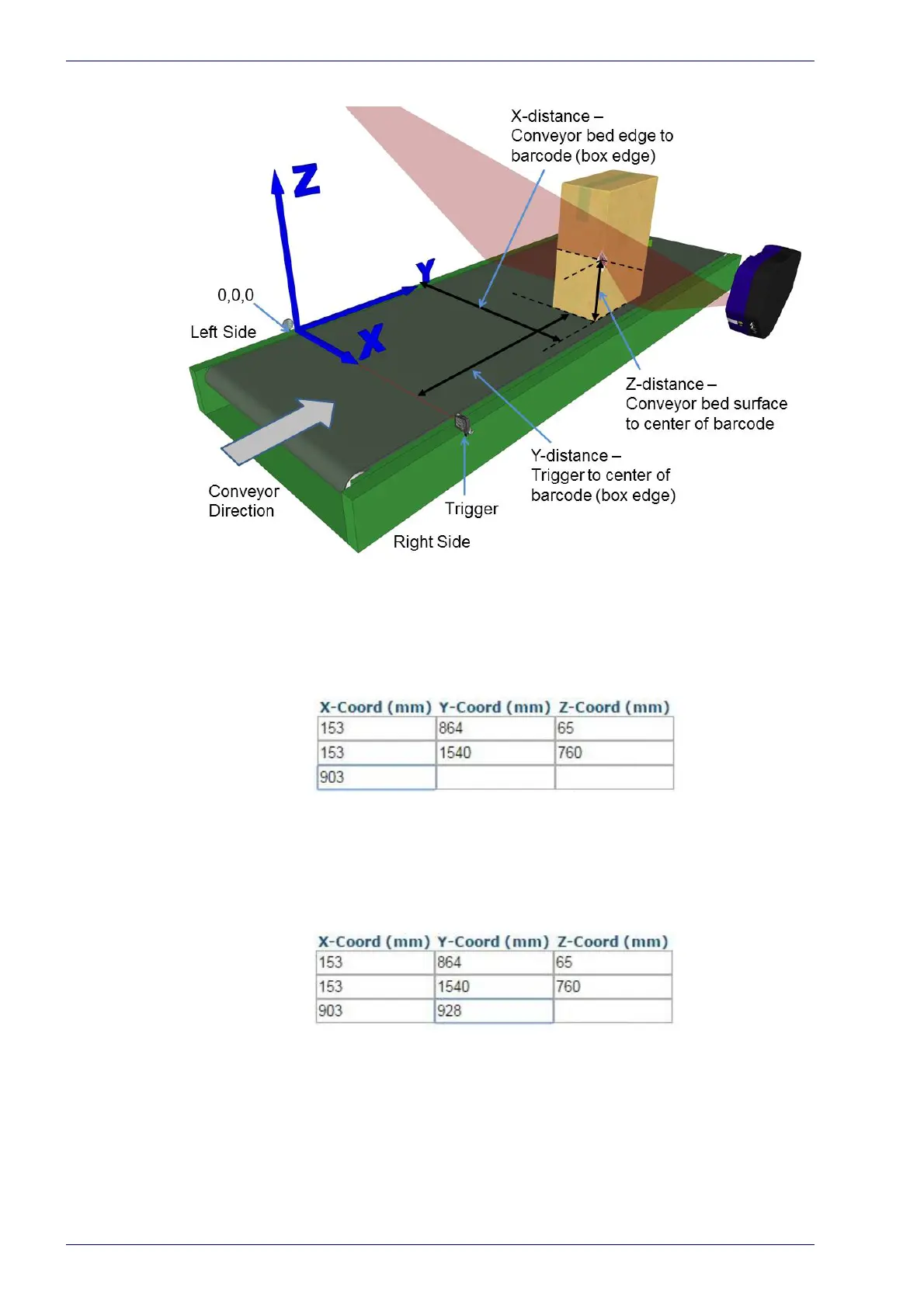

13. Measure the distance for X from the left edge of the conveyor bed to the
barcode (right edge of box), and enter that distance in the first box under X-Coord
(mm).
Your measurements will likely differ from those shown below.
14. Measure the distance for Y from the trigger (PS line) to the center of the barcode
(leading edge of box), and enter that distance in the first box under Y-Coord
(mm).
Your measurements will likely differ from those shown below.
15. Measure the distance for Z from the conveyor bed to the laser line inter-
secting the
barcode (center of barcode), and enter that distance in the
first box under
Z-Coord (mm).
Your measurements will likely differ from those shown below.
