Barcode Scanning Features
232
DX8210 Barcode Scanner

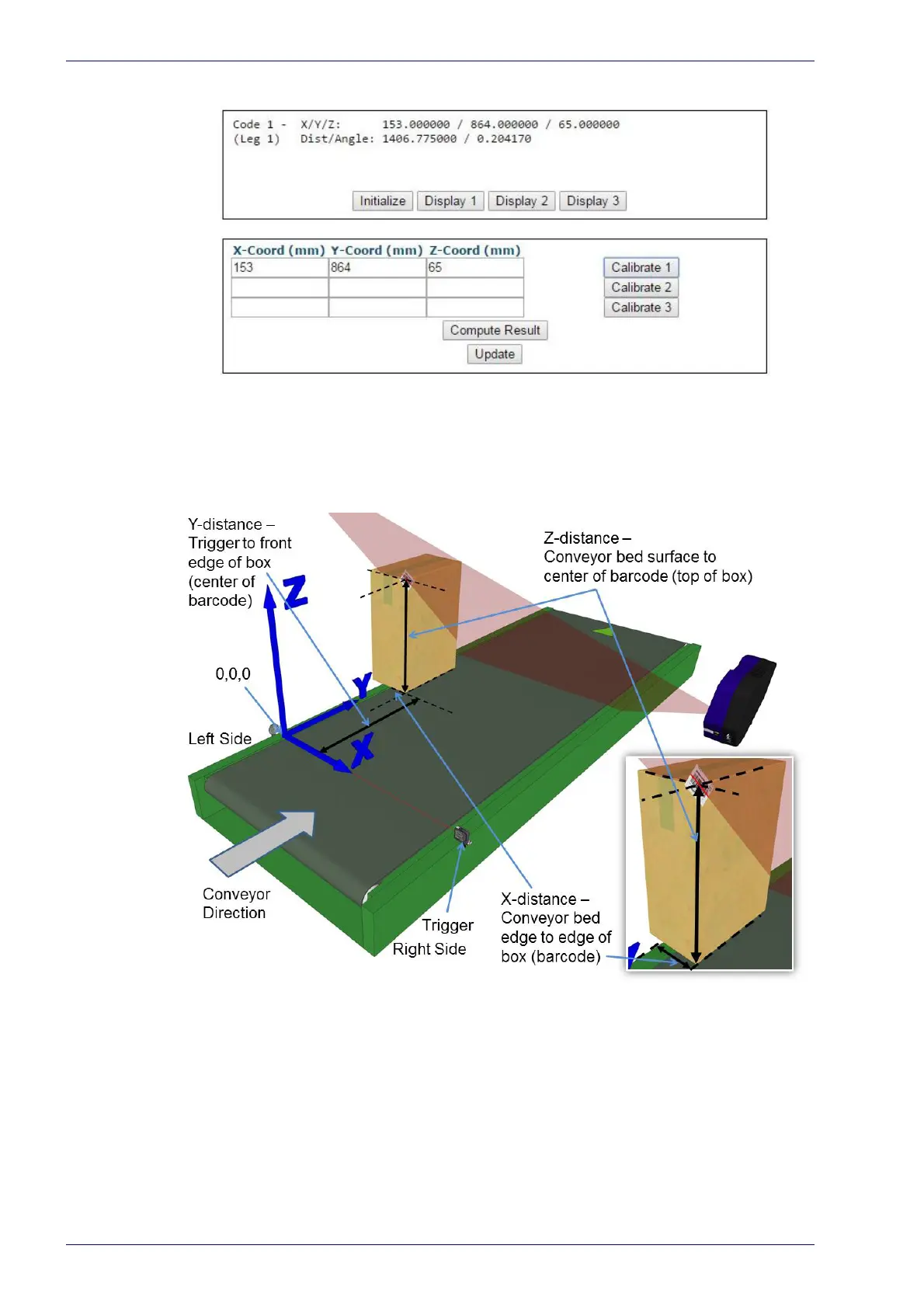

7. Next, place a barcode overhanging the top corner of the tallest box speci-
fied for your scanning system as shown in the illustration below. Place the
bo
x close to the left edge of the conveyor bed, aligning the top corner with
the laser line as shown.
8. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (right edge of box), and enter that distance in the first
box under X-Coord (mm).
Your measurements will likely differ from those shown below.
