Setup Configuring the Base Station
24
Gryphon™ I GD44XX
/
GBT4400/GM440X

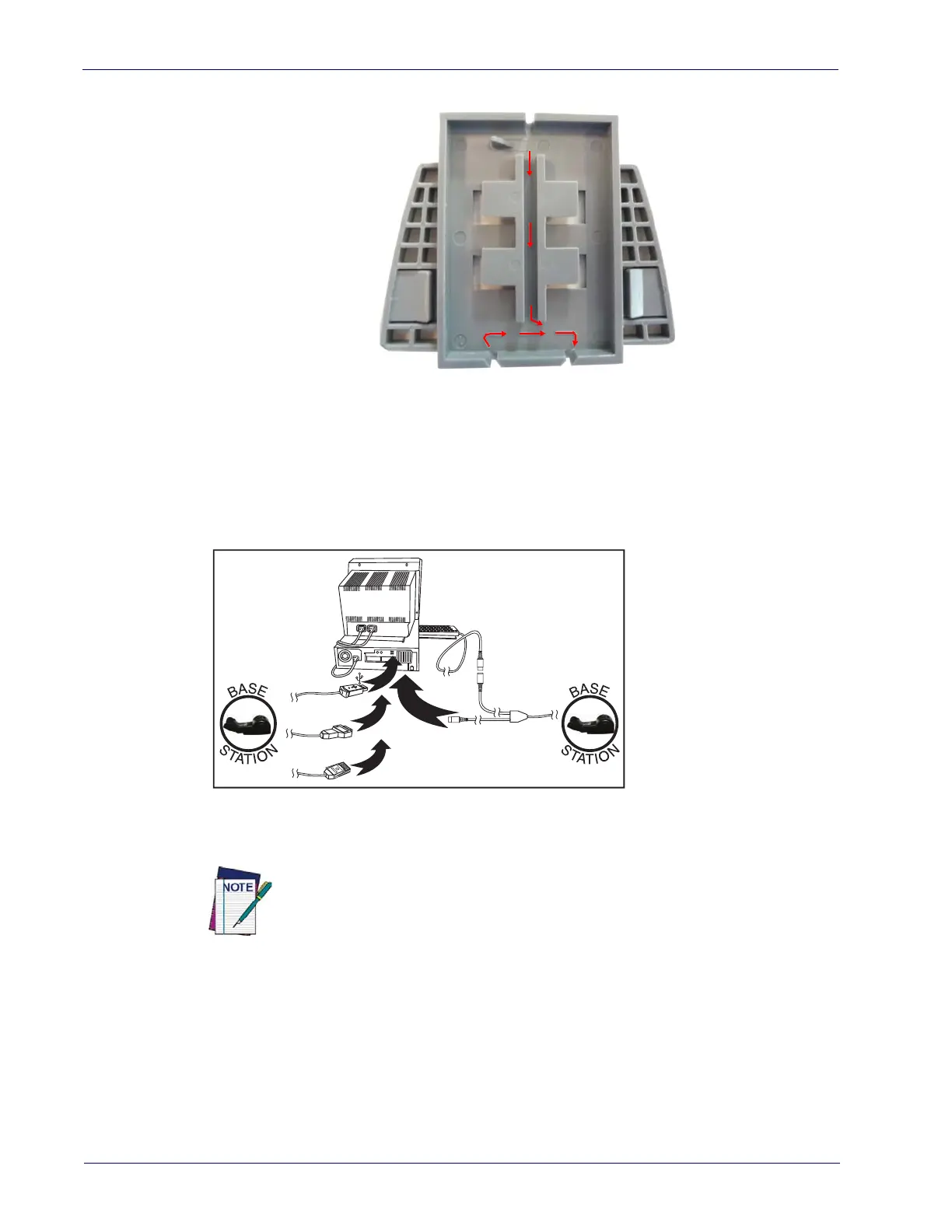

Figure 9. Arrows showing routing
Host Connection:
Verify before connection that the reader’s cable type is compatible with your
host equipment.
Most connections plug directly into the host device as shown in
Figure 10
. Keyboard Wedge
interface cables have a ‘Y’ connection where its female end mates with the male end of the cable
from the
keyboard and the remaining end at the keyboard port on the terminal/PC.
Figure 10. Connecting to the Host
Power Connection :
Plug the AC Adapter in to an approved AC wall socket with the cable
facing downwards (as shown in
Figure 7
) to prevent undue strain on the socket.
Disconnecting the Cable:
To detach the cable, insert a paper clip or similar object into the hole
on the base, as shown in
Figure 11
.
Gryphon Wireless can also be Powered by the Terminal. The external power supply is
recommended but not necessary. When powered by the Terminal, the battery charger
is automatically set as Slow charge.
