272 Gryphon™ I GD44XX / GBT4400/GM440X
Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Go to page 81 and scan the ENTER/EXIT bar code.
2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf-
fix) by scanning the appropriate bar code in the section "Label ID Control" on page 81.
Reference Figure 18 for Label ID positioning options if multiple identification features are
enabled.
3. Scan a bar code to select the symbology for which you wish to configure a custom Label
ID
from the section "Label ID Symbology Selection • 1D Symbologies" on page 82.
4. Determine the desired character(s) (y
ou may choose up to three) which will represent the
Label ID for the selected symbology.
5. Turn to the ASCII Chart on the inside back cover of this manual and find the equivalent
hex digits associated with your choice of Label ID. F
or example, if you wish to select an
equal sign (=) as a Label ID, the chart indicates its associated hex characters as 3D. Turn to
"Keypad" starting on page 317 and scan the bar codes repres
enting the hex characters
determined. For the example given, the characters ‘3’ and ‘D’ would be scanned. M
ore
examples of Label ID settings are provided in Tabl e 36.
6. Scan the ENTER/EXIT bar code to exit Label ID entry.
7. Scan the ENTER/EXIT bar code once again to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

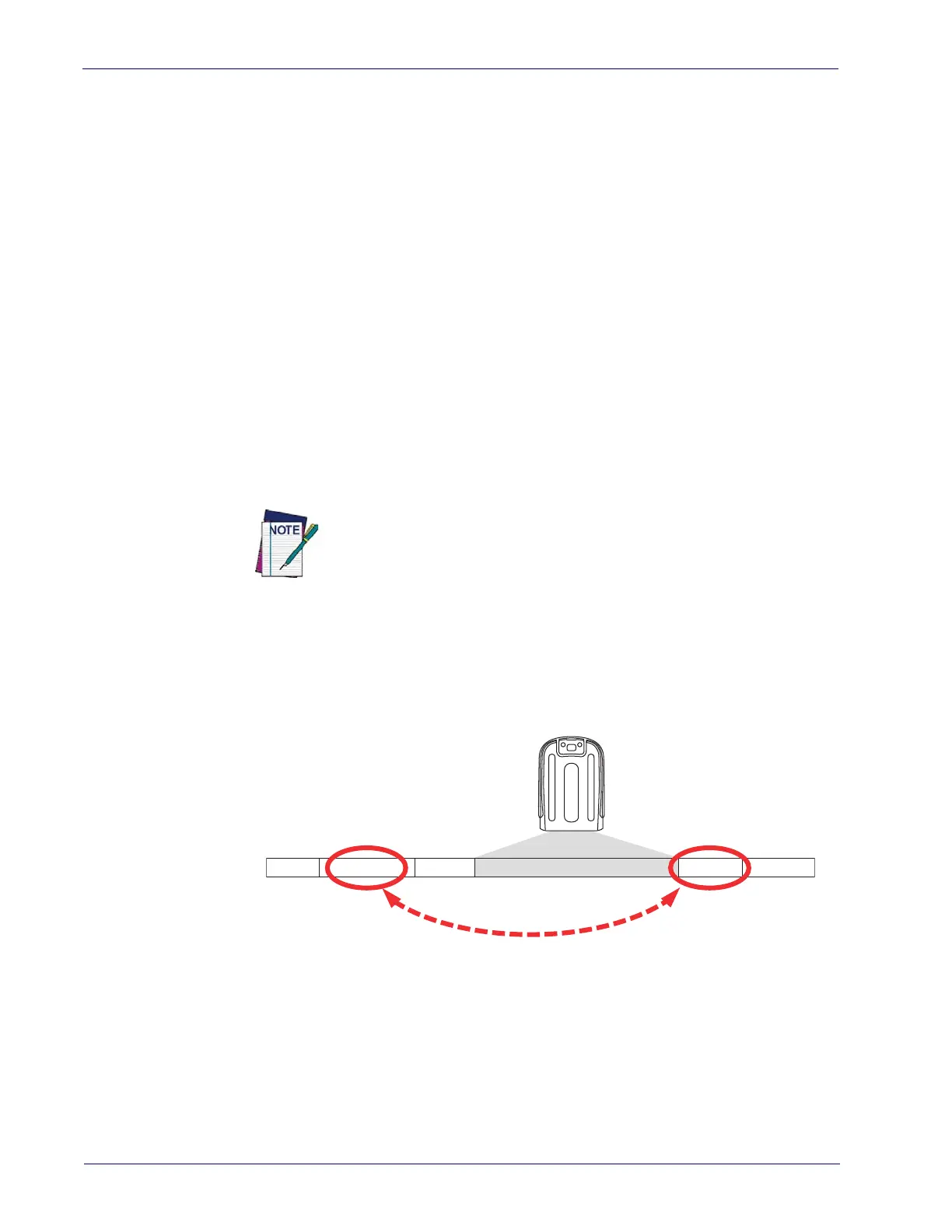

Figure 18. Label ID Position Options
If you make a mistake before the last character, scan the CANCEL bar code
to abort and not save the entry string. You can then start again at the
beginning.
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
