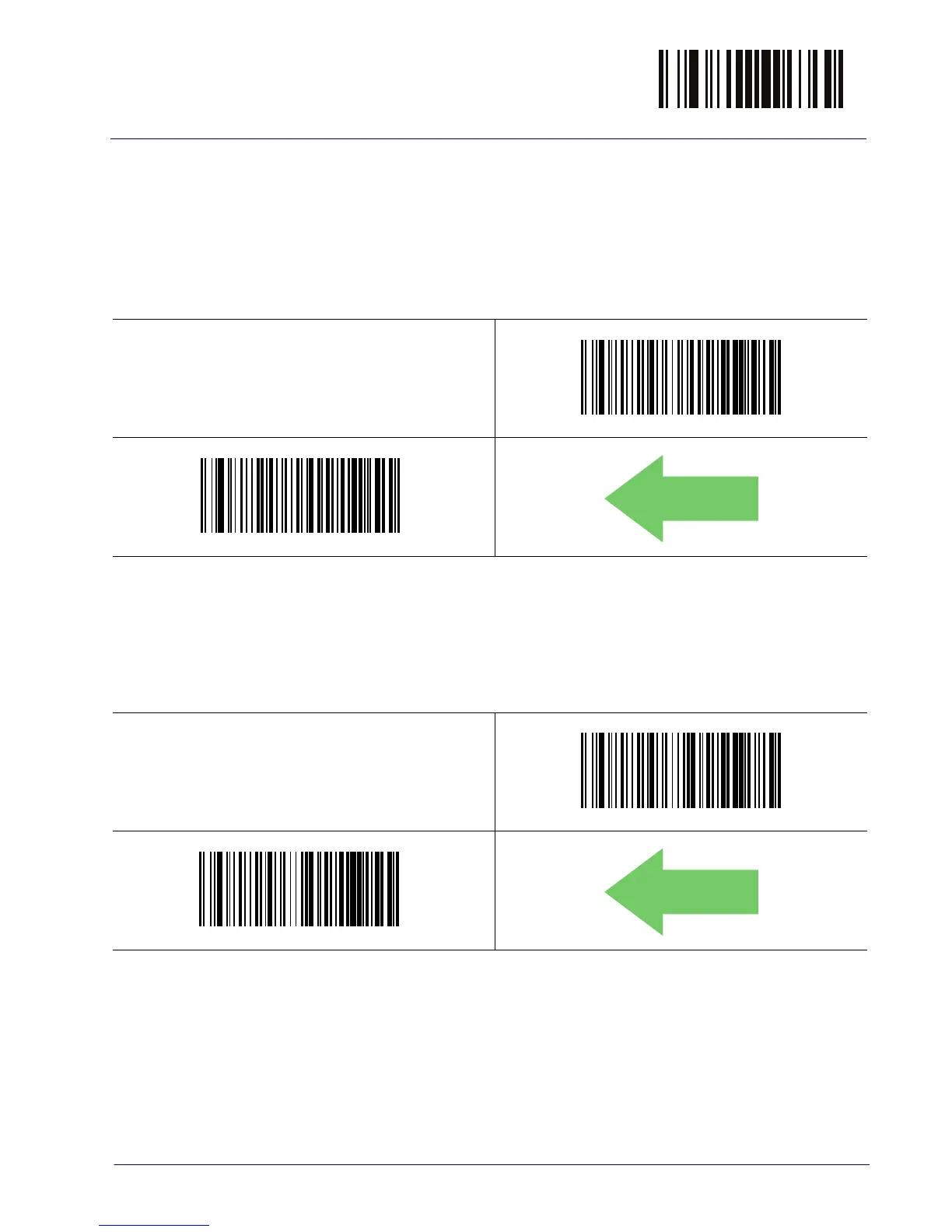

EAN 13

The following options apply to the EAN 13 (Jan 13) symbology.

EAN 13 Enable/Disable

When disabled, the scanner will not read EAN 13/JAN 13 bar codes.

EAN 13 = Disable

EAN 13 = Enable

DEFAULT

EAN 13 Check Character Transmission

Enable this option to transmit the check character along with EAN 13 bar code

data.

EAN 13 Check Character Transmission = Don’t Send

EAN 13 Check Character Transmission = Send

DEFAULT

$C3BEN00

$C3BEN01

$C3BCT00

$C3BCT01

Default Chapter3
