Enter/Exit Programming Mode Codabar

156 Heron™ HD3130

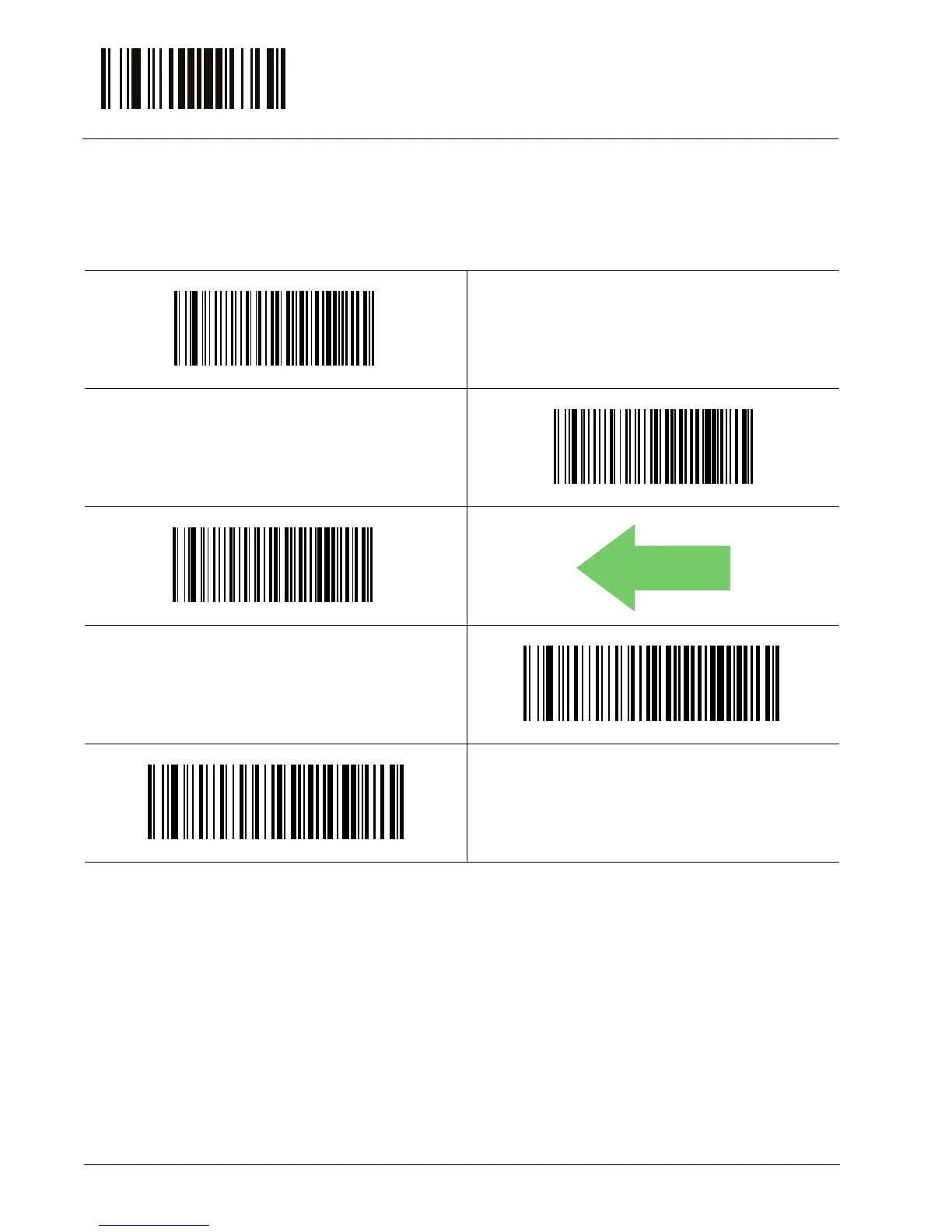

Codabar Quiet Zones

This feature specifies the number of quiet zones for Codabar labels. Quiet

zones are blank areas at the ends of a bar code and are typically 10 times the

width of the narrowest bar or space in the label.

Codabar Quiet Zones = Quiet Zone on one side

Codabar Quiet Zones = Quiet Zones on two sides

Codabar Quiet Zones = Auto

DEFAULT

Codabar Quiet Zones = Virtual Quiet Zones on two sides

Codabar Quiet Zones = Small Quiet Zones on two sides

$CCBLO01

$CCBLO02

$CCBLO03

$CCBLO04

$CCBLO05
