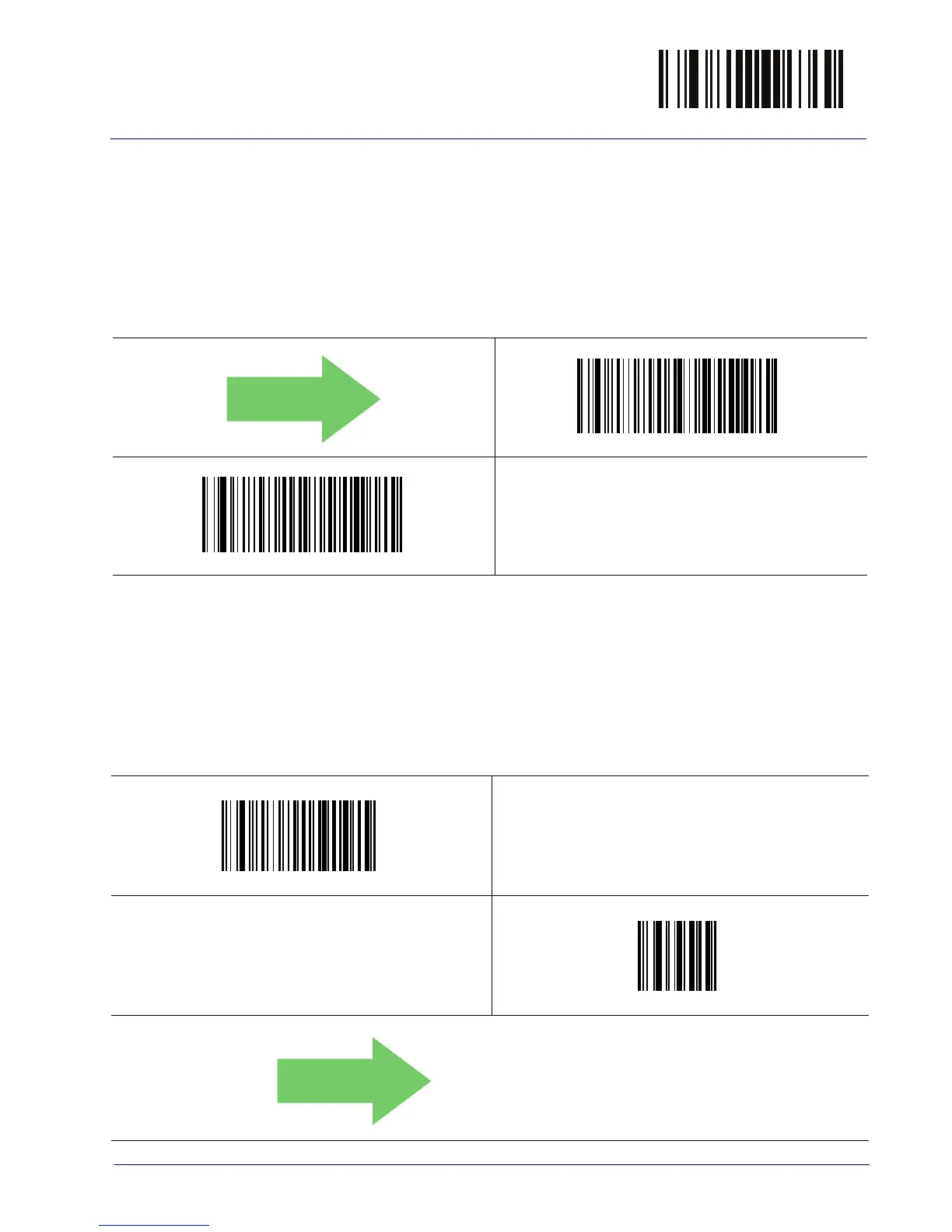

Code 11 Length Control
This feature specifies either variable length decoding or fixed length decoding
for the Code 11 symbology.
Variable Length: For variable length decoding, a minimum and maximum length
may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
DEFAULT
Code 11 Length Control = Variable Length
Code 11 Length Control = Fixed Length
Code 11 Set Length 1
This feature specifies one of the bar code lengths for Code 11 Length Control
on page 169. Length 1 is the minimum label length if in Variable Length on
page 169 Mode, or the first fixed length if in Fixed Length on page 169 Mode.
Length includes the bar code’s
c
heck and data characters.
The length can be set from 2 to 50 characters. See "Set Length 1" on page 245
for more detailed programming instructions.
Select Code 11 Set Length 1 Setting
To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save t
he entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
04 = Length 1 is 4 Characters
$CC1LC00
$CC1LC01
$CC1L1
~
