Datalogic Heron HD3100 User Manual

Symbologies Enter/Exit Programming Mode
Product Reference Guide 109

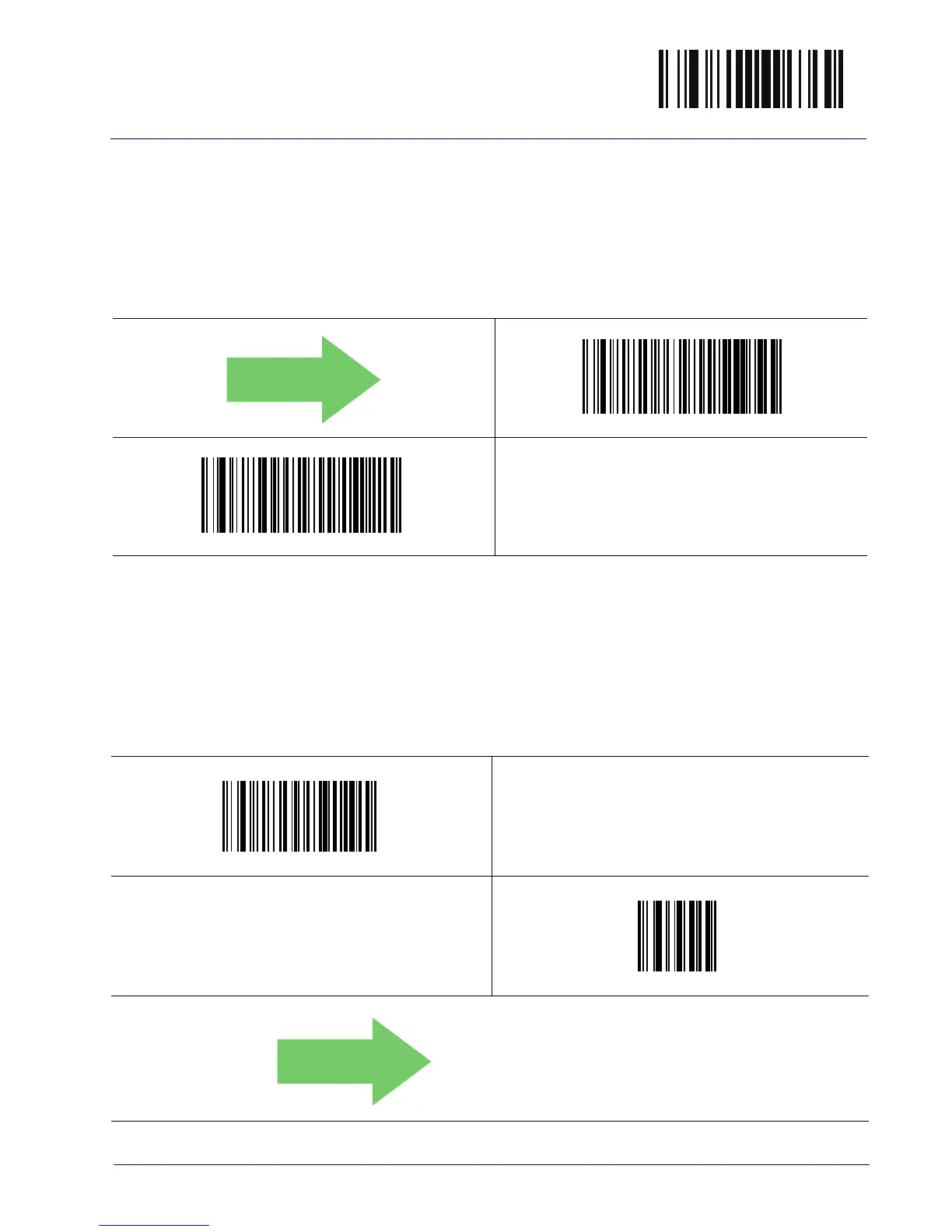

GS1 DataBar Expanded Length Control
This feature specifies either variable length decoding or fixed length decoding
for the GS1 DataBar Expanded symbology.
Variable Length: For variable-length decoding, a minimum length may be set.
Fixed Length: For fixed-length decoding, two different lengths may be set.
DEFAULT
GS1 DataBar Expanded Length Control = Variable Length
GS1 DataBar Expanded Length Control = Fixed Length
GS1 DataBar Expanded Set Length 1
This feature specifies one of the bar code lengths for GS1 DataBar Expanded
Length Control on page 109. Length 1 is the minimum label length if in Variable
Length on page 109 Mode, or the first fixed length if in Fixed Length on page
109 Mode. Length includes the bar code’s
dat
a characters only.
The length can be set from 1 to 74 characters. See "Set Length 1" on page 245
for more detailed programming instructions.
Select GS1 DataBar Expanded Set Length 1 Setting
To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save
t
he entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
01 = Length 1 is 1 Character
$CXBLC00
$CXBLC01
$CXBL1
~
