Symbologies Enter/Exit Programming Mode

Product Reference Guide

115

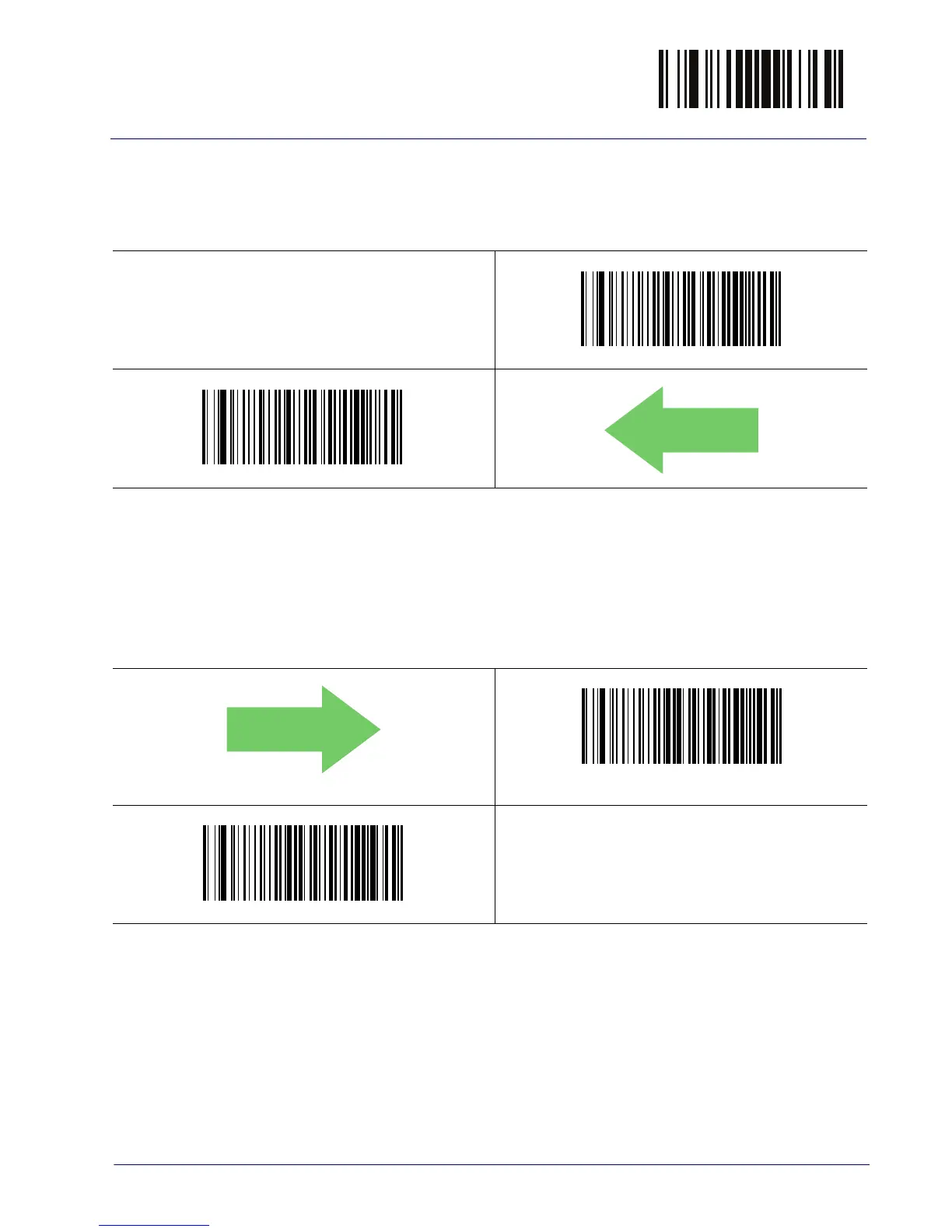

Code 39 Check Character Transmission

Enable this option to transmit the check character along with Code 39 bar code

data.

Code 39 Check Character Transmission = Don’t Send

Code 39 Check Character Transmission = Send

DEFAULT

Code 39 Start/Stop Character Transmission

Enable this option to enable/disable transmission of Code 39 start and stop

characters

DEFAULT

Code 39 Start/Stop Character Transmission = Don’t Trans-

mit

Code 39 Start/Stop Character Transmission = Transmit

$CC3CT00

$CC3CT01

$CC3SS00

$CC3SS01
