Symbologies Enter/Exit Programming Mode

Product Reference Guide

129

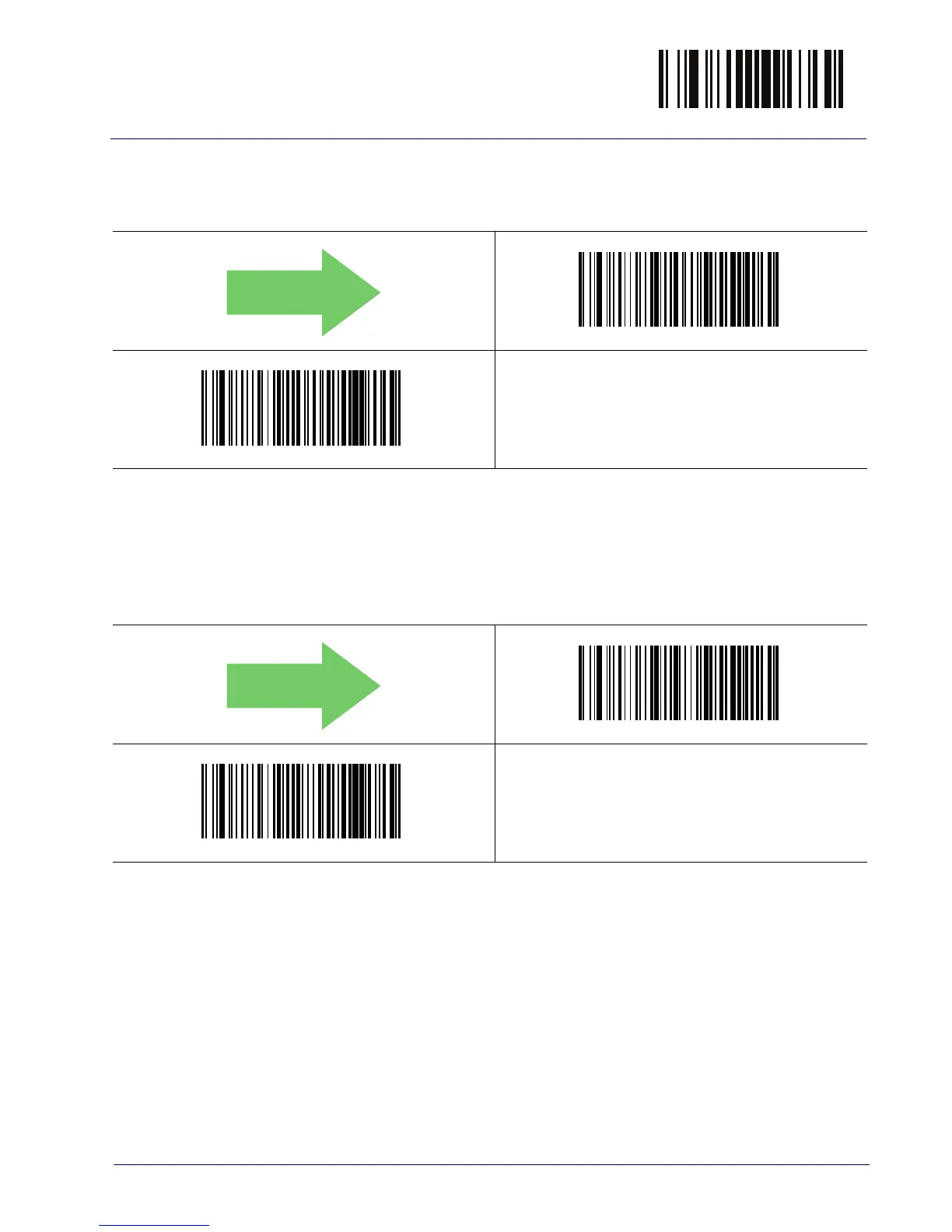

Code 128 Function Character Transmission

Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.

DEFAULT

Code 128 Function Character Transmission = Don’t Send

Code 128 Function Character Transmission = Send

Code 128 Sub-Code Change Transmission

Enables/disables the transmission of “Sub-Code exchange” characters (NOT

transmitted by standard decoding).

DEFAULT

Code 128 Sub-Code Change Transmission = Disable

Code 128 Sub-Code Change Transmission = Enable

$CC8TF00

$CC8TF01

$CC8SC00

$CC8SC01

Default Chapter3
