Datalogic Heron HD3100 User Manual

Symbologies Enter/Exit Programming Mode
Product Reference Guide 135

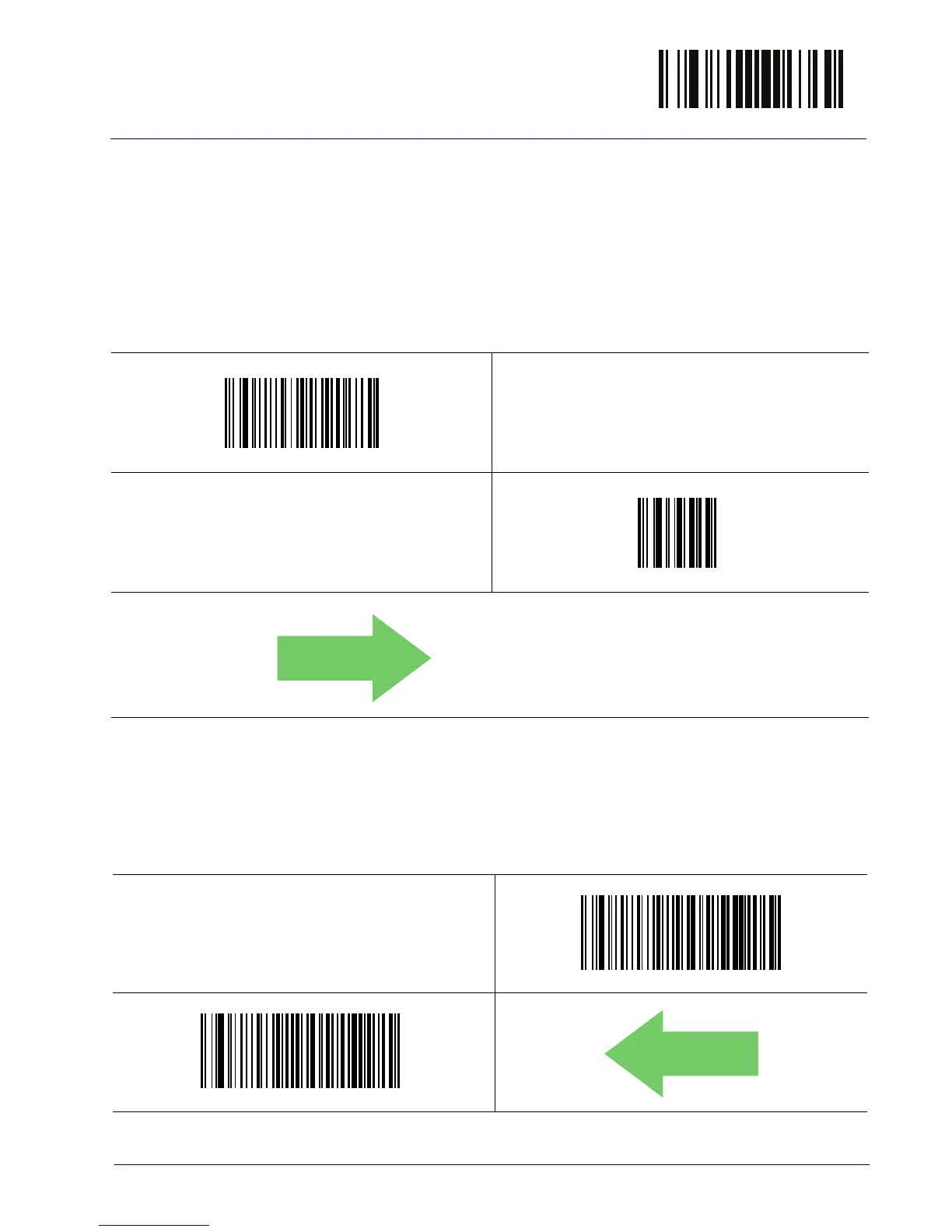

Code 128 Set Length 2
This feature specifies one of the bar code lengths for Code 128 Length Control
on page 133. Length 2 is the maximum label length if in Variable Length on
page 133 Mode, or the second fixed
length if in Fixed Length on page 133
Mode. Length includes the bar code’s data
characters only.
The length can be set from 1 to 80 characters. A setting of 00 specifies to
ignore this length (only one fixed length). See "Set Length 2" on page 24
7 for
more detailed programmi
ng instructions.
Select Code 128 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save t
he entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
80 = Length 2 is 80 Characters
Code 128 Stitching
This option enables/disables stitching for Code 128 labels. When parts of a
Code 128 bar code are presented to the scanner with this feature enabled, the
bar code parts will be assembled by the scanner’s software, and the data will be
decoded if all bar code proofing requirements are met.
Code 128 Stitching = Disable
Code 128 Stitching = Enable
DEFAULT
$CC8L2
~
$CC8ST00
$CC8ST01
