To Next Page

To Previous Page

Enter/Exit Programming Mode Codablock F

202 Heron™ HD3130

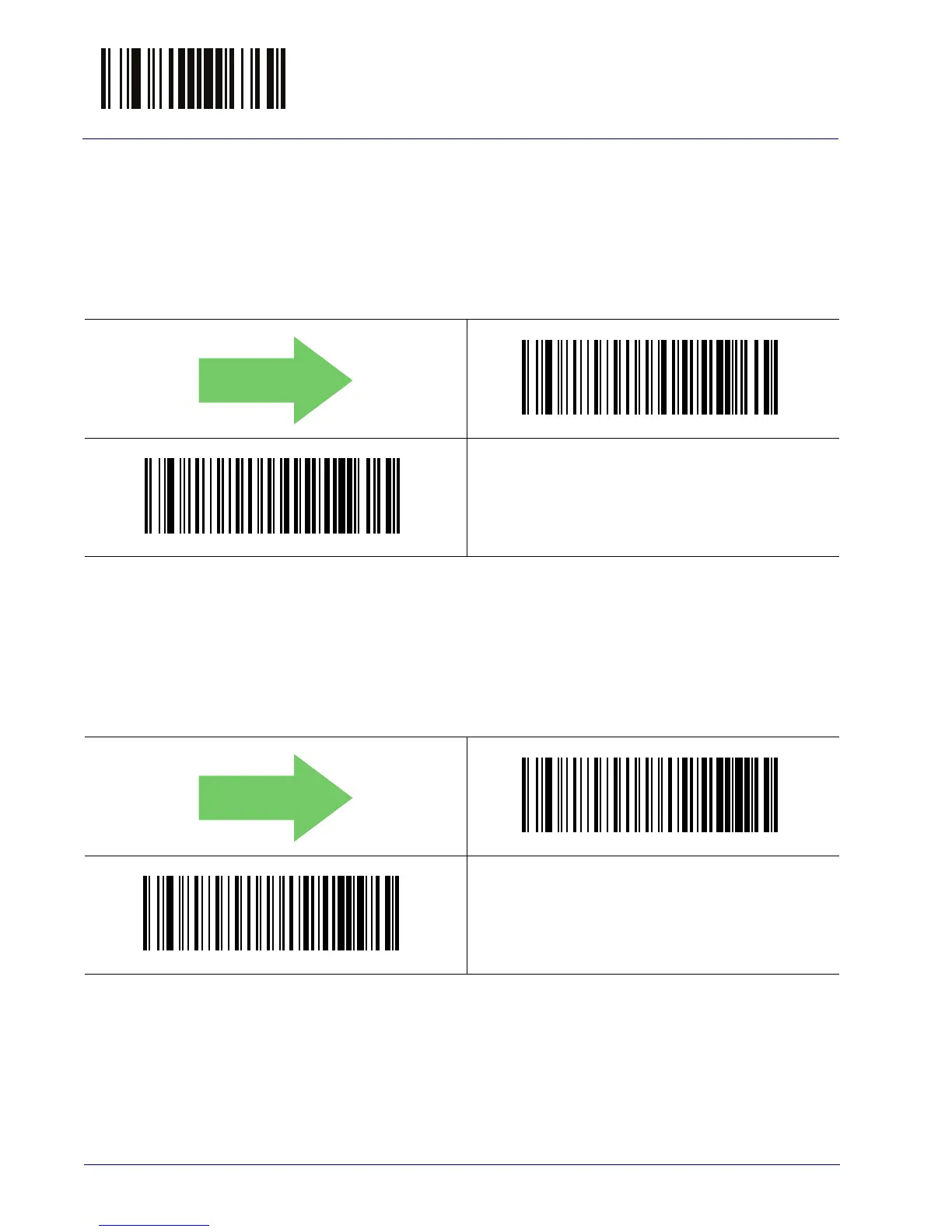

Codablock F

The following options apply to the Codablock F symbology.

Codablock F Enable/Disable

Enables/Disables the ability of the scanner to decode Codablock F labels.

DEFAULT

Codablock F = Disable

Codablock F = Enable

Codablock F EAN Enable/Disable

Enables/Disables the Codablock F EAN subtype (code with FNC1 in the first

position).

DEFAULT

Codablock F EAN = Disable

Codablock F EAN = Enable

$CCFEN00

$CCFEN01

$CCFEA00

$CCFEA01

Default Chapter3
