Enter/Exit Programming Mode Industrial 2 of 5
182 Heron™ HD3130
Industrial 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for Industrial 2 of 5 Length
Control on page 180
. Length 2 is the maximum label length if in Variable
Length on page 120
Mode, or the second fixed le
ngth if in
Fixed Length on
page 120
Mode. Length includes the bar code’s check, data, a
nd full-ASCII shift
characters. The length does not include start/stop characters.
The
length can be set from 1 to 50 characters. A setting of 00 specifies to
igno
re this length (only one fixed length). See
"Set Length 2" on page 24
7 for
more detailed programming instructions.

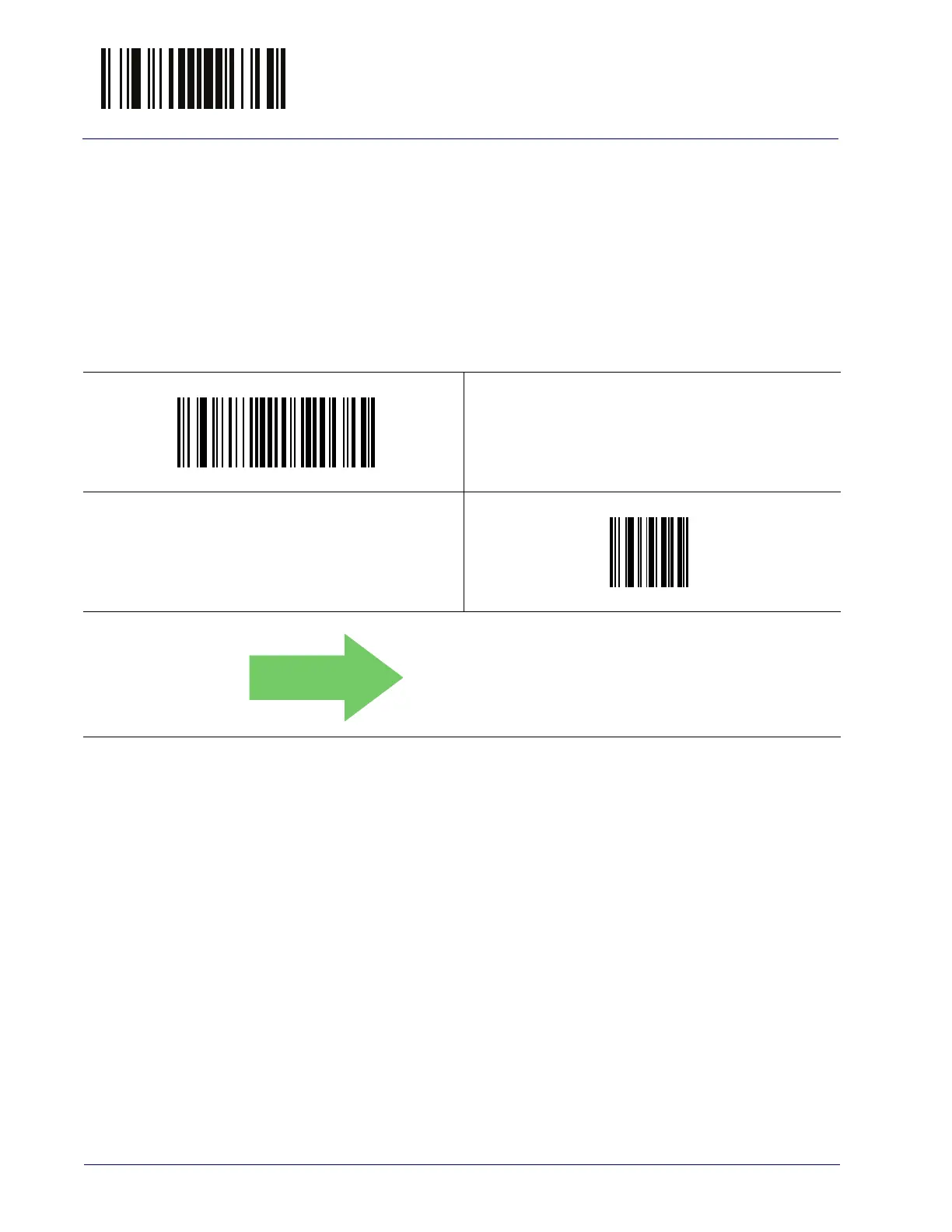

Select Industrial 2 of 5 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save t
he entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
$CU2L2
~
