Enter/Exit Programming Mode Code 128

132 Heron™ HD3130

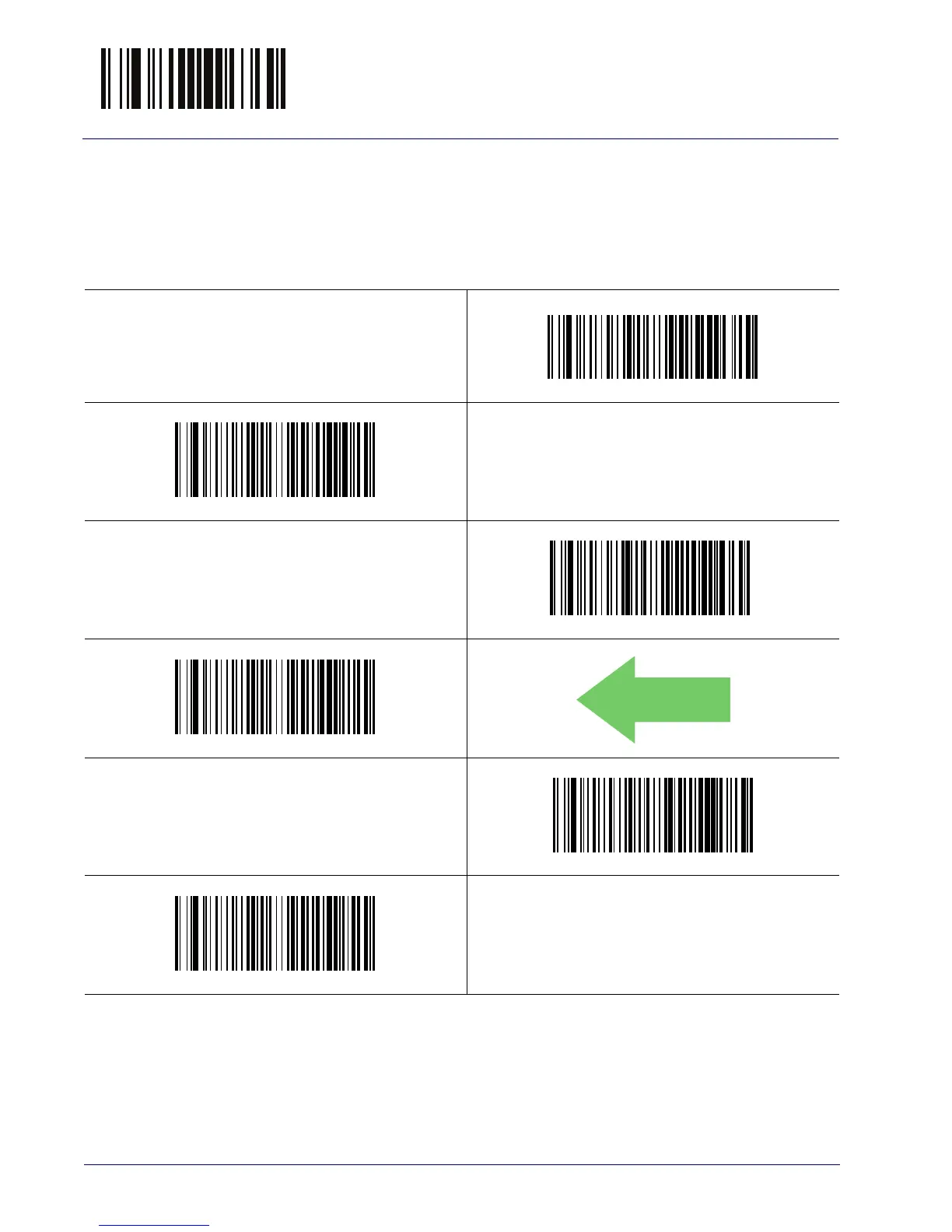

Code 128 Decoding Level

Decoding Levels are used to configure a bar code symbology decoder to be very

aggressive to very conservative depending on a particular customer’s needs.

See "Decoding Levels" on page 245 for more detai

led programming instruc-

tions.

Code 128 Decoding Level = Disabled

Code 128 Decoding Level = 1

Code 128 Decoding Level = 2

Code 128 Decoding Level = 3

DEFAULT

Code 128 Decoding Level = 4

Code 128 Decoding Level = 5

$CC8DL00

$CC8DL01

$CC8DL02

$CC8DL03

$CC8DL04

$CC8DL05

Default Chapter3
