Setup
8 Heron™ HD3130
Stand Installation
The stand can be affixed to a flat
surface such as a desk or countertop.
If needed, it can also be easily
removed.
To install the stand:
1. Remove the protective film from
the rubber feet and ad
he
re them
to the corresponding recessed
areas on the bottom surface of
the stand.
2. Turn to "
Stand Base Plate Tem-
plate" on page 256
. Place the
mask at the desired position of
the stand base
on the desk.

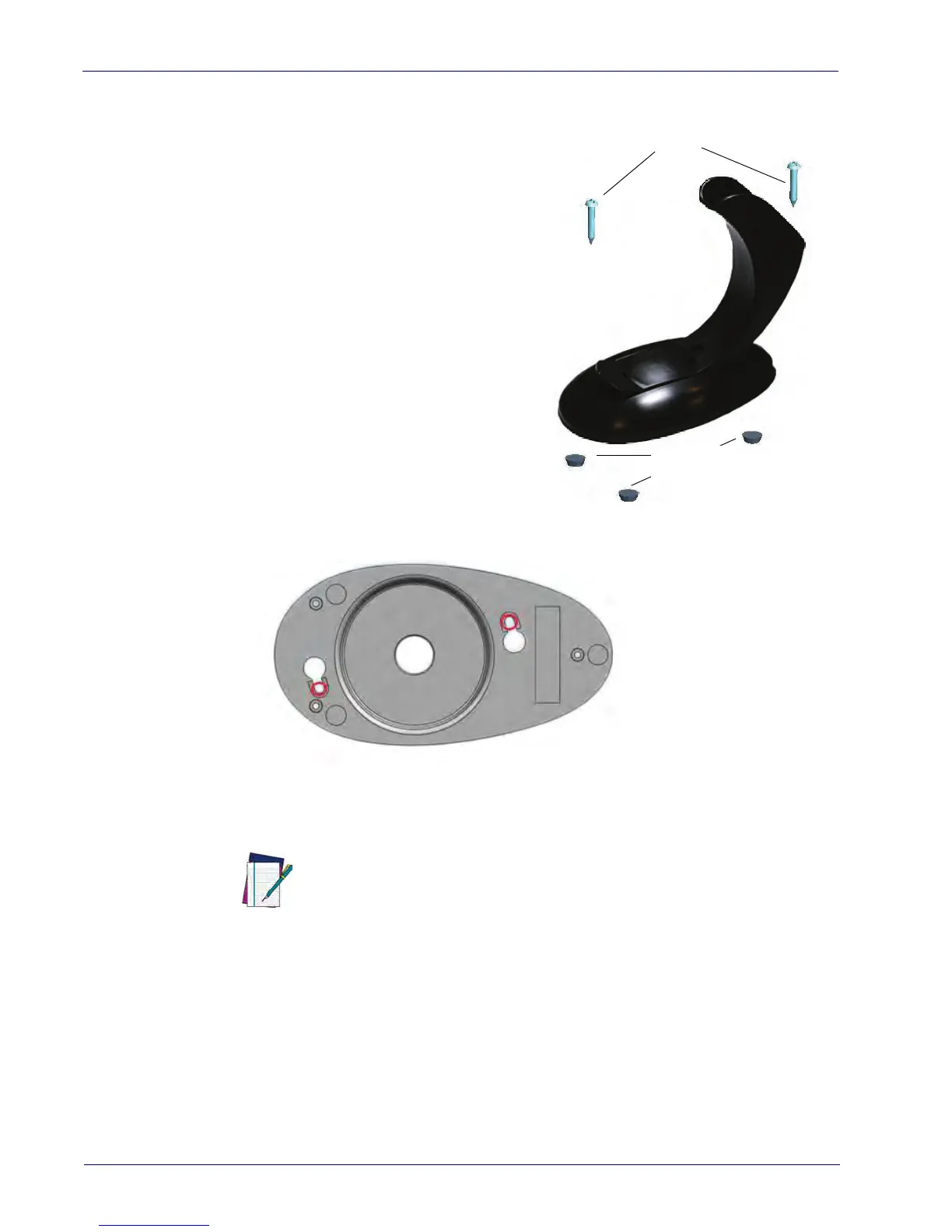

3. Use a pen to mark the location of the small holes (shown in red) on the
desk surface. Remove the mask before installing the screws.
4. Screw the 2 wood screws into the desk, centering in the marked holes.
Leave about 4-5 mm of the screw protruding from the upper surface of
the desk.
NOTE
It is recommended to use two n.2 wood screws ISO 7050, diameter. 3.5
mm, length 16 mm or equivalent. On hard surfaces, an electric screwdriver
can be used for easier installation of the screws.
