Chapter 4 Connect the Front End
108 Storage Center SC8000 Controller Deployment Guide

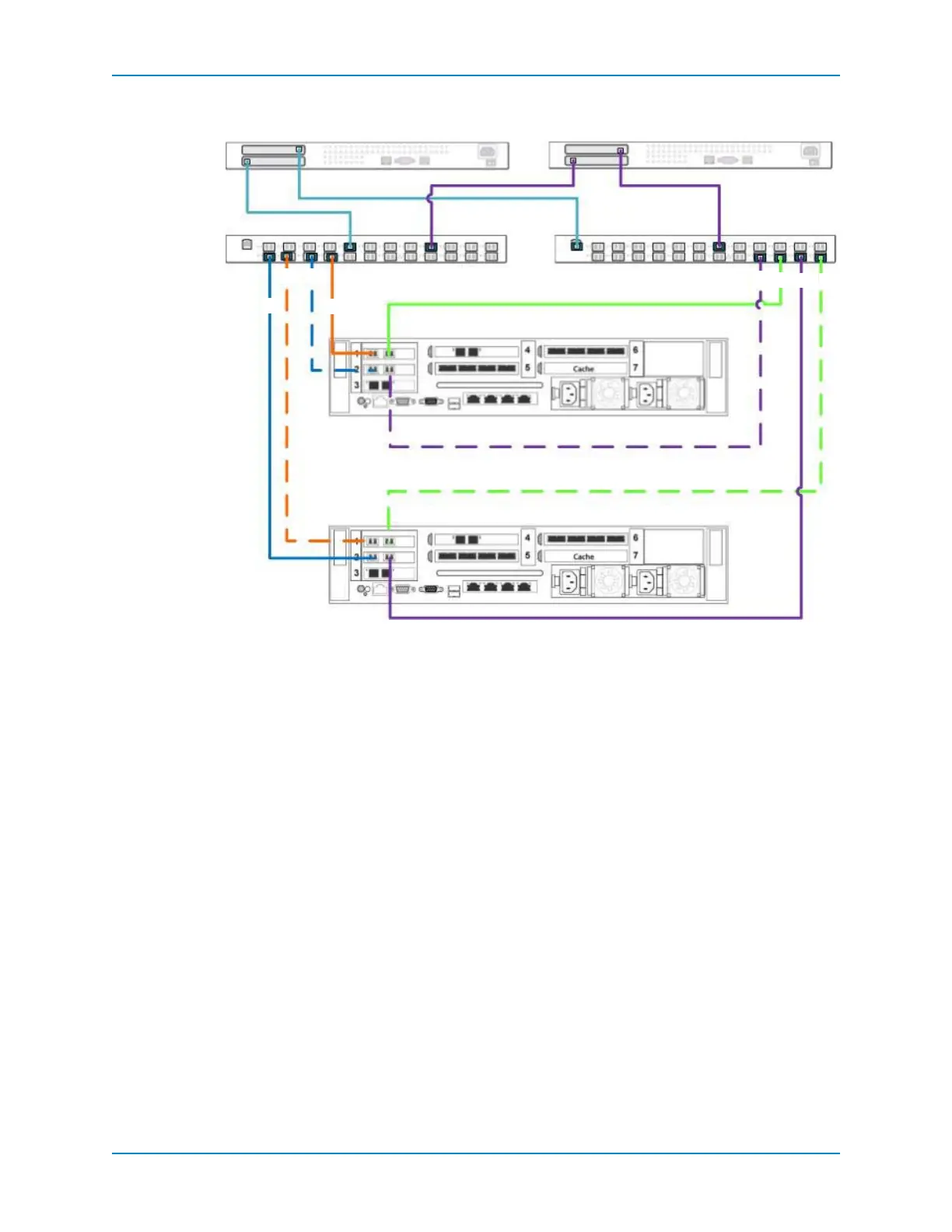

Figure 93. Dual-controller with Dual-Fabric FC in Legacy Mode
See Also
FibreChannelZoningonpage 10 2
Virtual Port Mode with Single-Fabric Fibre Channel
ConnectvirtualportmodeFibreChanneltoasinglefabricifonlyoneFCisavailableand
youwanttoprotectagainstportorcontrollerfailure.
Inthisconfiguration,thereisonefaultdomainbecausethereisasingleFCfabric.Each
controllerisconnectedtothefabricbyatleast
twoFCconnectionstoprovideport
redundancy.Ifasingleportfails,itsvirtualportfailsovertoanotherport.Ifacontroller
fails,thevirtualportsonthefailedcontrollermovetoportsontheothercontroller.This
configurationisvulnerabletoswitchfailure.
Prerequisites
 EachcontrollermusthavetwoavailableFCfront‐endports.
 Therequirementsforvirtualportmodemustbemet.
Steps
1 ConnecteachservertotheFCfabric.
2 Connectfaultdomain1(showninorange)tofabric1.
 ControllerA,slot1,port1→Fabric1
 ControllerA,slot2,port1→Fabric1
 ControllerB,slot1,port1→Fabric1
R4
P1
R2
P3
P2
R1
P4
R3
Controller A
Fabric 1
Server 1
Controller B
Server 2
Fabric 2
1 2
1 2
