Adding SC200/220 Enclosures
Dell Compellent 187

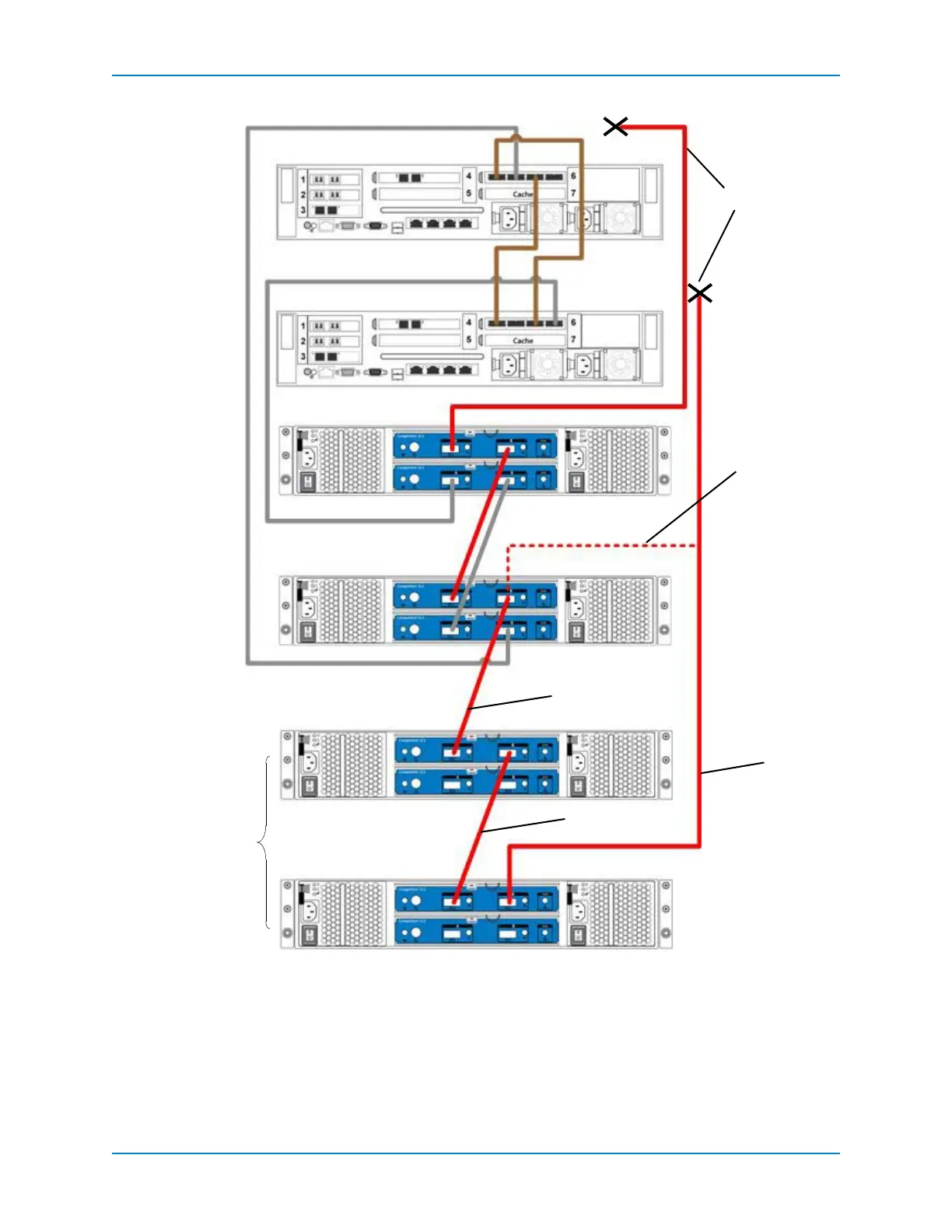

Figure 118. Connect SC200/220 Enclosures to A side
5 ReconnecttheA‐sideControllercables:
a Enclosure4:top,portB→ControllerB:slot6,port3.
b Enclosure1:top,portA→ControllerA,slot6,port1.
Enclosure 1
Enclosure 2
Enclosure 3
Enclosure 4
Controller A
Controller B
Disconnect A side
New Enclosures
Connect
Enclosures
(A side)
Move Cable from
Enclosure 2
Add cable
Add cable
