Chapter 3 Connect the Back End
82 Storage Center SC8000 Controller Deployment Guide

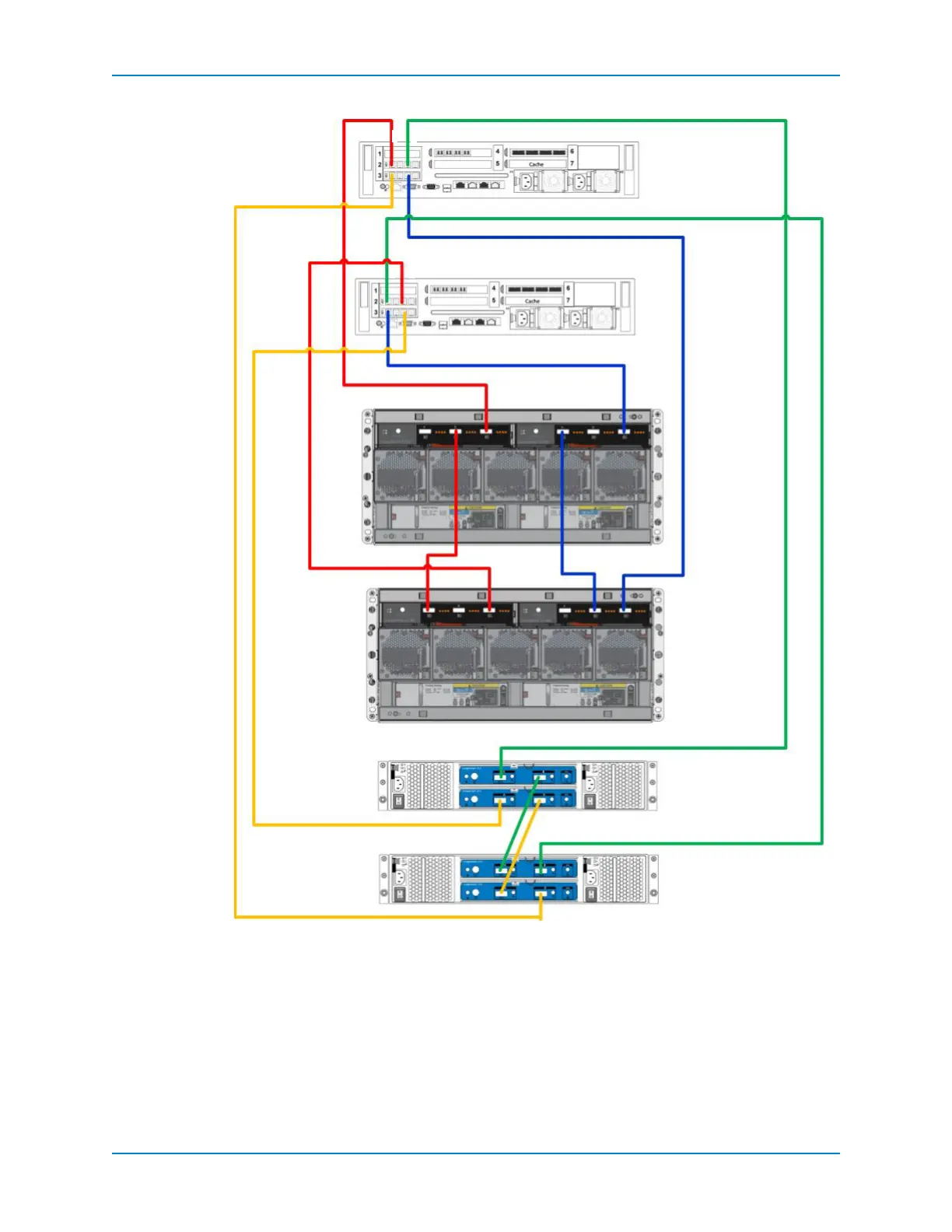

Figure 77. Dual SC8000 Controllers, Mixed Enclosures, Two Chains
Enclosure 1
Enclosure 2
Enclosure 3
Enclosure 4
Controller B
Controller A
1342
13
42
4 3 21
4 3 21
