(7) Check the brake pedal travel. If pedal travel is
excessive or has not been improved, some air may
still be trapped in the system. Rebleed the brakes as
necessary.
(8) Test drive the vehicle to verify the brakes are
operating properly and pedal feel is correct.
SPECIFICATIONS
BRAKE ACTUATION SYSTEM
ACTUATION:
Vacuum Operated
Power Brakes
Standard
Hydraulic System Dual-Diagonally Split
BRAKE PEDAL:
Pedal Ratio 3.41
POWER BRAKE BOOSTER:
Make/Type Bosch/Vacuum
Mounting Studs M8 x 1.25
Diaphragm Size/Type 205 mm Tandem
MASTER CYLINDER ASSEMBLY:
Type Dual Tandem
Body Material Anodized Aluminum
Reservoir Material Polypropelene
MASTER CYLINDER BORE STROKE AND SPLIT:
Non ABS 22.23 mm x 34.0 mm
(0.875 in. x 1.34 in.)
ABS 23.82 mm x 34.0 mm
(0.937 in. x 1.34 in.)
Displacement Split 50 / 50
MASTER CYLINDER FLUID OUTLET PORTS:
Tube Fitting Type SAE 45° Inverted Flare
W/ABS - Primary Tube
Nut Thread
7/16 in.–24
W/ABS - Secondary
Tube Nut Thread
3/8 in.–24
W/O ABS - All Tube
Nut Threads
7/16 in.–24
ABS HYDRAULIC CONTROL UNIT:
Hydraulic Tube Fitting
Type
SAE 45° Inverted Flare
All Tube Nut Threads 7/16 in.–24
PROPORTIONING VALVE:
Material Aluminum
Function Hydraulic Pressure
Proportioning
BRAKE FASTENER TORQUE
DESCRIPTION TORQUE
BRAKE TUBES:
Tube Nuts 17 N·m (145 in. lbs.)
MASTER CYLINDER:
Mounting Nuts 18 N·m (160 in. lbs.)
POWER BRAKE BOOSTER:
Mounting Nuts 34 N·m (300 in. lbs.)
DISC BRAKE CALIPER:
Caliper Banjo Bolt 48 N·m (35 ft. lbs.)
Guide Pin Bolts 22 N·m (192 in. lbs.)
Bleeder Screw 15 N·m (125 in. lbs.)
WHEEL CYLINDER (REAR):
Mounting Bolts 13 N·m (115 in. lbs.)
Bleeder Screw 10 N·m (80 in. lbs.)
DRUM BRAKE SHOE SUPPORT PLATE (REAR):
Mounting Bolts 75 N·m (55 ft. lbs.)
DISC BRAKE ADAPTER (REAR):
Mounting Bolts 75 N·m (55 ft. lbs.)
HUB AND BEARING (REAR):
Retaining Nut 217 N·m (160 ft. lbs.)
PARKING BRAKE:
Lever Mounting Nuts 28 N·m (250 in. lbs.)

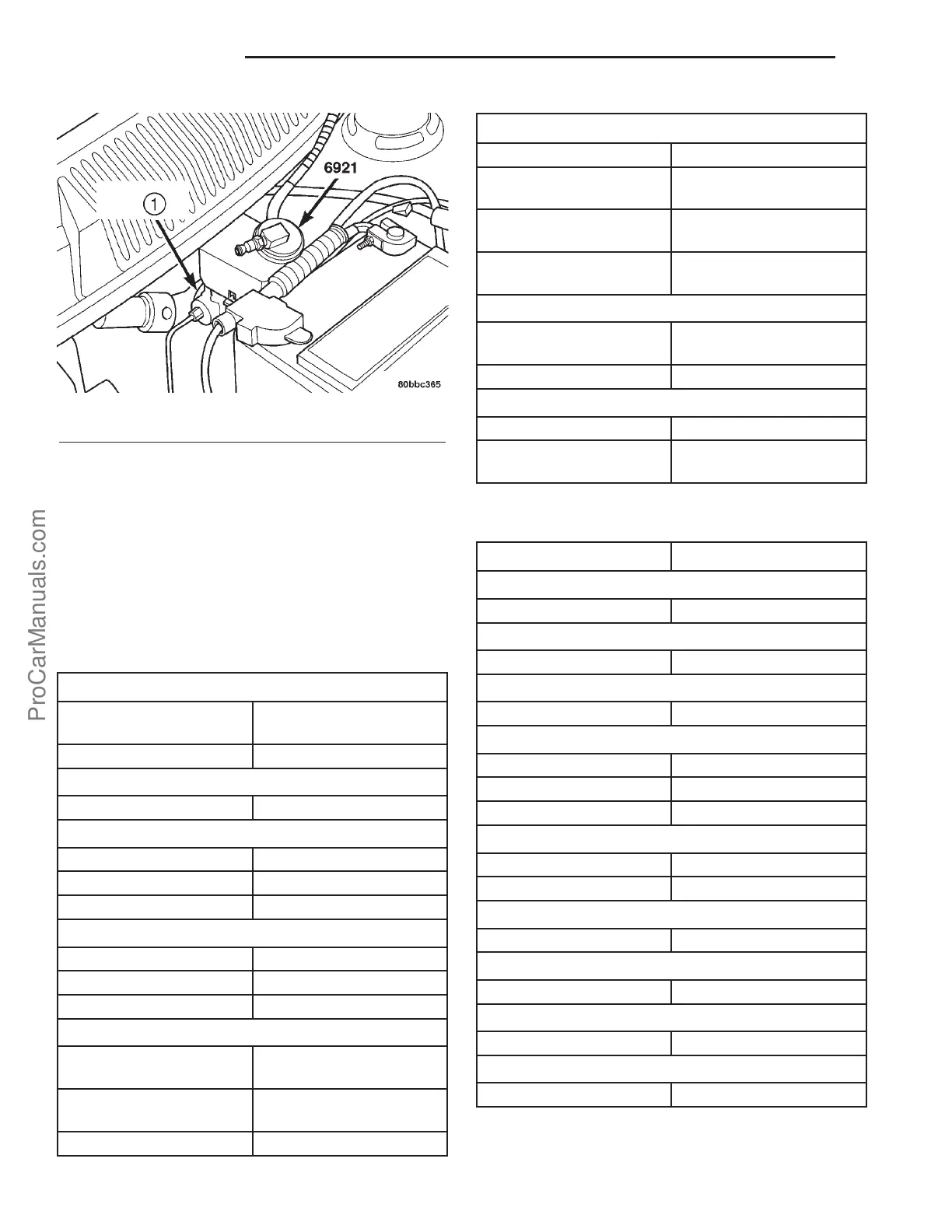

Fig. 2 Special Tool 6921
1 - MASTER CYLINDER
5s - 6 BRAKES-BASE PL
BRAKES-BASE (Continued)
