ADJUSTMENTS – SUNROOF GLASS
FLUSHNESS
(1) Position sunshade in full rearward position.
Place the glass panel in the full closed position.
(2) To adjust front of glass;
(a) Loosen front and middle glass attachment
screws.
(b) Adjust front of sunroof glass panel so that
the corners are flush to 1.0 mm below the top sur-
face of the roof panel.
(c) Tighten all glass attachment screws.
(3) To adjust rear of glass;
(a) Loosen rear and middle glass attachment
screws.
(b) Adjust rear of sunroof glass panel so that the
corners are flush to plus 1.0 mm off the top surface
of the roof panel.
(c) Tighten all glass attachment screws.
CENTERING SUNROOF GLASS ADJUSTMENT
Using a business card, check sunroof glass for cen-
ter in opening (Fig. 5). Move business card around
the glass seal, noting area where there is less pres-
sure on the card. Loosen glass attaching screws
adjust as necessary.
SUNSHADE
REMOVAL
(1) Open sunroof glass panel to the vent position.
(2) Through the glass panel opening, disengage the
two rear slide blocks of sunshade from sunshade
guide (Fig. 1).
(3) Slide the sunshade rearward to have access to
the two front slide blocks of sunshade and disengage
sunshade from sunshade guide.
(4) Lift sunshade out of sunshade guide.
INSTALLATION
(1) Place sunshade with cloth side down and
install one side’s slide blocks into the track on the
sunshade guide.
(2) Slide the other side’s slide blocks to fully
inward position and insert them into the sunshade
guide.
(3) Verify that all four slide blocks are fully
engaged in the sunshade guide.
(4) Slide sunshade fully rearward and forward to
verify operation..

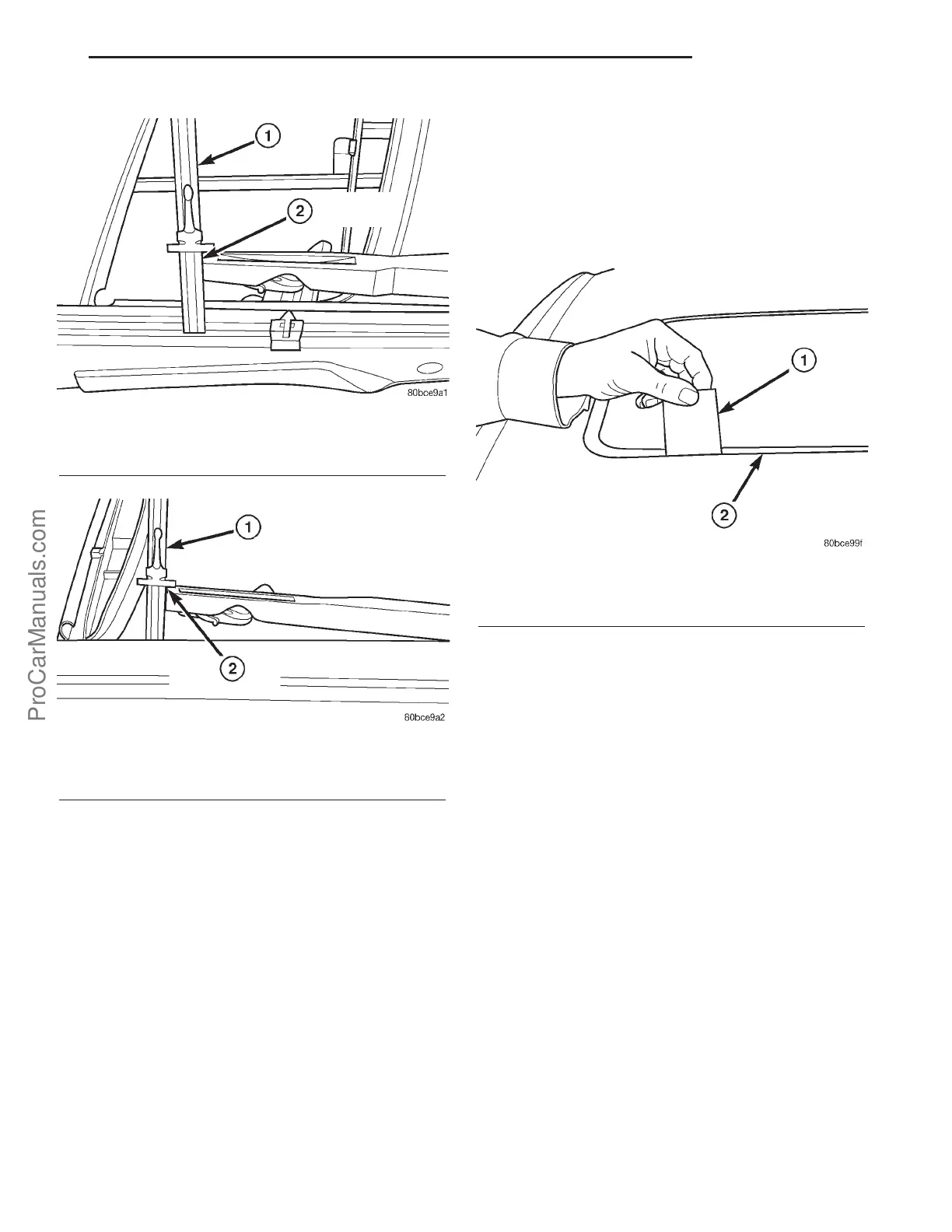

Fig. 3 MEASURING HEIGHT - OUT OF VEHICLE
1 - RULE
2 - REAR END OF MECHANISM
Fig. 4 MEASURING HEIGHT - IN VEHICLE
1 - RULE
2 - REAR END OF MECHANISM
Fig. 5 INSERT BUSINESS CARD
1 - BUSINESS CARD
2 - SEALING SURFACE
PL SUNROOF 23s - 19
GLASS PANEL (Continued)
