Dodge Neon 2001 - INSTALLATION

(15) Make sure Manual Valve control pin is con-
tained within the rooster comb slot (Fig. 348). Install
Transmission Range Sensor retaining screw (Fig.
348) and torque to 5 N·m (45 in. lbs.).
(16) Install manual shaft seal (Fig. 349).
INSTALLATION
NOTE: If valve body assembly is being replaced or
reconditioned, it is necessary to perform the TCM
Quick Learn Procedure. (Refer to 8 - ELECTRICAL/
ELECTRONIC CONTROL MODULES/TRANSMISSION
CONTROL MODULE - STANDARD PROCEDURE)
(1) Install valve body assembly to transaxle (Fig.
350). Install and torque valve body-to-transaxle case
bolts (Fig. 351) to 12 N·m (105 in. lbs.).

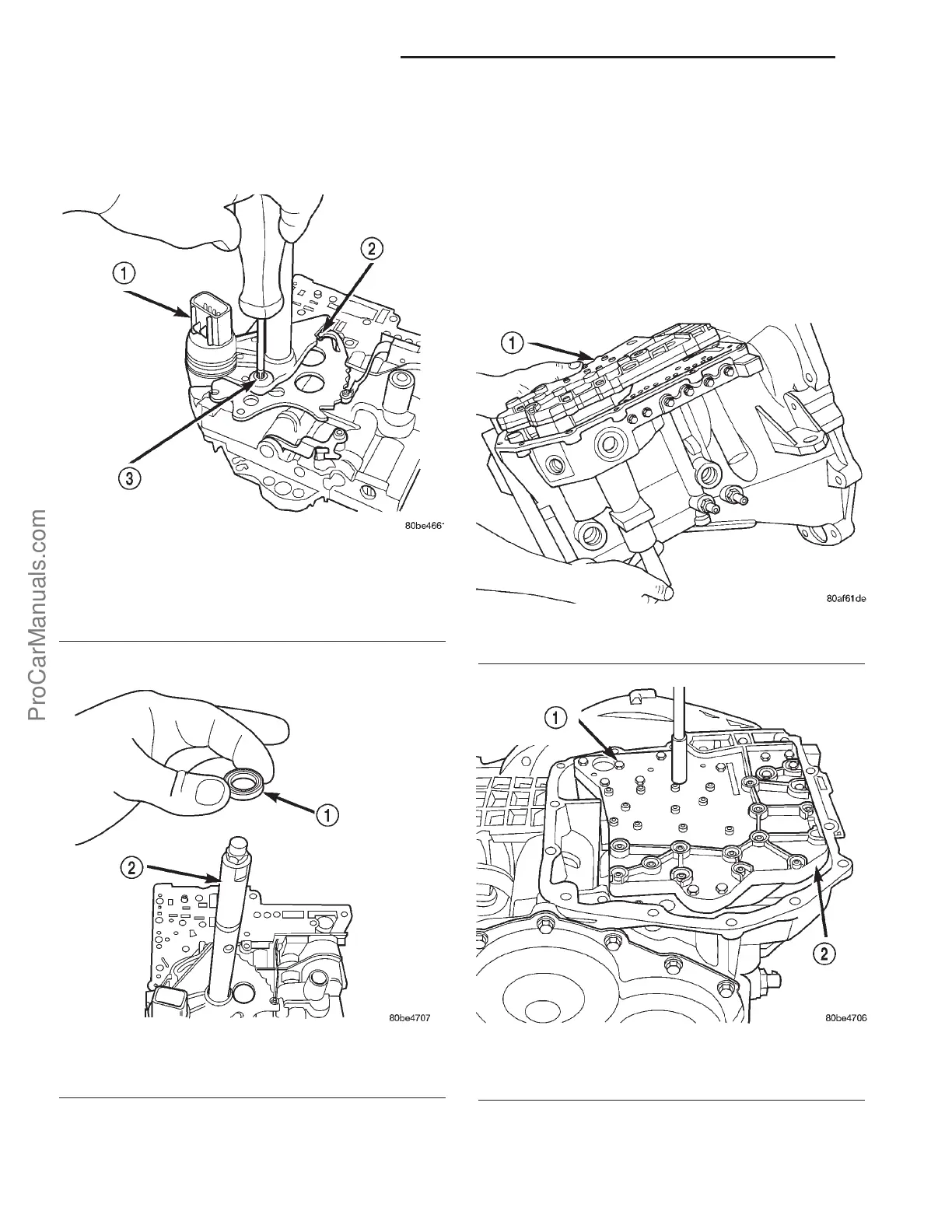

Fig. 348 Install Transmission Range Sensor
Retaining Screw
1 - TRANSMISSION RANGE SENSOR
2 - MANUAL VALVE CONTROL PIN
3 - RETAINING SCREW
Fig. 349 Manual Shaft Seal
1 - SEAL
2 - MANUAL SHAFT
Fig. 350 Valve Body Removal/Installation
1 - VALVE BODY
Fig. 351 Valve Body Attaching Bolts
1 - VALVE BODY ATTACHING BOLTS (18)
2 - VALVE BODY
21s - 204 41TE AUTOMATIC TRANSAXLE PL
VALVE BODY (Continued)
