(8) Remove oil pan (Fig. 314).
(9) Remove oil filter (Fig. 315).
(10) Remove the valve body-to-transaxle case bolts
(Fig. 316).
NOTE: To ease removal of the valve body, turn the
manual valve lever fully clockwise to low or first
gear.
(11) Remove park rod rollers from guide bracket
and remove valve body from transaxle (Fig. 317) (Fig.
318).
CAUTION: The valve body manual shaft pilot may
distort and bind the manual valve if the valve body
is mishandled or dropped.

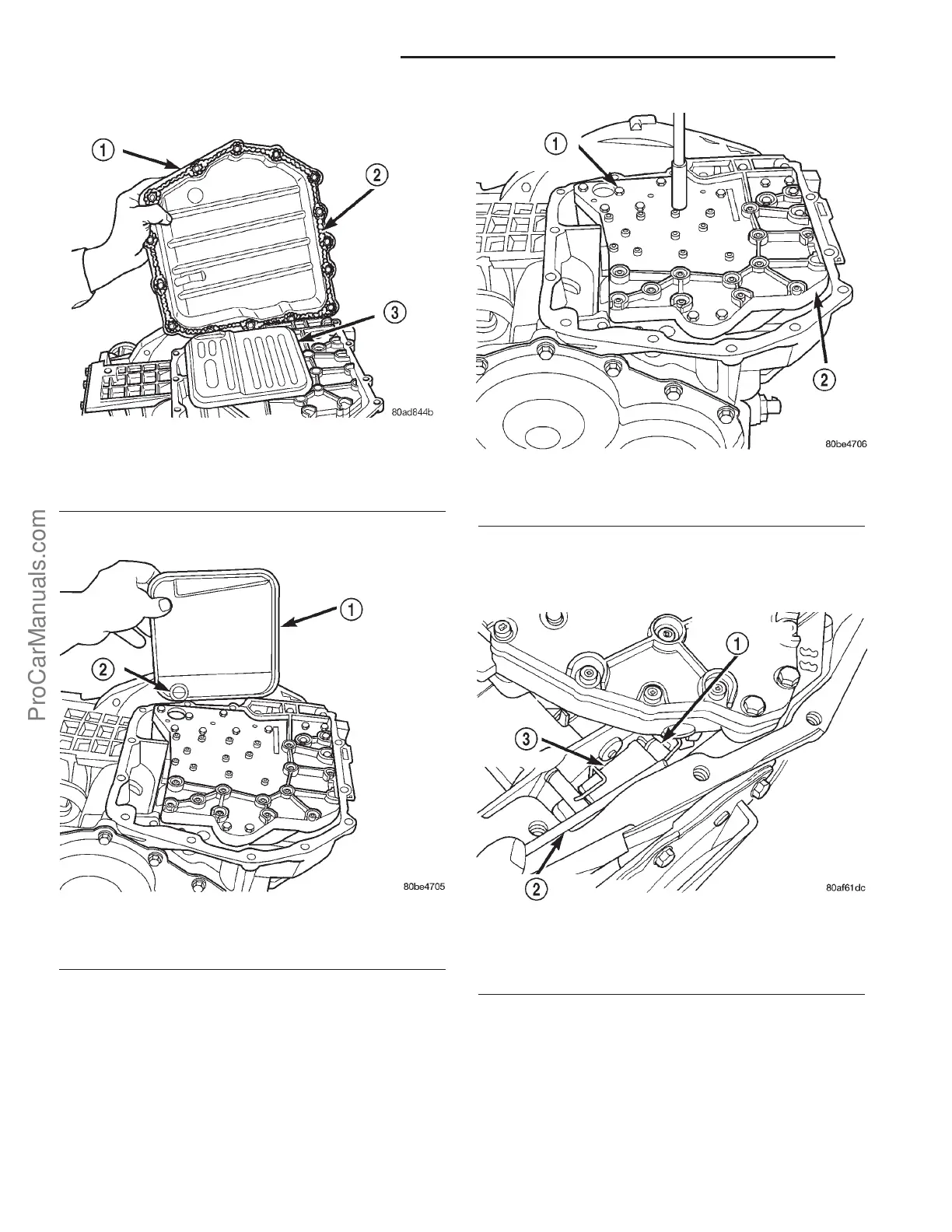

Fig. 314 Oil Pan
1 - OIL PAN
2 - 1/8 INCH BEAD OF RTV SEALANT
3 - OIL FILTER
Fig. 315 Oil Filter
1 - OIL FILTER
2 - O-RING
Fig. 316 Valve Body Attaching Bolts
1 - VALVE BODY ATTACHING BOLTS (18)
2 - VALVE BODY
Fig. 317 Push Park Rod Rollers from Guide Bracket
1 - PARK SPRAG ROLLERS
2 - SCREWDRIVER
3 - PARK SPRAG GUIDE BRACKET
21s - 194 41TE AUTOMATIC TRANSAXLE PL
VALVE BODY (Continued)
