• Remove the parking brake cable from the rear
brake support plate. The parking brake cable can be
removed from brake support plate using a ½ inch box
wrench to compress the locking fingers on the park-
ing brake cable retainer (Fig. 33).
(18) To remove the rear parking brake cable from
the disc brake adapter on vehicles equipped with
rear disc brakes:
• Remove the parking brake actuating lever from
the parking brake cable (Fig. 34).
• Remove the parking brake cable from the rear
disc brake adapter. The parking brake cable can be
removed from the disc brake adapter using a ½ inch
offset box wrench to compress the locking fingers on
the parking brake cable retainer (Fig. 35).
(19) Remove the nuts, then the parking brake
cable routing bracket from the tension strut mount-
ing bolts.
(20) Remove the parking brake cable and sealing
grommet from floor pan of the vehicle.

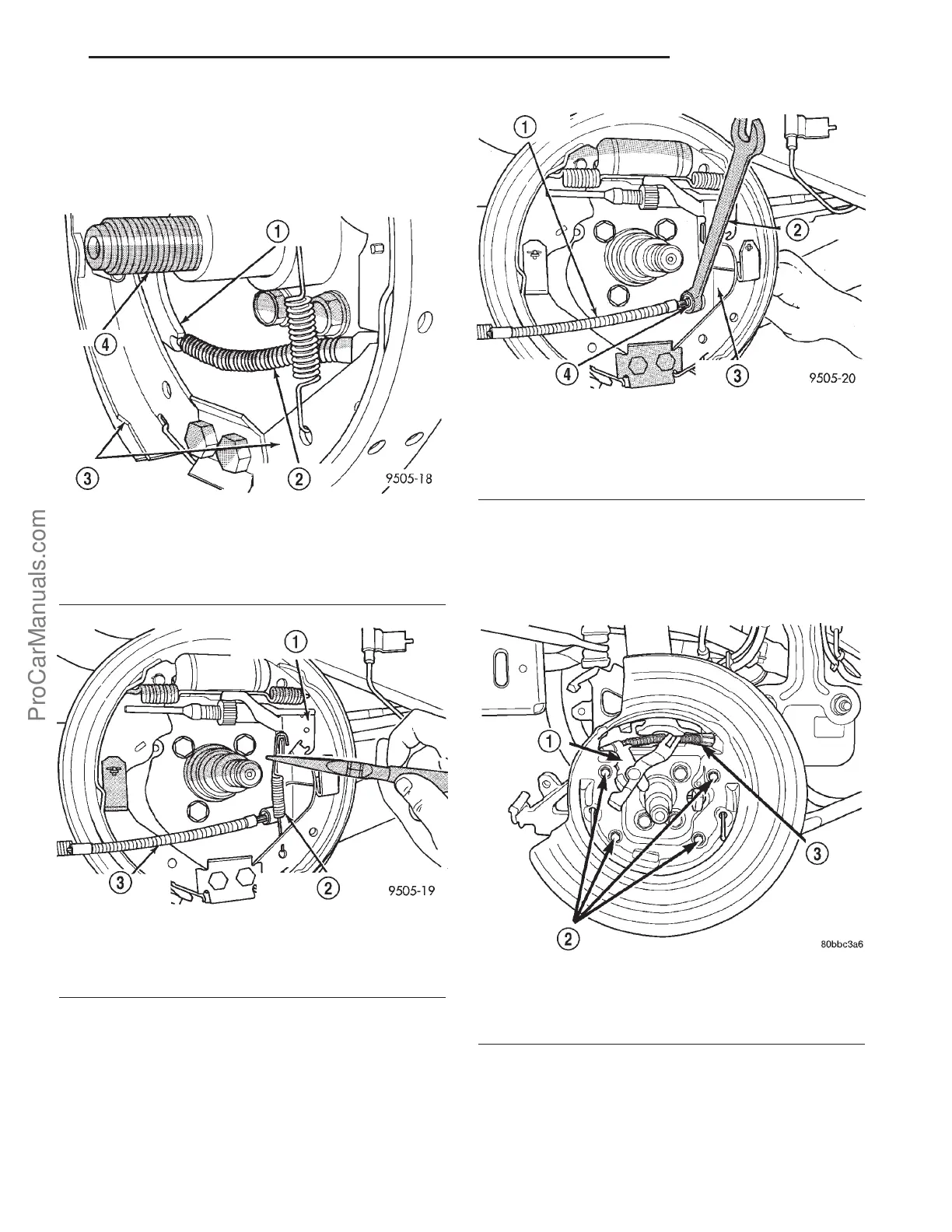

Fig. 31 Actuator Lever
1 - PARK BRAKE ACTUATING LEVER
2 - PARK BRAKE CABLE
3 - BRAKE SHOE ASSEMBLIES
4 - REAR SPINDLE
Fig. 32 Actuating Spring
1 - BRAKE SHOE ADJUSTMENT LEVER
2 - ADJUSTMENT LEVER ACTUATING SPRING
3 - PARK BRAKE CABLE
Fig. 33 Parking Brake Cable Removal
1 - PARK BRAKE CABLE
2 - 1/2'' WRENCH
3 - REAR BRAKE SUPPORT PLATE
4 - PARK BRAKE CABLE RETAINER
Fig. 34 Parking Brake Actuator Lever
1 - SHOE ACTUATOR LEVER
2 - SHIELD MOUNTING SCREWS
3 - REAR PARKING BRAKE CABLE
PL BRAKES-BASE 5s - 23
CABLES-PARKING BRAKE (Continued)
