(10) Raise the vehicle. (Refer to LUBRICATION &
MAINTENANCE/HOISTING - STANDARD PROCE-
DURE).
(11) Remove the rear tire and wheel assembly
from the vehicle (Refer to 22 - TIRES/WHEELS -
REMOVAL).
(12) On vehicles equipped with rear drum brakes,
remove the brake drum. (Refer to 5 - BRAKES/HY-
DRAULIC/MECHANICAL/DRUM - REMOVAL).
(13) On vehicles equipped with rear disc brakes:
• Remove the disc brake caliper guide pin bolts,
then the caliper from disc brake adapter (Fig. 29).
• Hang the caliper out of the way using a wire
hanger or cord.
• Remove the brake rotor from the rear hub and
bearing.
(14) Remove the dust cap from the rear hub and
bearing.
(15) Remove the hub and bearing retaining nut
from the knuckle spindle, then remove the hub and
bearing (Fig. 29).
(16) On vehicles equipped with rear disc brakes,
remove the upper return spring, both shoe hold-down
clips, then spread the rear parking brake shoes apart
at the top enough to clear the shoe anchor and
remove the parking brake shoes as an assembly from
the disc brake adapter (Fig. 30).
(17) To remove the rear parking brake cable from
the brake support plate on vehicles equipped with
rear drum brakes:
• Remove the parking brake cable from the park-
ing brake actuating lever (Fig. 31).
• Remove the actuating spring between the brake
shoe adjustment lever and the brake shoe (Fig. 32).

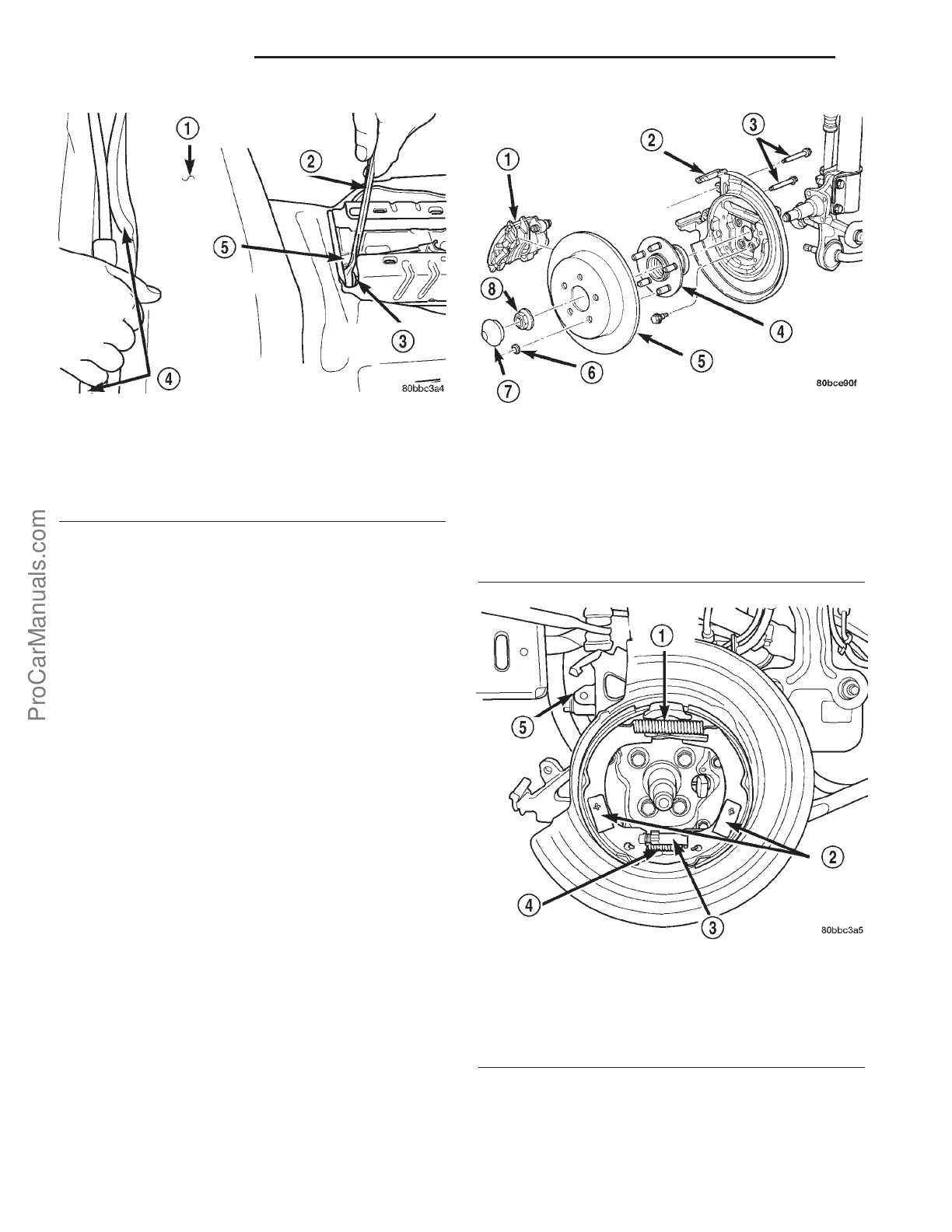

Fig. 28 Compressing Cable Retainer
1 - CARPET ROLLED FORWARD
2 - WRENCH
3 - RIGHT REAR CABLE
4 - REAR PARKING BRAKE CABLES
5 - LEFT REAR CABLE
Fig. 29 Rear Disc Brakes
1 - DISC BRAKE CALIPER
2 - DISC BRAKE ADAPTER
3 - GUIDE PIN BOLTS
4 - HUB AND BEARING
5 - BRAKE ROTOR
6 - RETAINER CLIP
7 - DUST CAP
8 - NUT
Fig. 30 Parking Brake Shoes
1 - UPPER RETURN SPRING
2 - SHOE HOLD DOWN CLIPS
3 - ADJUSTER
4 - LOWER REAR SPRING
5 - DISC BRAKE ADAPTER
5s - 22 BRAKES-BASE PL
CABLES-PARKING BRAKE (Continued)
