(4) Using hammer and suitable punch, remove pin-
ion shaft retaining pin (Fig. 17) (Fig. 18).
(5) Remove pinion shaft (Fig. 19).
(6) Remove pinion gears, side gears, and thrust
washers (Fig. 20) (Fig. 21).

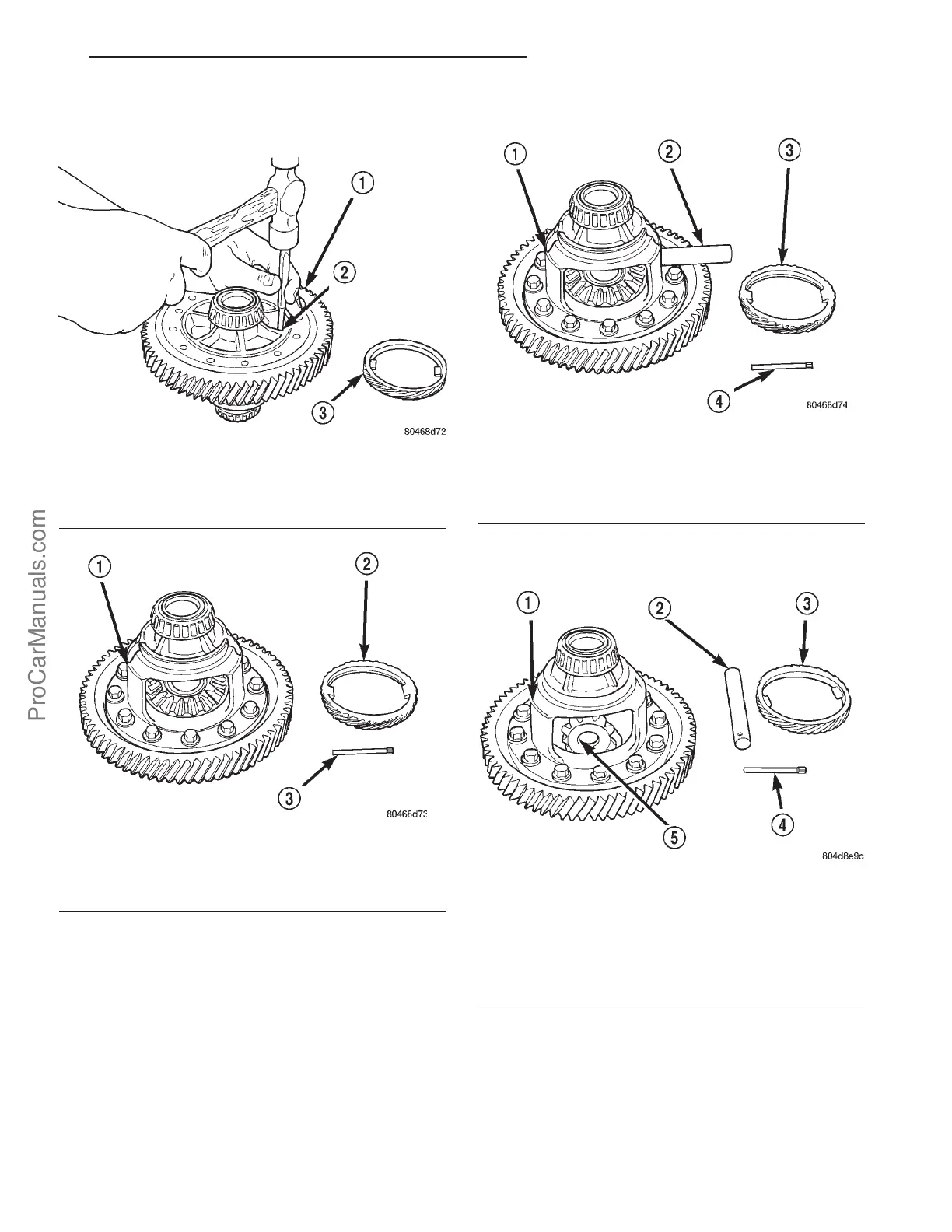

Fig. 17 Remove Pinion Shaft Retaining Pin
1 - RING GEAR
2 - PINION SHAFT RETAINING PIN
3 - SPEEDOMETER DRIVE GEAR
Fig. 18 Retaining Pin Removed
1 - DIFFERENTIAL ASSEMBLY
2 - SPEEDOMETER DRIVE GEAR
3 - PINION SHAFT RETAINING PIN
Fig. 19 Pinion Shaft Removal
1 - DIFFERENTIAL ASSEMBLY
2 - PINION SHAFT
3 - SPEEDOMETER DRIVE GEAR
4 - PINION SHAFT RETAINING PIN
Fig. 20 Remove Pinion Gears, Side Gears, and
Thrust Washers
1 - DIFFERENTIAL ASSEMBLY
2 - PINION SHAFT
3 - SPEEDOMETER DRIVE GEAR
4 - PINION SHAFT RETAINING PIN
5 - PINION GEAR (2)
PL A578 MANUAL TRANSMISSION 21s - 11
