Dodge Neon 2001 - ACCESSORY DRIVE; DRIVE BELTS; REMOVAL; POWER STEERING PUMP AND AIR CONDITIONING COMPRESSOR BELT

ACCESSORY DRIVE
TABLE OF CONTENTS
page page
DRIVE BELTS
REMOVAL ...............................3 INSTALLATION............................3
DRIVE BELTS
REMOVAL
POWER STEERING PUMP AND AIR CONDITIONING
COMPRESSOR BELT
(1) Using a 17 mm wrench, rotate belt tensioner
clockwise (Fig. 1) until belt can be removed from
power steering pump pulley. Gently, release spring
tension on tensioner.
(2) Remove the drive belt (Fig. 2).
GENERATOR BELT
(1) Remove power steering pump/air conditioning
compressor drive belt.
(2) Loosen pivot bolt, then locking nut and adjust-
ing bolt (Fig. 3).
(3) Remove generator belt.
NOTE: When installing drive belt onto pulleys, make
sure that belt is properly routed and all V-grooves
make proper contact with pulley grooves.
INSTALLATION
POWER STEERING PUMP AND AIR CONDITIONING
COMPRESSOR BELT
(1) Install the drive belt (Fig. 2) over all the pul-
leys except for the power steering pump pulley.
(2) Using a 17 mm wrench, rotate belt tensioner
clockwise (Fig. 1) until belt can be installed on the
power steering pulley. Release spring tension onto
belt.
NOTE: When installing drive belt on the pulleys,
make sure that belt is properly routed and all
V-grooves make proper contact with pulley grooves.

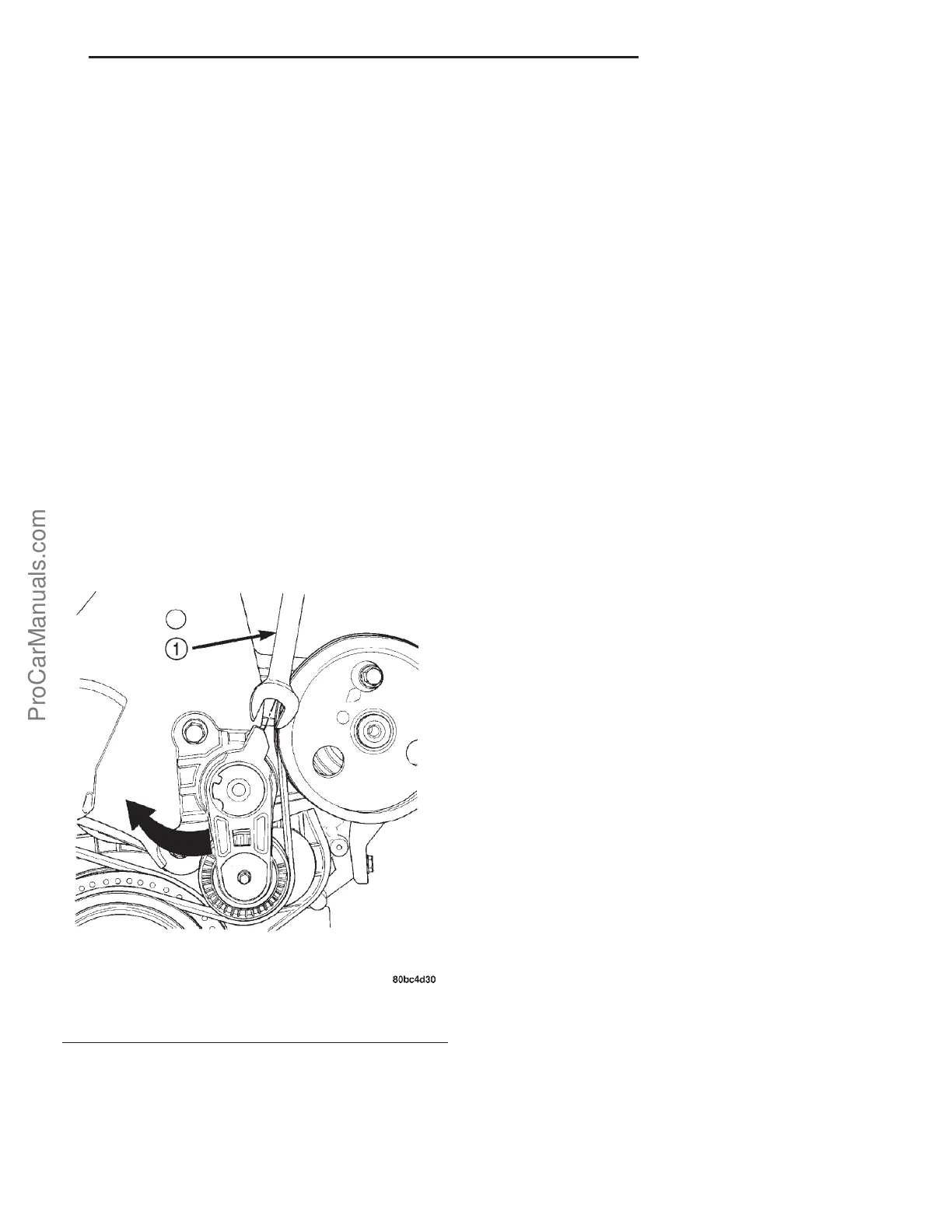

Fig. 1 ACCESSORY BELT - REMOVING
1 - 17 mm WRENCH
PL ACCESSORY DRIVE 7s - 3
ProCarManuals.com
2001 NEON
