cushion. Upon deployment, the seat back trim cover
will tear open and allow the seat airbag to fully
deploy between the seat and the door.
REMOVAL
(1) Position the left front seat in the full forward
position.
(2) Open hood.
(3) Disconnect and isolate the battery negative
cable (Fig. 14).
(4) Remove front seat from vehicle. Refer to Body,
Seats, Front Seat, Removal.
(5) Remove plastic back panel from the seat back
(Fig. 15). Refer to Body, Seats, Front Seat Back
Cover, Removal.
(6) Disengage seat back trim cover J-strap from
the upper, lower and airbag side of seat back.
(7) Disconnect the seat airbag electrical connector
(Fig. 16). Slide yellow locking tab down to unlock.
Then with two fingers, push two side retaining tabs
in and pull connector straight from module.
(8) Remove the seat airbag retaining nuts.
(9) Grasp the upper airbag side of the seat back
trim cover and pull trim cover and cushion over top
of seat back frame. This will allow room to remove
seat airbag without damaging trim cover or cushion.
(10) Working between seat back trim cover/cushion
and frame carefully unhook seat airbag studs from
nylon sleeve and slide seat airbag out of sleeve. Be
careful not to tear nylon sleeve as this will affect
function of airbag system.
CAUTION: Be certain not to tear the side impact air-
bag module nylon sleeve during removal.

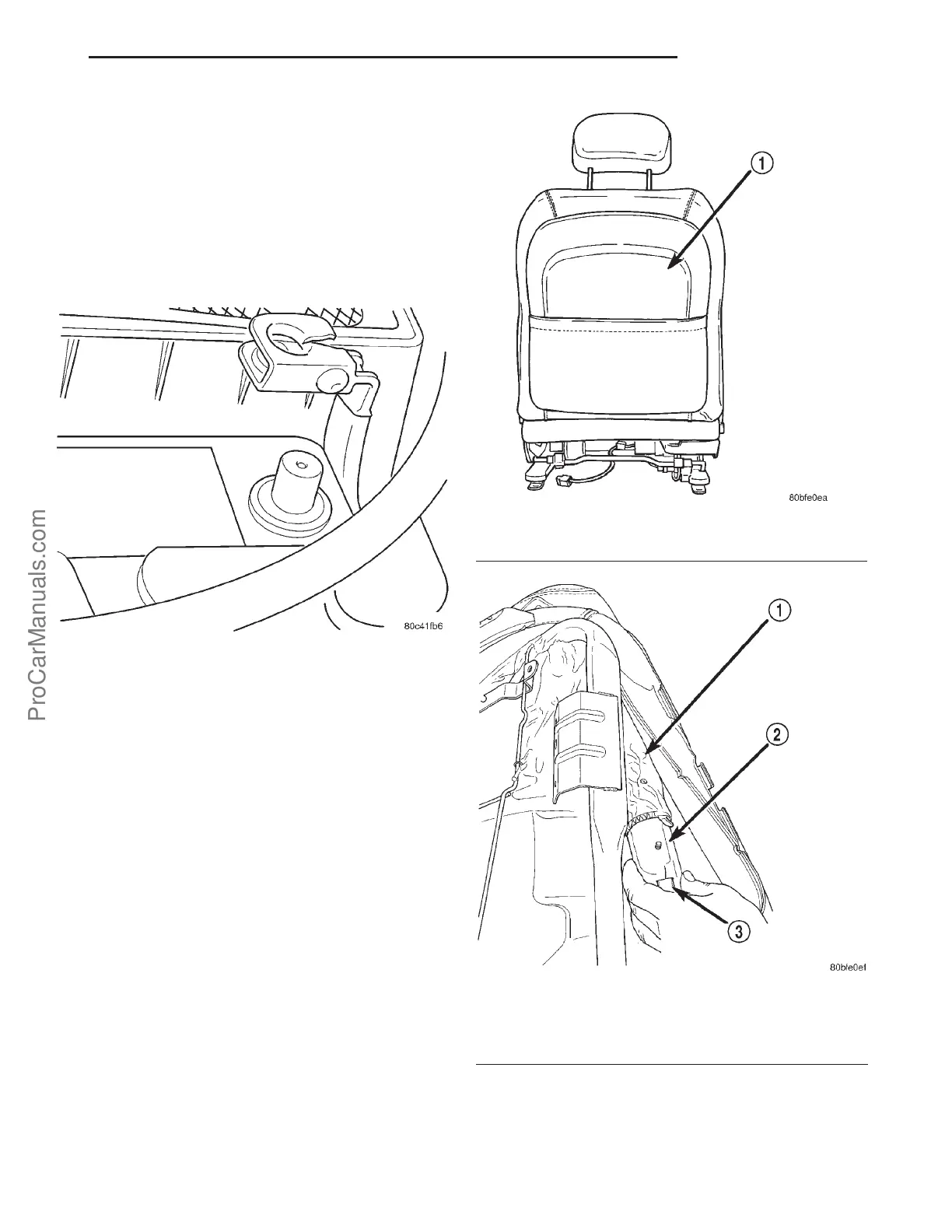

Fig. 14 BATTERY NEGATIVE CABLE REMOVE/
INSTALL
Fig. 15 FRONT SEAT BACK PANEL - TYPICAL
1 - FRONT SEAT BACK PANEL
Fig. 16 SEAT AIRBAG ELECTRICAL CONNECTOR
1 - SEAT AIRBAG NYLON SLEEVE
2 - SEAT AIRBAG
3 - SEAT AIRBAG ELECTRICAL CONNECTOR
PL RESTRAINTS 8Os - 9
SEAT AIRBAG (Continued)
