EXTERIOR
TABLE OF CONTENTS
page page
BODY STRIPES AND DECALS
REMOVAL ...............................5
INSTALLATION............................5
REAR WHEELHOUSE SPLASH SHIELD
REMOVAL ...............................5
INSTALLATION............................5
SPOILER
REMOVAL ...............................6
INSTALLATION............................6
BODY STRIPES AND DECALS
REMOVAL
(1) Mark reference points before removing.
(2) Using a heat gun gently apply heat in a circu-
lar motion to loosen the adhesive bond.
(3) With your fingernail lift up and peel away
badgeing /tape from panel, using a heat gun as you
go.
(4) Clean off all traces of adhesive from the pan-
el(s) with a general purpose adhesive remover.
INSTALLATION
(1) Clean panel surface with isopropy alcohol.
(2) Remove paper carrier and align badgeing/tape
to reference points or adjacent panel.
(3) Install and press securely, using a plastic
spreader to eliminate all air bubbles.
(4) Remove top protective carrier.
(5) Clean away any reference points.
REAR WHEELHOUSE SPLASH
SHIELD
REMOVAL
(1) Remove the wheel. (Refer to 22 - TIRES/
WHEELS - REMOVAL)
(2) Remove the two screws and the three push-pin
fasteners (Fig. 1).
INSTALLATION
(1) Install the shield.
(2) Install the three push-pin fasteners and two
screws.
(3) Install the wheel. (Refer to 22 - TIRES/
WHEELS - INSTALLATION)

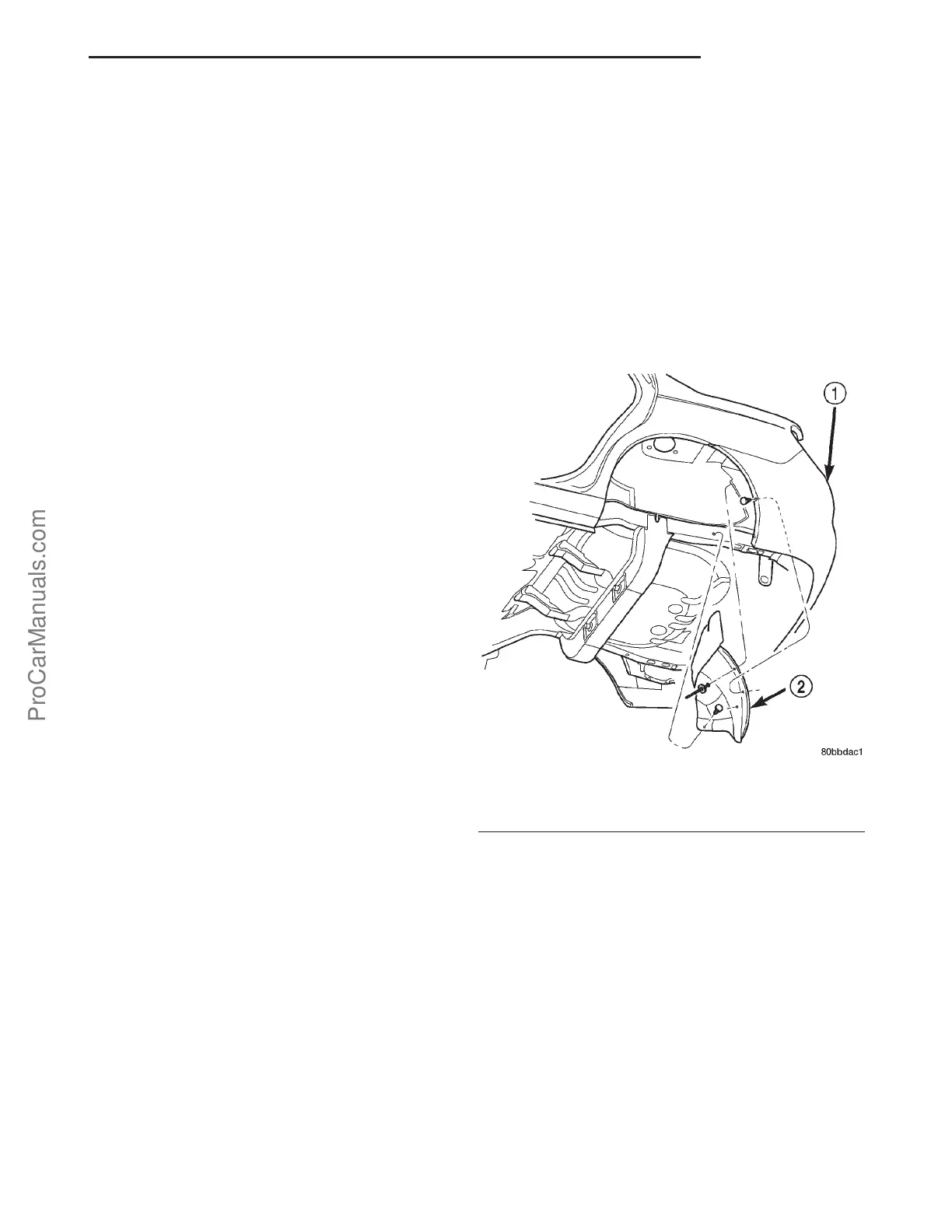

Fig. 1 Rear Wheel Housing Splash Shield
1 - REAR FASCIA
2 - REAR WHEEL HOUSING SPLASH SHIELD
PL EXTERIOR 23s - 5
