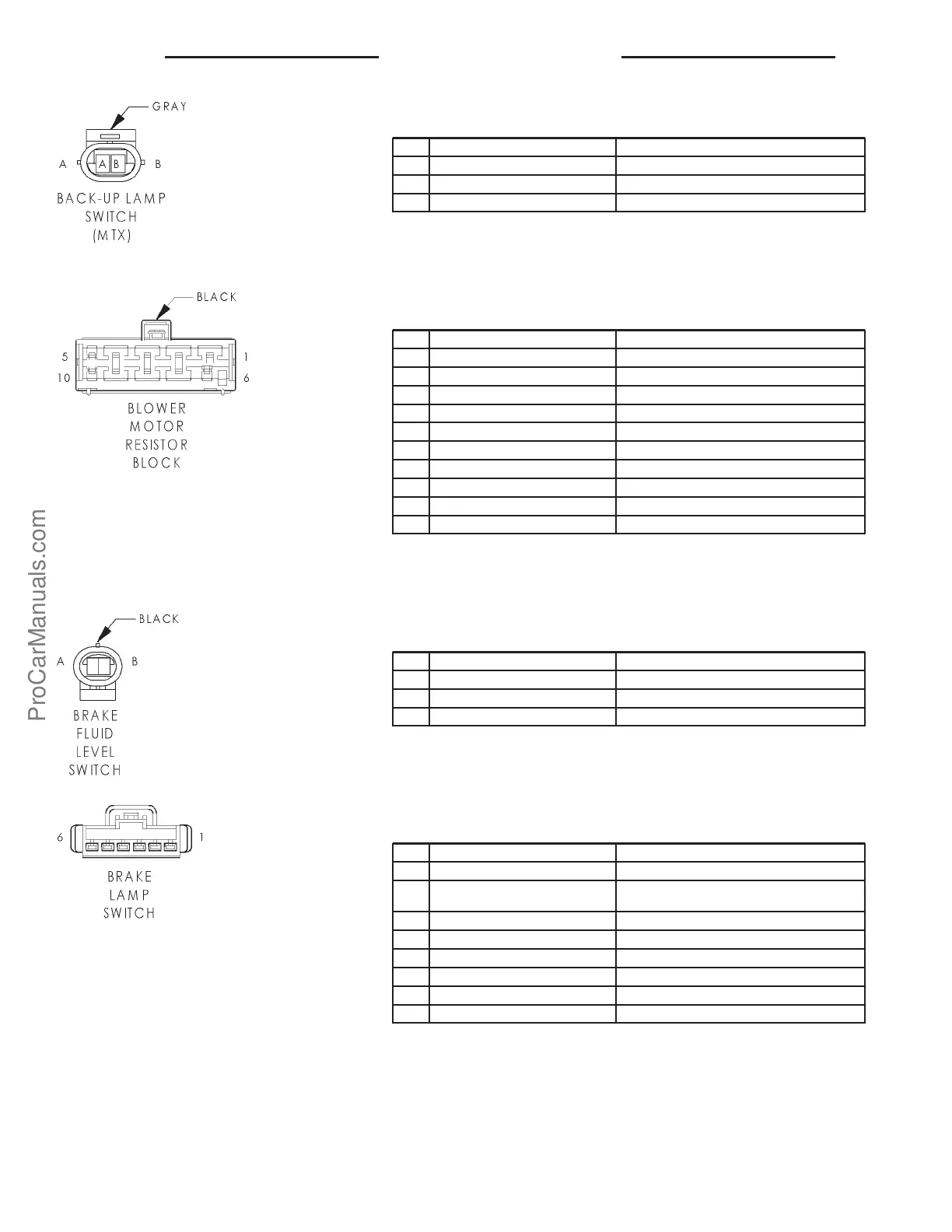

BACK-UP LAMP SWITCH (MTX) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
B F20 20WT (2.0L) FUSED IGNITION SWITCH OUTPUT (RUN)
B F20 18WT (1.6L) FUSED IGNITION SWITCH OUTPUT (RUN)
A L1 18VT/BK BACK-UP LAMP FEED
BLOWER MOTOR RESISTOR BLOCK - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 C5 14LG BLOWER MOTOR M1 DRIVER
2- -
3- -
4- -
5 C4 14TN BLOWER MOTOR LOW DRIVER
6- -
7 C6 14LB BLOWER MOTOR M2 DRIVER
8- -
9 C7 14BK/TN BLOWER MOTOR HIGH DRIVER
10 - -
BRAKE FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
B Z1 18BK GROUND
A G15 18GY/RD (2.0L) BRAKE FLUID LEVEL SWITCH SENSE
A G9 20GY/BK (1.6L) RED BRAKE WARNING INDICATOR DRIVER
BRAKE LAMP SWITCH-6WAY
CAV CIRCUIT FUNCTION
1 F32 18PK/DB FUSED B(+)
2 L50 18WT/TN (2.0L) (ANTILOCK
BRAKE)
BRAKE LAMP SWITCH OUTPUT
2 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
3 V30 20DB/RD (SPEED CONTROL) SPEED CONTROL BRAKE LAMP SWITCH OUTPUT
4 V32 20YL/RD (SPEED CONTROL) SPEED CONTROL SUPPLY
5 Z12 20BK/TN GROUND
6 K29 20WT/PK BRAKE LAMP SWITCH SENSE
6 K29 20WT/PK BRAKE LAMP SWITCH SENSE
8Wa - 80 - 6 8W-80 CONNECTOR PINOUTS PL
