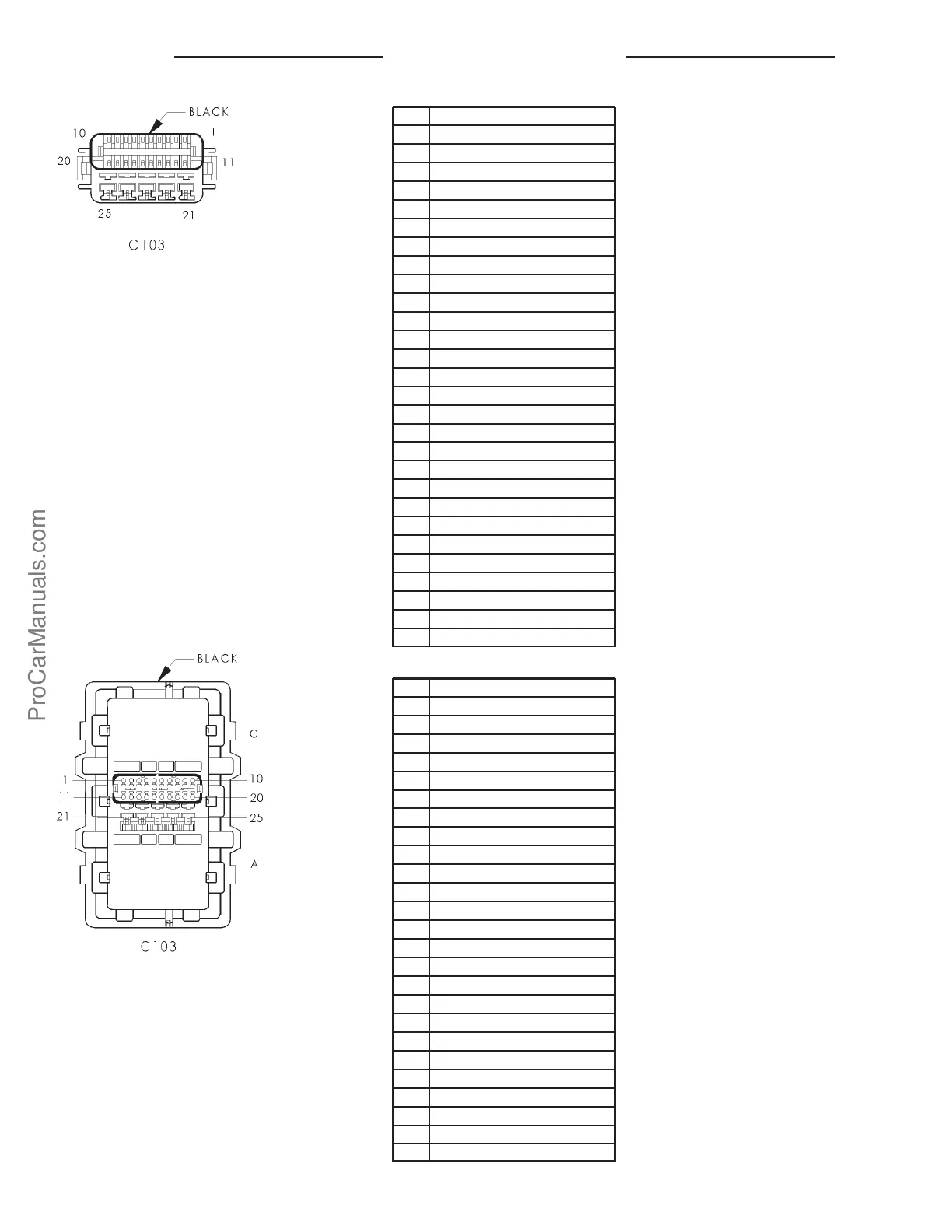

C103 - BLACK (I/P SIDE)
CAV CIRCUIT
1 B27 18RD/YL (ABS)
2 G70 18BR/TN
3 L160 18TN/RD
4 L60 20TN (BUILT-UP-EXPORT)
5 M1 20PK
6 A15 18WT
7-
8-
9-
10 -
11 -
12 -
13 L13 18BR/YL (BUILT-UP-EXPORT)
14 -
15 K29 20WT/PK
16 -
17 -
18 -
19 -
20 -
21 L44 12VT/RD
22 L3 16RD/OR
22 L3 16RD/OR
23 A41 14YL
23 A41 14YL (EATX)
24 A1 14RD
24 A1 14RD
25 L43 14VT
C103 - BLACK (HD/LP & DASH SIDE)
CAV CIRCUIT
B14 -
B2 G70 20BR/TN (RKE)
B3 L160 18TN/RD
B4 L60 20TN (BUILT-UP-EXPORT)
B5 M1 20PK
B6 A15 20WT
B7 -
B8 -
B9 -
B10 -
B11 -
B1 B27 20RD/YL (ABS)
B13 L13 20BR/YL (BUILT-UP-EXPORT)
B25 L43 14VT
B15 K29 20WT/PK
B16 -
B17 -
B18 -
B19 -
B20 -
B21 L44 14VT/RD
B22 L3 14RD/OR
B23 A41 14YL
B24 A1 14RD
B12 -
8Wa - 80 - 10 8W-80 CONNECTOR PINOUTS PL
