CONTROLLER ANTILOCK BRAKE - BLACK 25 WAY
CAV CIRCUIT FUNCTION
12 - -
13 - -
14 - -
15 B27 18RD/YL TRACTION CONTROL SWITCH SENSE
16 - -
17 - -
18 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
19 B6 18WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
20 B7 18WT 12 VOLT SUPPLY
21 - -
22 B2 18YL 12 VOLT SUPPLY
23 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
24 Z1 12BK GROUND
25 A10 12RD/DG FUSED B(+)

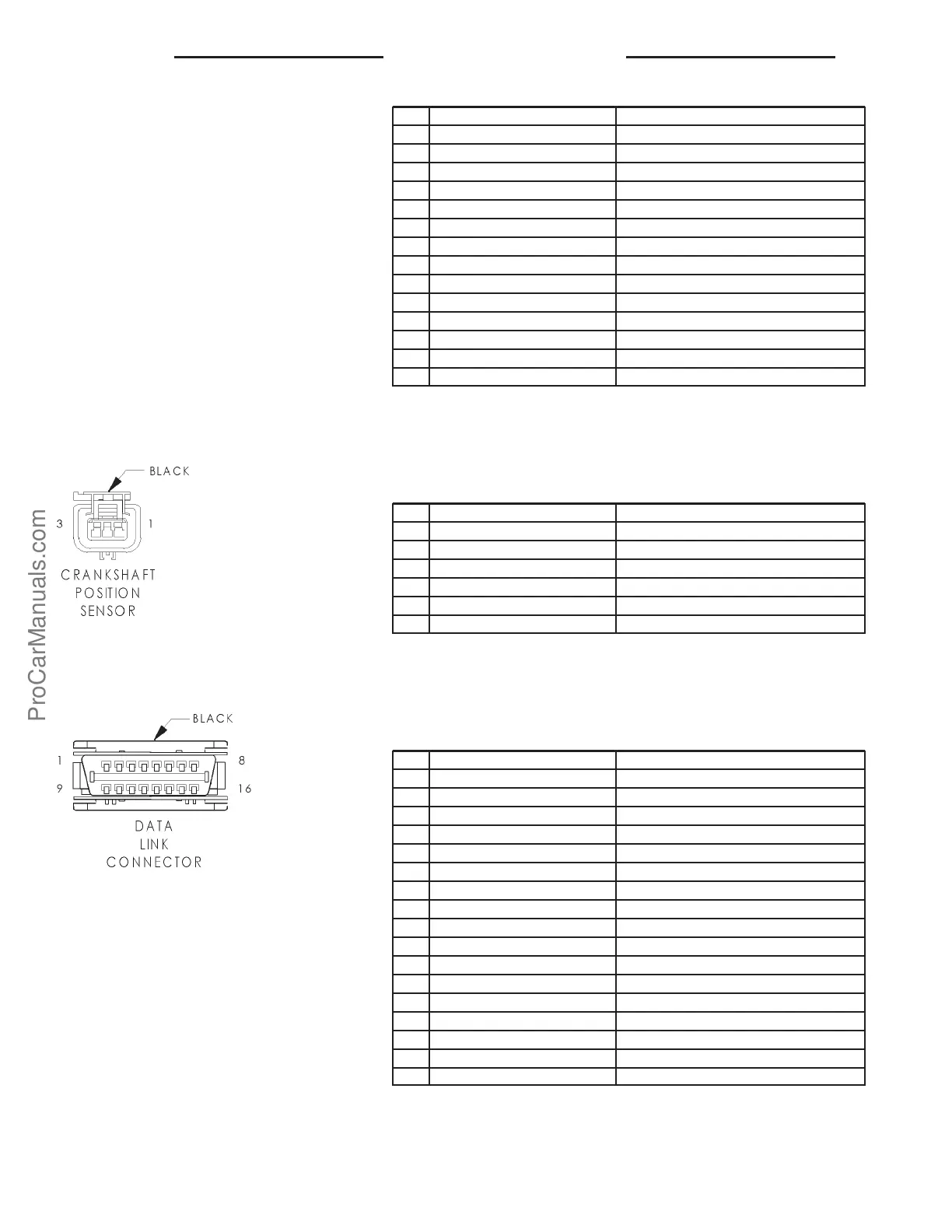

CRANKSHAFT POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K924 20BR/WT (1.6L) CRANKSHAFT POSITION SENSOR GROUND
1 K7 20OR (2.0L) 8V SUPPLY
2 K24 20GY/BK (1.6L) CRANKSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB (2.0L) SENSOR GROUND
3 K7 20OR (1.6L) 8V SUPPLY
3 K24 20GY/BK (2.0L) CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20VT/YL PCI BUS
3- -
4 Z12 20BK/TN GROUND
5 Z12 20BK/TN GROUND
6 D20 20LG SCI RECEIVE
7 D21 20PK (2.0L) SCI TRANSMIT
7 D21 18PK (1.6L) SCI TRANSMIT
8- -
9- -
10 - -
11 - -
12 - -
13 - -
14 D6 18PK/LB (EATX) SCI RECEIVE
15 - -
16 A14 18RD/WT FUSED B(+)
8Wa - 80 - 26 8W-80 CONNECTOR PINOUTS PL
