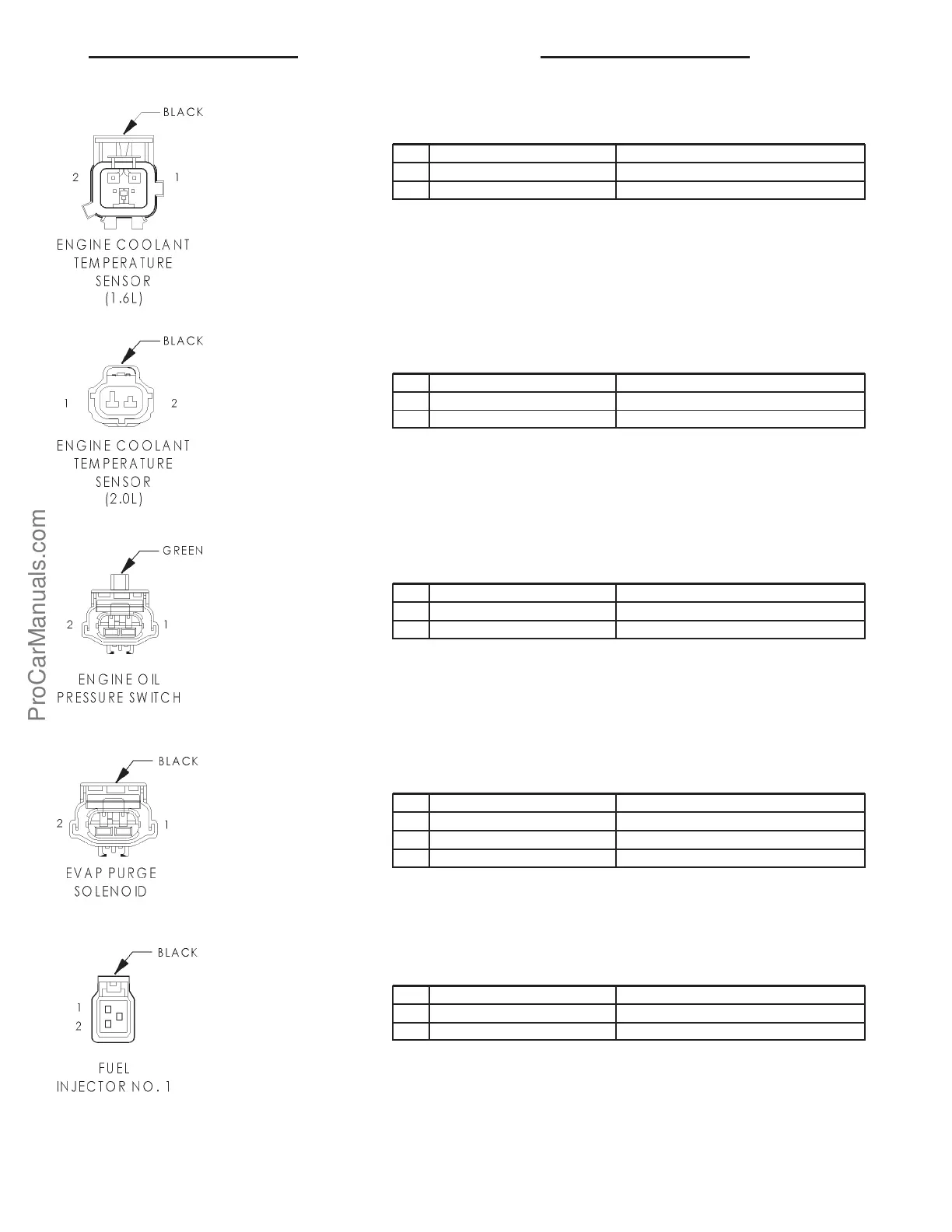

ENGINE COOLANT TEMPERATURE SENSOR (1.6L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
ENGINE COOLANT TEMPERATURE SENSOR (2.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
ENGINE OIL PRESSURE SWITCH - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 G6 20GY ENGINE OIL PRESSURE SWITCH SENSE
2- -
PROPORTIONAL EVAP/PURGE SOLENOID - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F12 18DB/WT (1.6L) FUSED IGNITION SWITCH OUTPUT (RUN-START)
1 K108 20DB (2.0L) EVAPORATIVE EMISSION SOLENOID SENSE
2 K52 20PK/BK EVAP PURGE SOLENOID CONTROL
FUEL INJECTOR NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K11 18WT/DB FUEL INJECTOR NO.1 DRIVER
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 31
