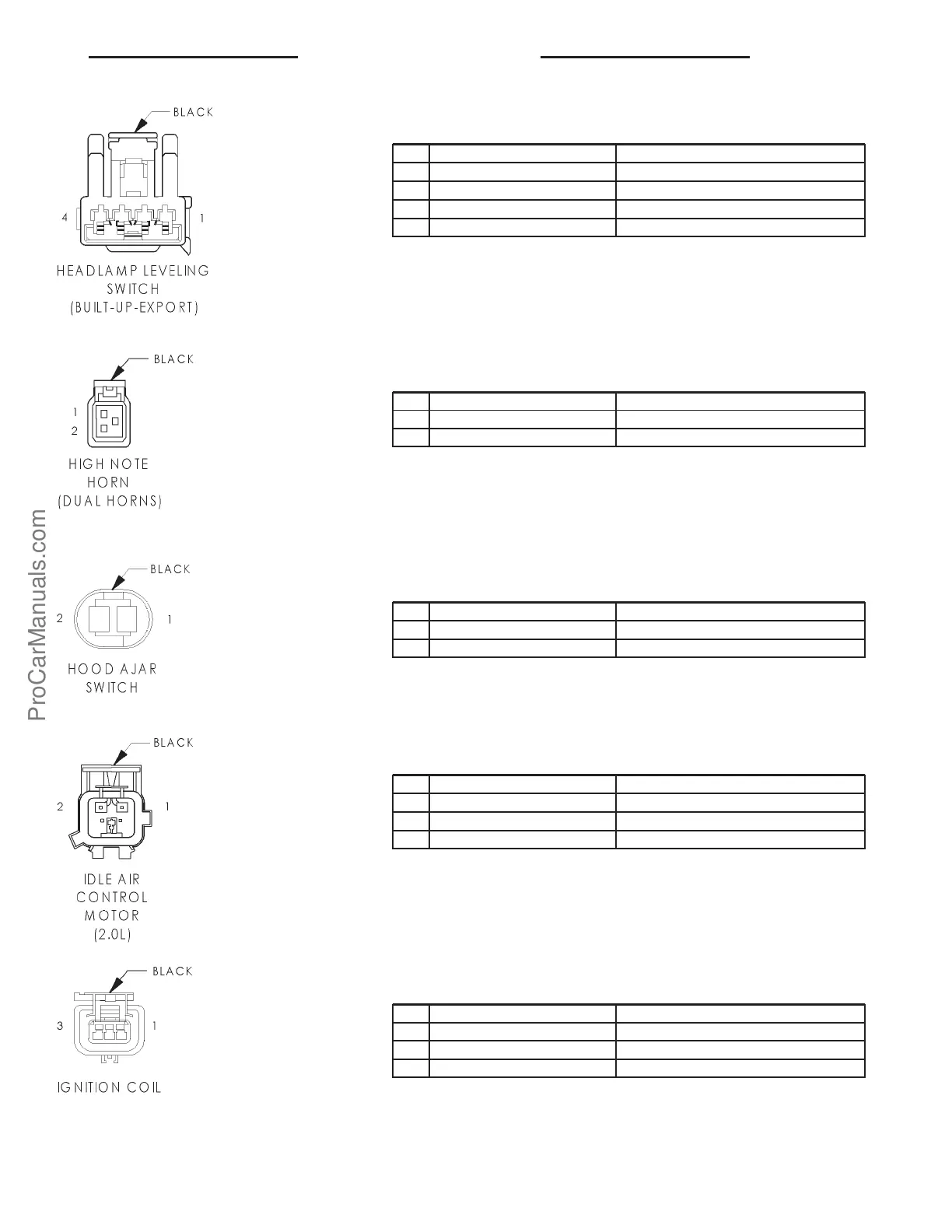

HEADLAMP LEVELING SWITCH (BUILT-UP-EXPORT) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 L13 20BR/YL HEADLAMP ADJUST SIGNAL
2 L43 18VT FUSED LEFT LOW BEAM OUTPUT
3 Z1 20BK GROUND
4 E2 22OR PANEL LAMPS DRIVER
HIGH NOTE HORN (DUAL HORNS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 X2 18DG/RD HORN RELAY OUTPUT
HOOD AJAR SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G70 18BR/TN HOOD AJAR SWITCH SENSE
2 Z1 18BK GROUND
IDLE AIR CONTROL MOTOR (2.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K60 20YL/BK IDLE AIR CONTROL DRIVER
2 K39 20GY/RD (EATX) IDLE AIR CONTROL MOTOR SENSE
2 K40 20BR/WT (EXCEPT EATX) IDLE AIR CONTROL MOTOR SENSE
IGNITION COIL - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K17 18DB/TN IGNITION COIL NO. 2 DRIVER
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K19 18BK/GY IGNITION COIL NO. 1 DRIVER
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 33
