INSTRUMENT CLUSTER - BLACK 26 WAY
CAV CIRCUIT FUNCTION
12 E2 22OR PANEL LAMPS DRIVER
13 M9 20LB/OR (RHD) PASSENGER DOOR AJAR/RKE SENSE
13 M9 20DB/OR (LHD) PASSENGER DOOR AJAR/RKE SENSE
14 L7 20BK/YL HEADLAMP SWITCH OUTPUT
15 G5 18TN (LHD-EXCEPT RKE) FUSED IGNITION SWITCH OUTPUT (RUN-START)
15 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
16 L161 18LG/OR LEFT TURN SIGNAL
17 L160 18TN/RD RIGHT TURN SIGNAL
18 L61 20LG LEFT TURN SIGNAL
19 L60 20TN RIGHT TURN SIGNAL
20 L4 16VT/WT (EXCEPT BUILT-UP-EX-
PORT)
DIMMER SWITCH LOW BEAM OUTPUT
21 M1 20PK FUSED B(+)
22 G9 18GY/BK RED BRAKE WARNING INDICATOR DRIVER
23 G26 22LB KEY-IN IGNITION SWITCH SENSE
24 G74 18TN (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
24 G75 18TN (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
25 G10 20LG/RD SEAT BELT SWITCH SENSE
26 L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT

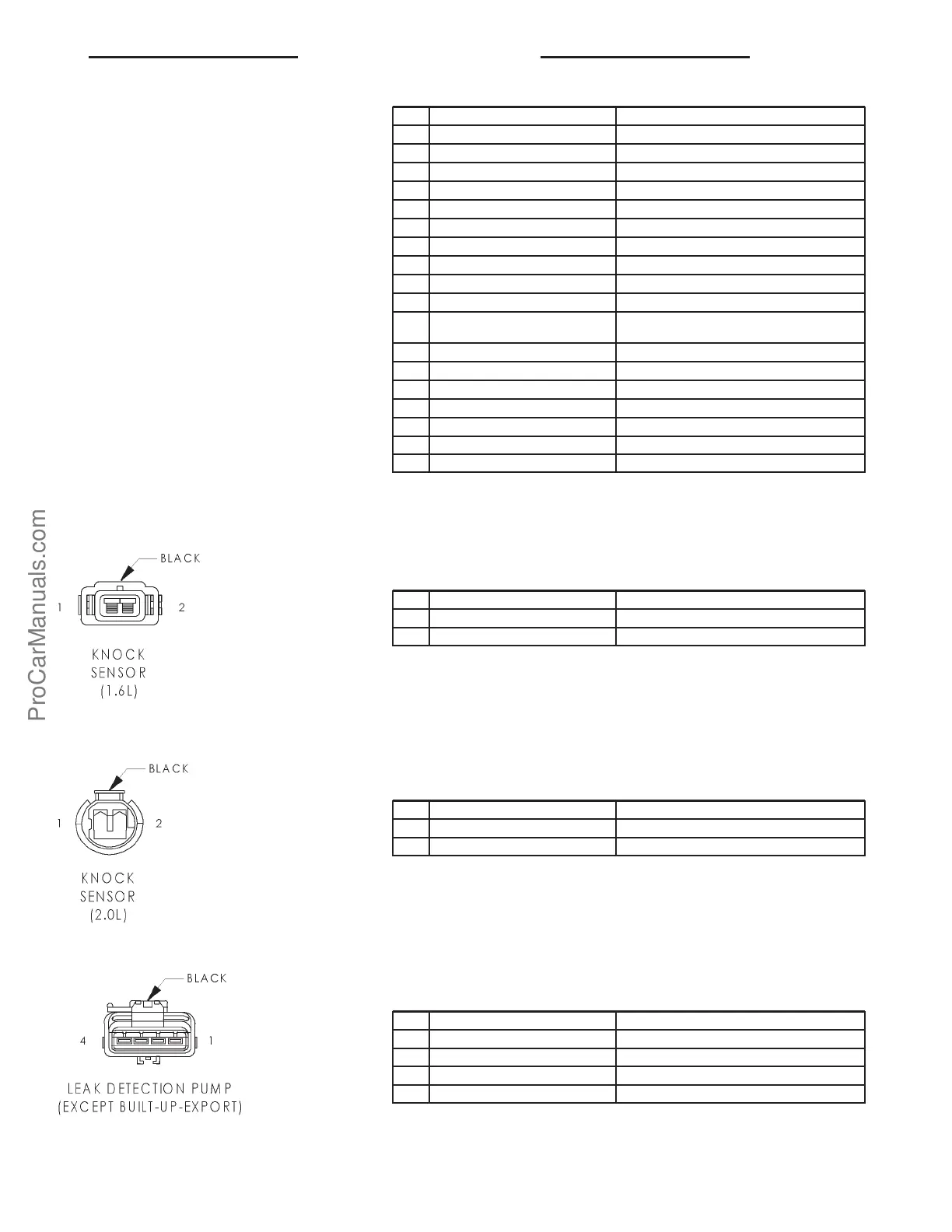

KNOCK SENSOR (1.6L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K42 20DB/LG KNOCK SENSOR SIGNAL
2 K942 20BR/DB KNOCK SENSOR GROUND
KNOCK SENSOR (2.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K42 20DB/LG KNOCK SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
LEAK DETECTION PUMP (EXCEPT BUILT-UP-EXPORT) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 F12 18DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 K106 18WT/DG LEAK DETECTION PUMP SOLENOID CONTROL
4 K107 18YL LEAK DETECTION PUMP SWITCH SENSE
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 35
