Dodge Neon 2001 - Page 422

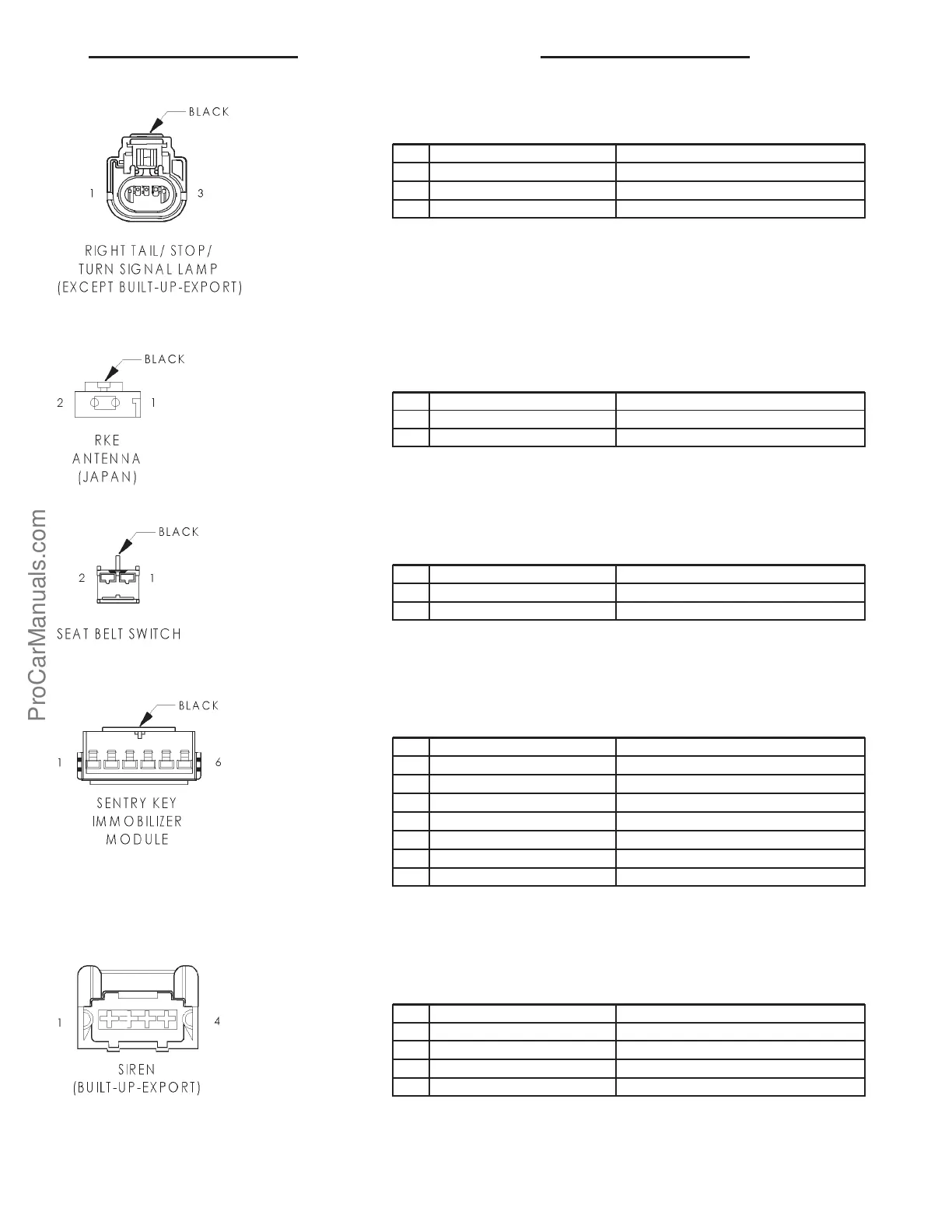

RIGHT TAIL/STOP/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) -BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
3 L62 18BR/RD RIGHT TURN SIGNAL
RKE ANTENNA (JAPAN) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X161 18WT ANTENNA (JAPAN)
2 X161 18WT/BK ANTENNA (JAPAN)
SEAT BELT SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G10 20LG/RD SEAT BELT SWITCH SENSE
2 Z1 18BK GROUND
SENTRY KEY IMMOBILIZER MODULE - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 22VT/YL PCI BUS
3- -
4 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 Z2 20BK/LG (LHD) GROUND
5 Z2 22BK/LG (RHD) GROUND
6 M1 20PK FUSED B(+)
SIREN (BUILT-UP-EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 X5 20WT/RD DISPLAY BACKLIGHT
2 X5 20WT/RD DISPLAY BACKLIGHT
3 Z1 18BK GROUND
4 M1 20PK FUSED B(+)
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 57
