(22) Carefully lower engine and transaxle on screw
jack until proper removal clearance is obtained.
(23) Obtain a helper to assist in holding transaxle
while removing transaxle-to-engine mounting bolts
(Fig. 10).
(24) Remove transaxle from vehicle (Fig. 10).

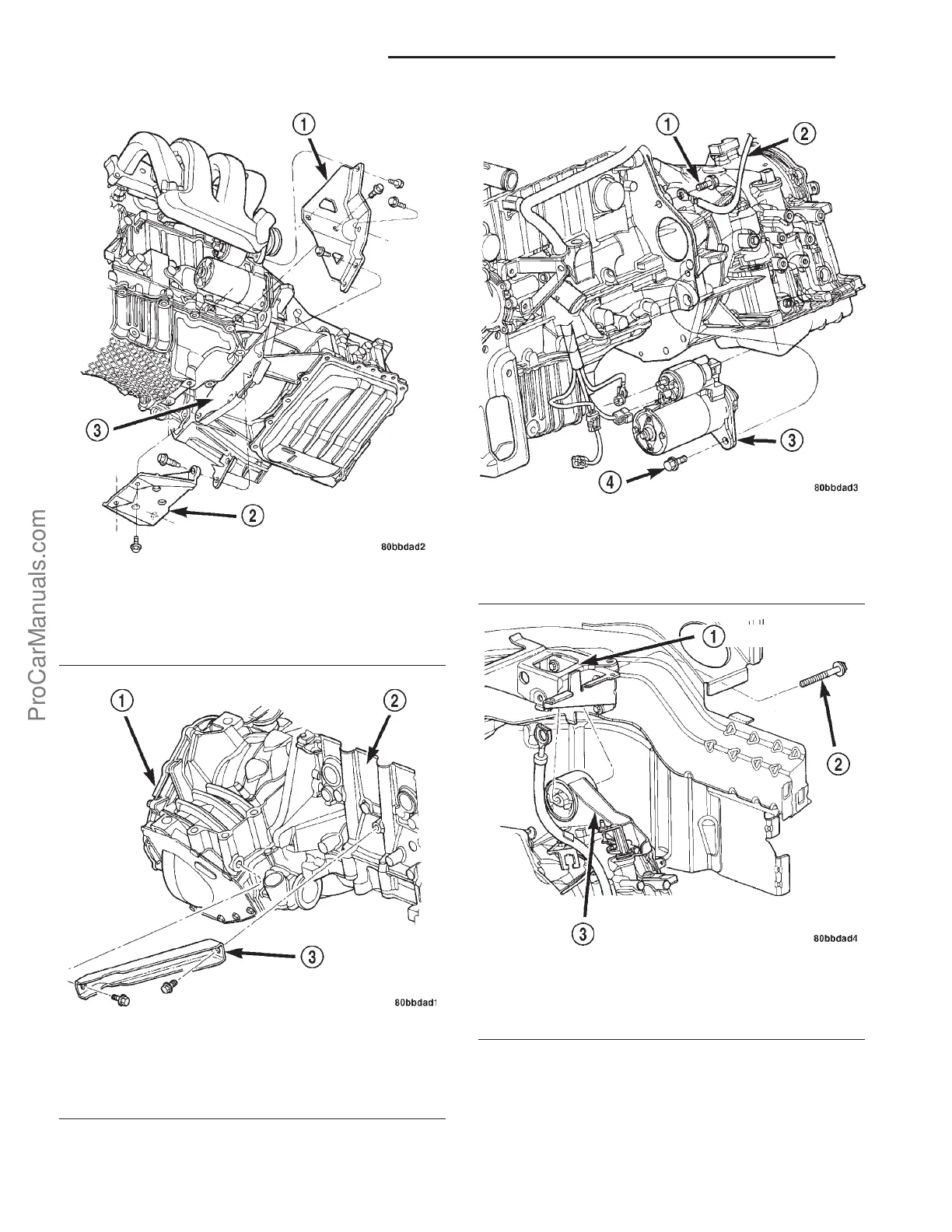

Fig. 6 Left Lateral Bending Brace and Structural
Collar—Typical
1 - LATERAL BENDING BRACE
2 - STRUCTURAL COLLAR
3 - DUST COVER
Fig. 7 Right Lateral Bending Brace Removal/
Installation—Typical
1 - TRANSAXLE
2 - ENGINE
3 - LATERAL BENDING BRACE
Fig. 8 Starter Motor Removal/Installation—Typical
1 - BOLT
2 - GROUND
3-STARTER
4 - BOLT
Fig. 9 Transaxle Upper Mount Thru-Bolt—Typical
1 - MOUNT BRACKET
2 - BOLT
3 - MOUNT
21s - 4 A578 MANUAL TRANSMISSION PL
A578 MANUAL TRANSMISSION (Continued)
