(7) Using an arbor press, steel block, and Tool
L-4440, press speedometer drive gear onto differen-
tial case (Fig. 27) (Fig. 28).

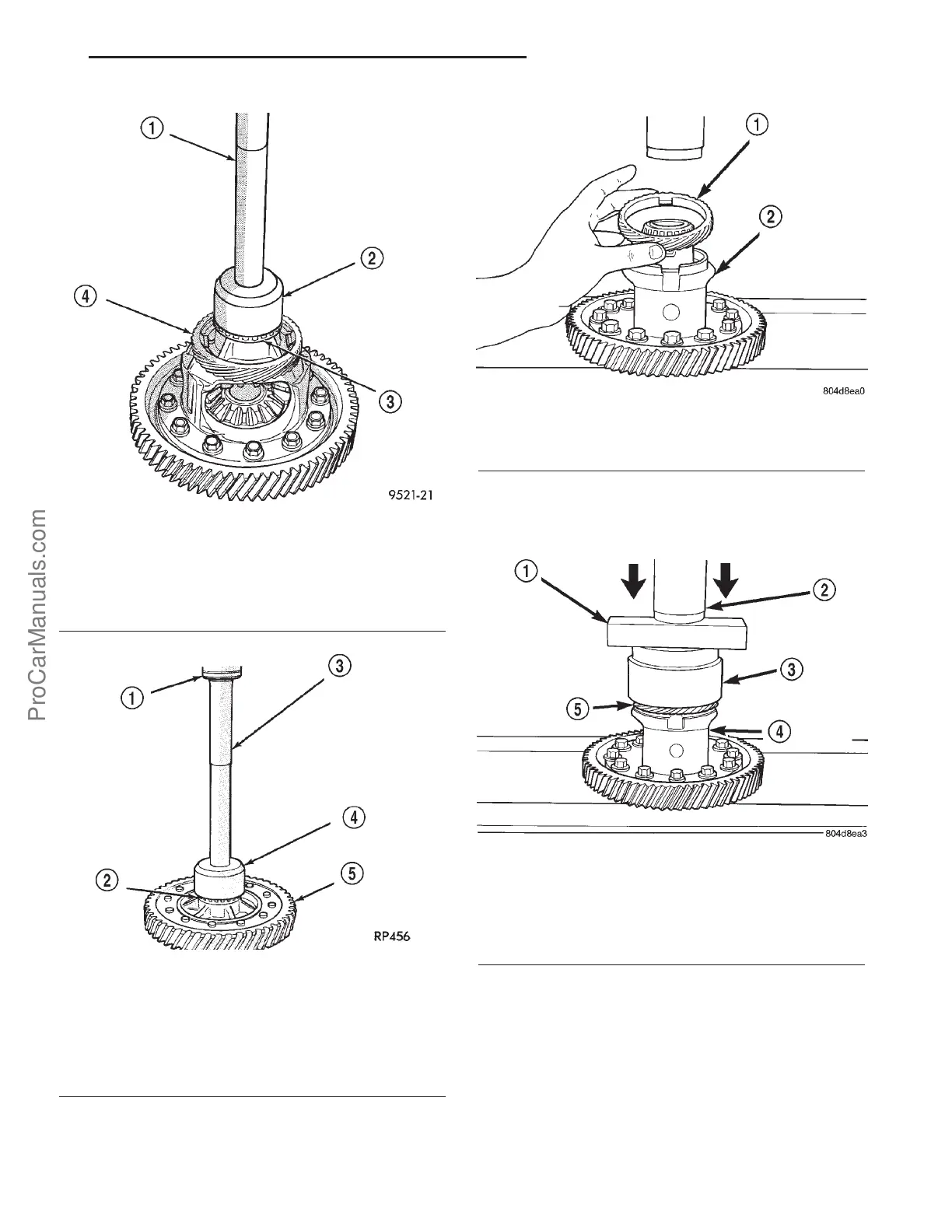

Fig. 24 Install Differential Bearing Cone to Diff. Case
Side
1 - SPECIAL TOOL C-4171
2 - SPECIAL TOOL L-4410
3 - BEARING CONE
4 - SPEED SENSOR DRIVE GEAR
Fig. 25 Install Differential Bearing Cone to Ring
Gear Side
1 - ARBOR PRESS RAM
2 - BEARING CONE
3 - SPECIAL TOOL HANDLE C-4171
4 - SPECIAL TOOL L-4410
5 - DIFFERENTIAL ASSEMBLY
Fig. 26 Speedometer Drive Gear
1 - SPEEDOMETER DRIVE GEAR
2 - DIFFERENTIAL ASSEMBLY
Fig. 27 Press Gear onto Differential
1 - STEEL STOCK
2 - PRESS RAM
3 - SPECIAL TOOL L-4440
4 - DIFFERENTIAL ASSEMBLY
5 - SPEEDOMETER DRIVE GEAR
PL A578 MANUAL TRANSMISSION 21s - 13
