(1) Remove air cleaner assembly (Fig. 12).
(2) Disconnect battery negative cable.
(3) Raise vehicle on hoist.
(4) Using Tool 6638A, disconnect clutch hydraulic
quick-connect (Fig. 14) (Fig. 13).
(5) Remove hydraulic hose from left rail retainer
(Fig. 17).
(6) Lower vehicle.
(7) Remove PDC bracket and position out of way.
(8) Remove lower instrument panel bezel (Fig. 15).
(9) Remove clip and disconnect the brake booster
input rod from the brake pedal pin (Fig. 16).
(10) Remove the brake booster mounting nuts (Fig.
16).
(11) Slide brake booster forward enough to gain
access to and remove clutch master cylinder.
(12) Remove clutch master cylinder reservoir (Fig.
17).

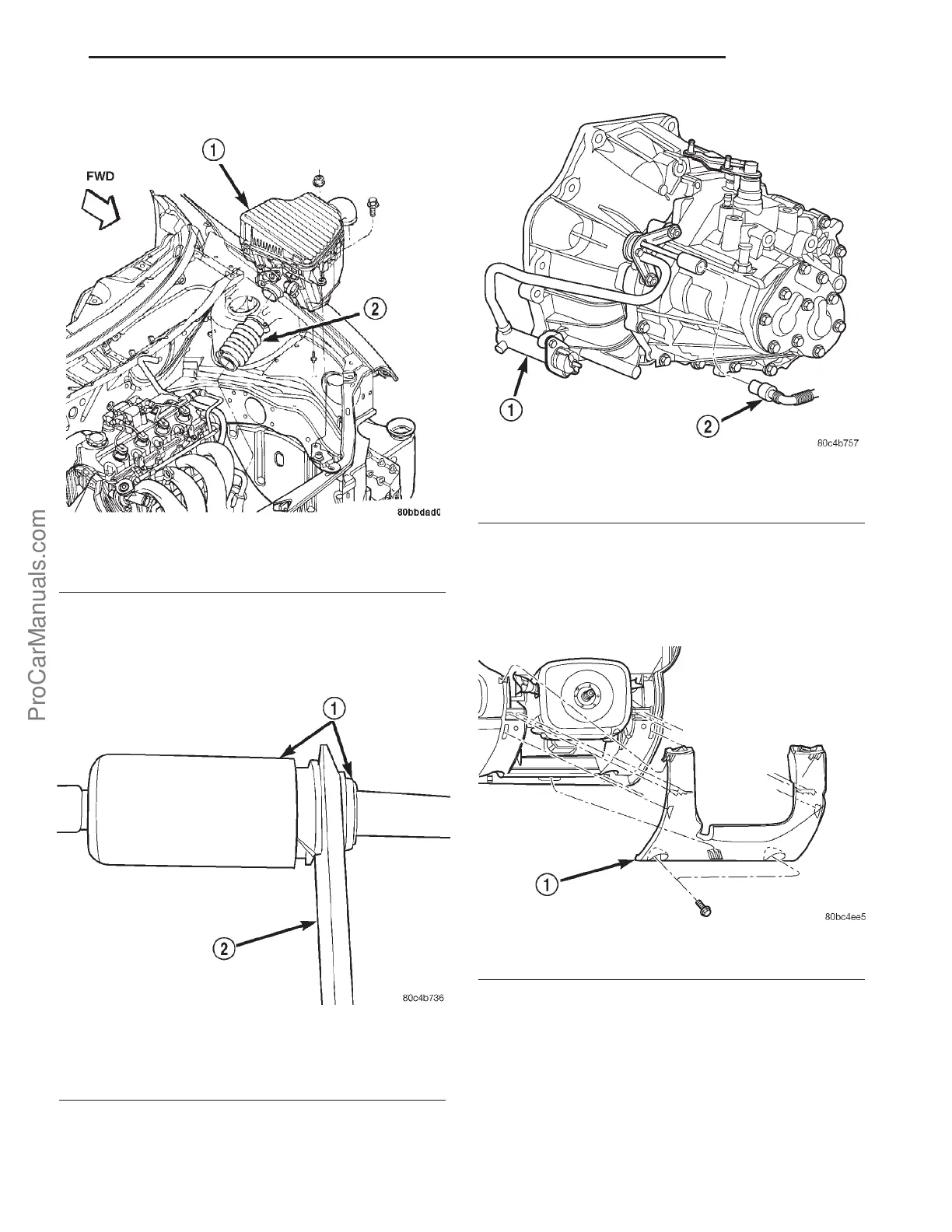

Fig. 12 Air Cleaner Assembly Removal/Installation
1 - AIR CLEANER ASSY.
2 - THROTTLE BODY DUCT
Fig. 13 Disconnect Hydraulic Circuit Using Tool
6638A
1 - QUICK CONNECT FITTING
2 - TOOL 6638A
Fig. 14 Slave Cylinder and Hydraulic Supply Tube
1 - SLAVE CYLINDER
2 - HYDRAULIC TUBE
Fig. 15 Steering Column Lower Cover
1 - LOWER COVER
PL CLUTCH 6s - 9
MASTER CYLINDER (Continued)
