(6) Remove oil filter (Fig. 11).
(7) Turn manual valve fully clock-wise to get park
rod into position for removal.
(8) Remove valve body-to-case bolts (Fig. 12).
CAUTION: Do not handle the valve body assembly
from the manual valve. Damage can result.
(9) Using a screwdriver, push park rod rollers
away from guide bracket (Fig. 13) and remove valve
body assembly (Fig. 14).
NOTE: Depending on engine application, some
accumulators will have two springs and others will
have one spring. The springs are color-coded
according to application and year. When disassem-
bling, mark accumulator spring location to ease
assembly.

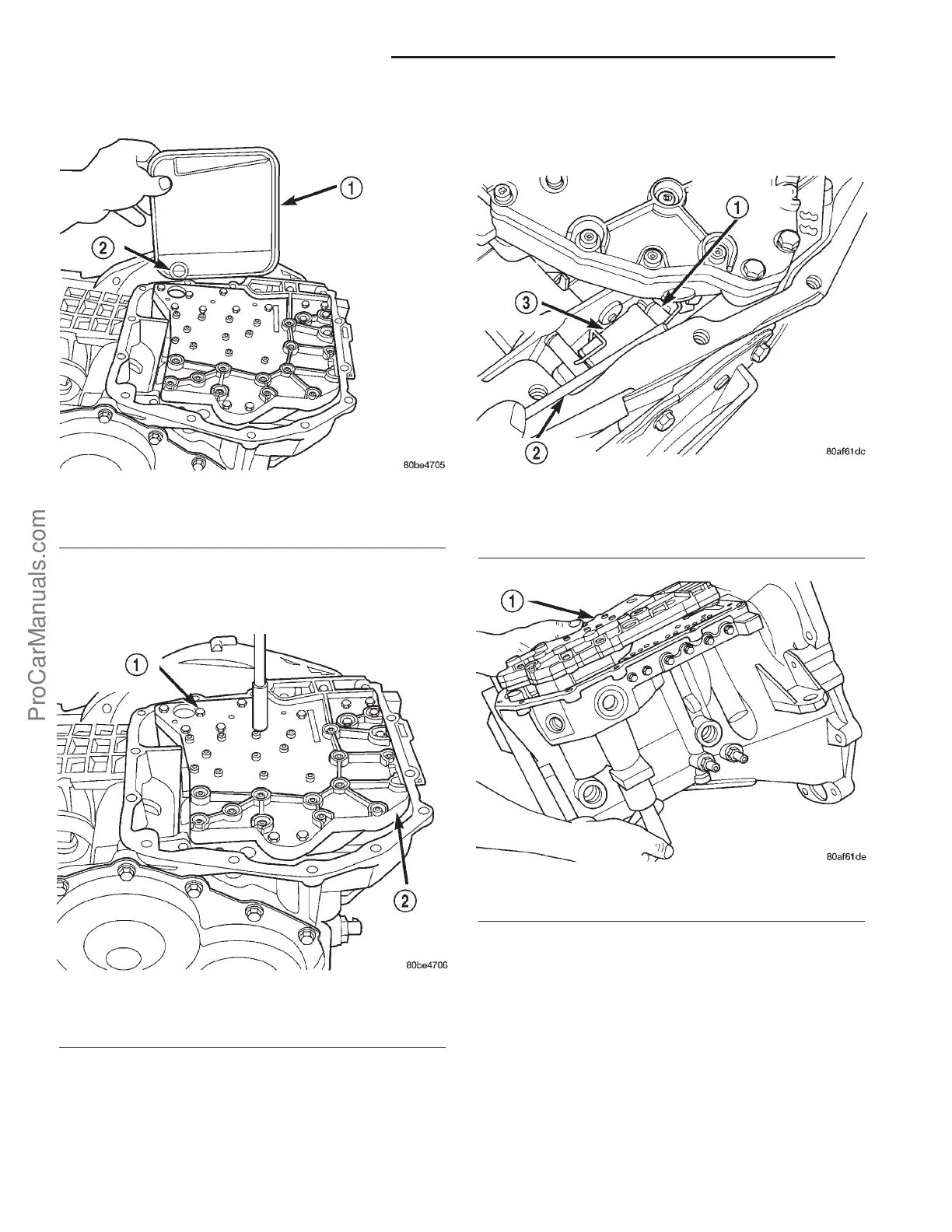

Fig. 11 Remove Oil Filter
1 - OIL FILTER
2 - O-RING
Fig. 12 Remove Valve Body Attaching Bolts
1 - VALVE BODY ATTACHING BOLTS (18)
2 - VALVE BODY
Fig. 13 Push Park Rod Rollers from Guide Bracket
1 - PARK SPRAG ROLLERS
2 - SCREWDRIVER
3 - PARK SPRAG GUIDE BRACKET
Fig. 14 Remove Valve Body
1 - VALVE BODY
21s - 78 41TE AUTOMATIC TRANSAXLE PL
41TE AUTOMATIC TRANSAXLE (Continued)
