Programming

262 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017

Cycle time

 The display switches to Cycle time.

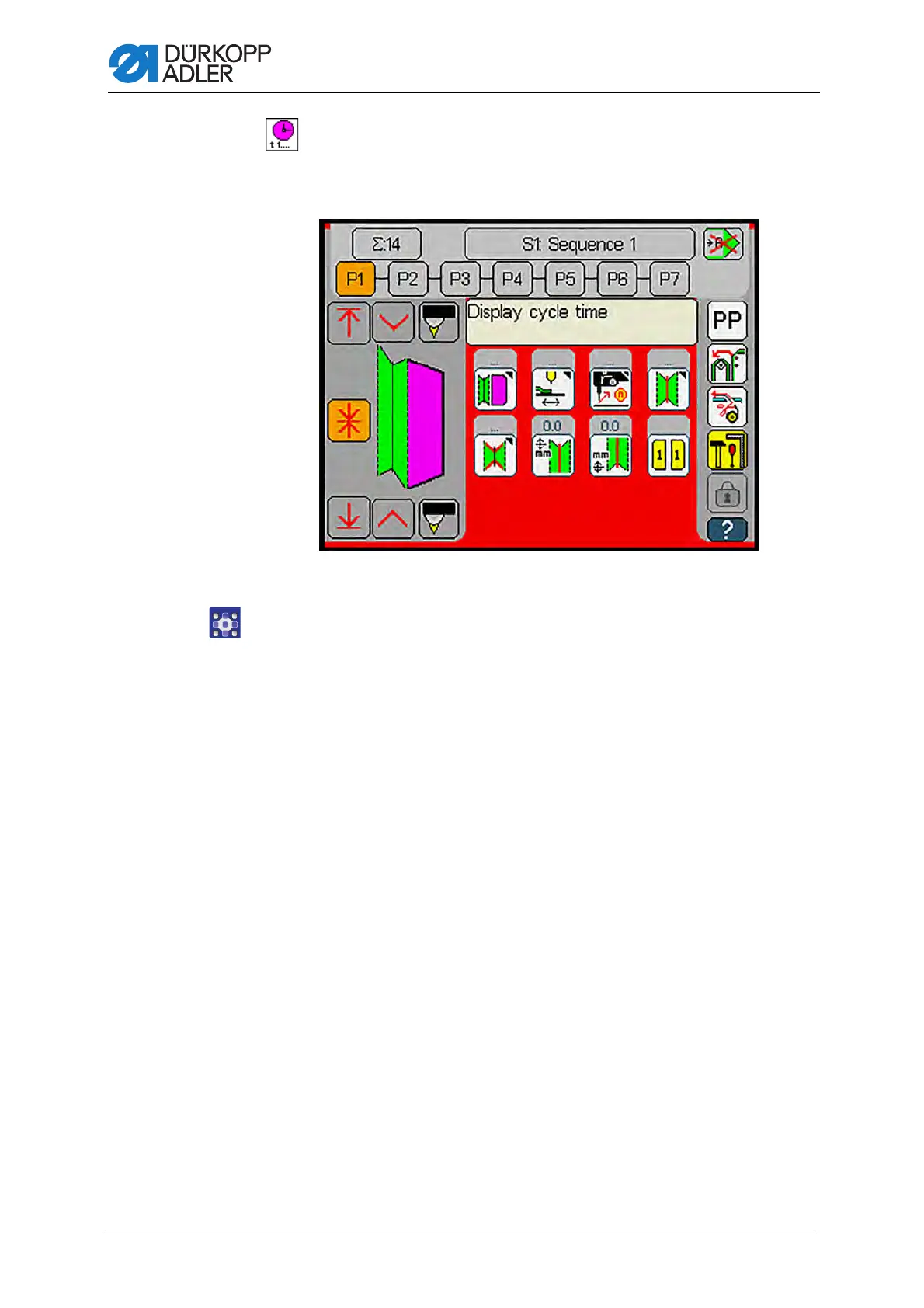

Fig. 224: Cycle time

To test the cycle time:

1. Sew.

 The display shows the time in ms.

The cycle time allows you to optimize the machine settings.

2. To exit the test: access the menu again and press the OFF button.
