Programming
264 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017
2. Press the desired button.
3. Enter the desired value using the numeric keypad.
4. Confirm with OK.
Information
When the transport clamps are moved, the Encoder and Position values
must not deviate from one another by more than 0.2. There is a risk of step
losses if the value changes exceed the permissible limit when the transport
clamps are moved.
If there is a difference between the Encoder and Position values, you can
reset the values by carrying out a reference run.

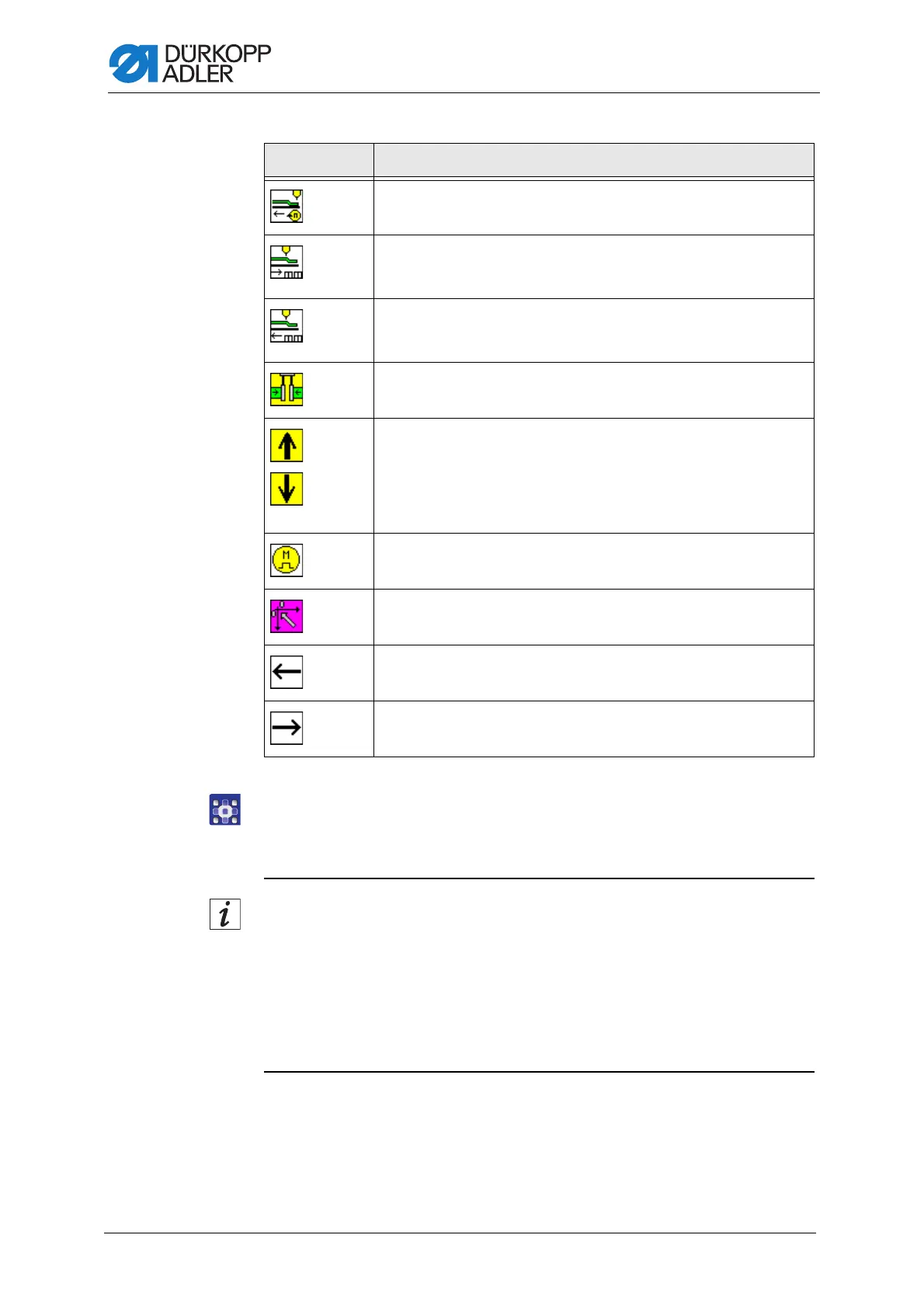

Symbol Meaning
Adjust clamp speed
• 10 - 100%
Adjust step motor pos. 1
• 0 - 517.5 mm
• Starting position transport clamp
Adjust step motor pos. 2
• 0 - 517.5 mm
• End position transport clamp
Transport clamp quick adjustment ( p. 225)
Lift transport clamp
OR
Lower transport clamp
• When lowered, the transport clamp must rest on fabric as the
machine will otherwise sustain damage
Switch step motor current-free On/Off
• The transport clamp can be moved manually
Carry out a reference run
Insertion of transport clamp
• Caution! Transport clamp moves forward
Revers of transport clamp
