INSTALLATION OF THE STP PUMP
3
3.1.2 Installation area
Leave enough space for the following reasons in addition to the room for the STP pump: (see Figure
11)
• Space for maintenance and inspection.
• Space for connecting cables.
CAUTION
DO NOT bend the cables excessively, and beware of any obstacles when installing the STP
pump. In addition, leave enough space to install other cables without bending them excessively.

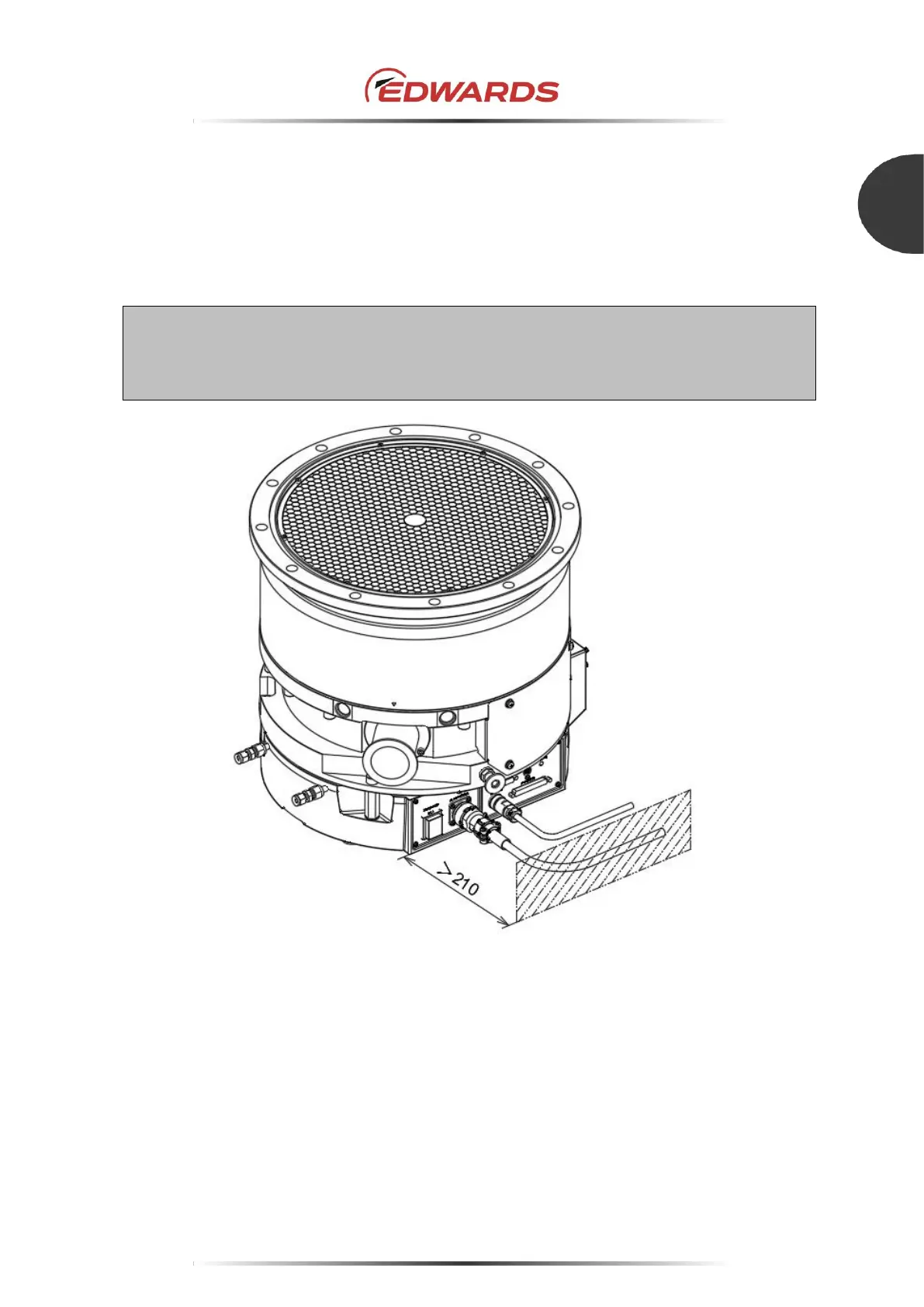

Figure 11 - Space around the STP pump
*1
*1 Secure this space in consideration of the bending radius and so on.
