INSTALLATION OF THE STP PUMP
PAG
E
44
3
3.8 Attaching a baking heater
WARNING
The surfaces of the STP pump and its peripheral equipment will become extremely
hot when baking. NEVER touch them with bare hands.
CAUTION
Check the rated voltage of the baking heater (optional accessory)
This working voltage range is within ±10% of the rated voltage.
CAUTION
DO NOT apply excessive force to the cable of the baking heater.
CAUTION
Attach the baking heater around the surface of the STP pump tightly. The loose parts will overheat
if the baking heater is not attached tightly.
The baking heater is not included in the standard specification of the STP pump.
When attaching the baking heater at your company, refer to the external appearance (see Section
2.4) before purchasing it.
Install the baking heater near the inlet port flange of the envelope. (see Figure 26)

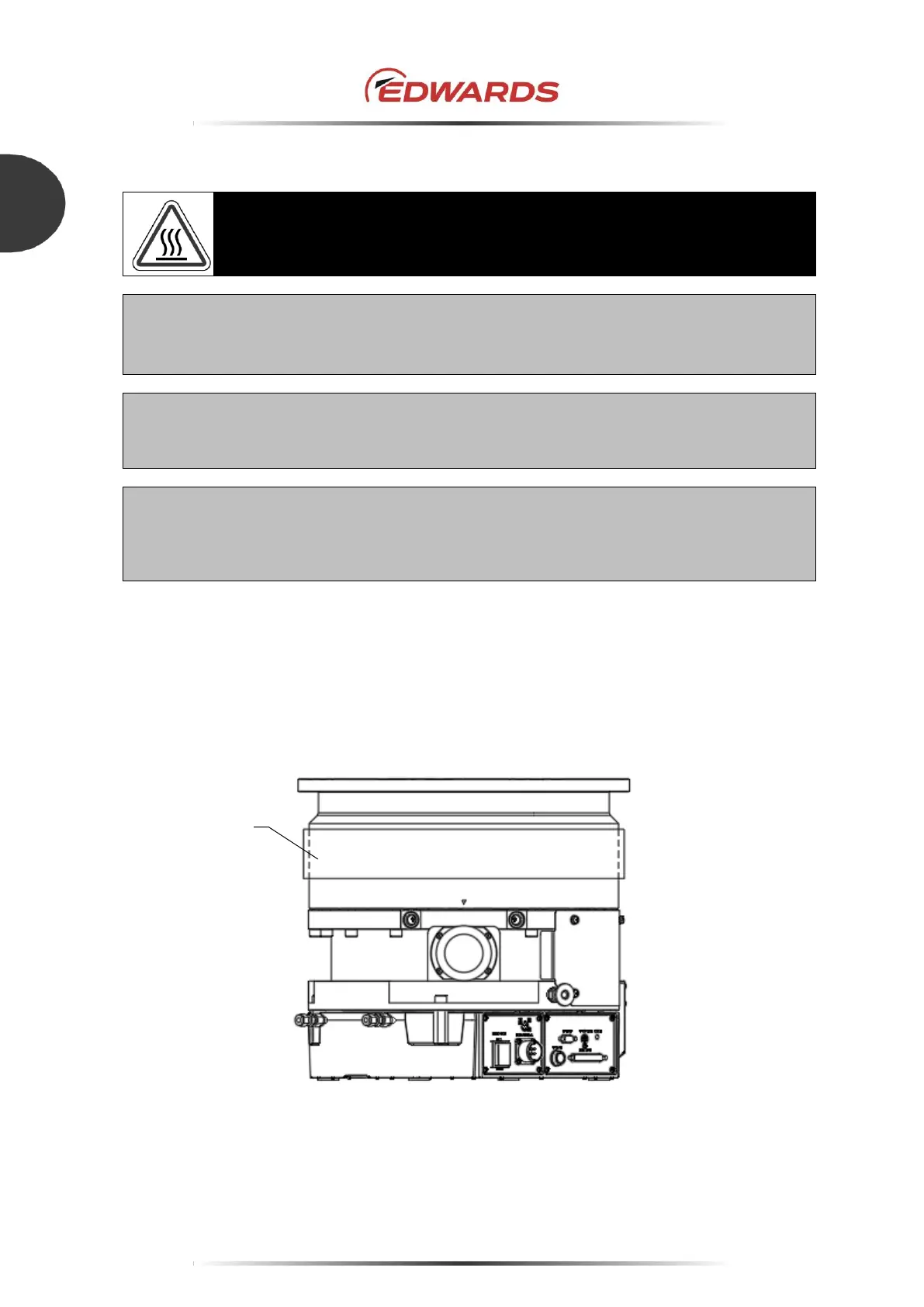

Figure 26 - Baking heater installation position
Baking heater
