TECHNICAL DATA
PAG
E
20
2
2.5 Label affixing positions
Refer to Section 1.6, "Labels" for the details of the labels 1 to 7.
1
Warning label of STP pump installation and
Caution label for Heavy product
2
Caution label of Heater removing prohibition and
Warning label for hot surface (2 pcs)
3
Caution label for the high voltage devices
4
Label for the rotational direction
5
Notice label urging to use the water-cooling
6
Label related to connecting the water-cooling lines
7
Warning label of urging overhaul the pump
8
Company logo
9
Name plate
10
Barcode label

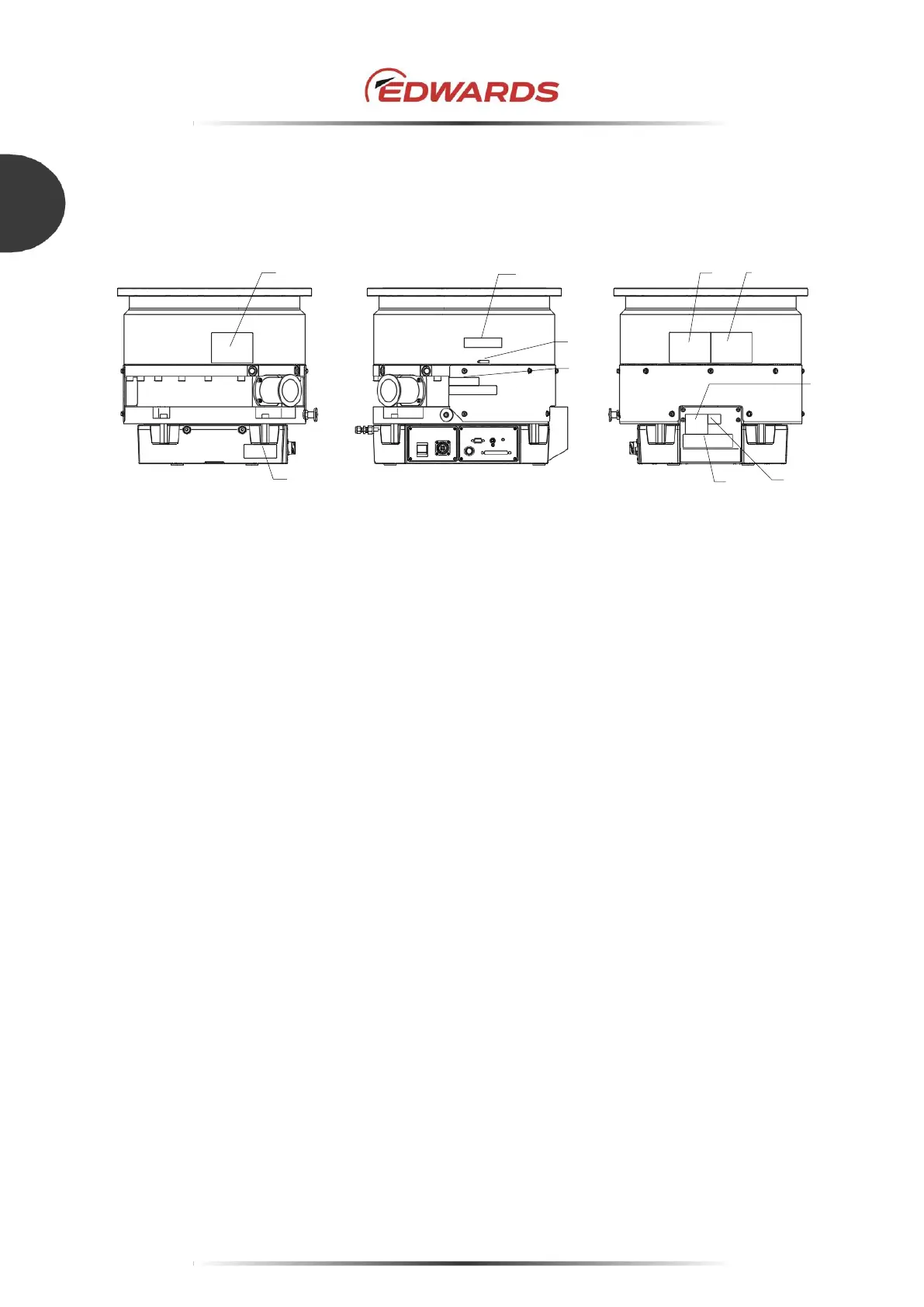

Figure 10 - Label affixing positions
1
2
3
7
9
8
4
2
6
10
