ESR-Series. User manual
37
ESR-3100 rear panel

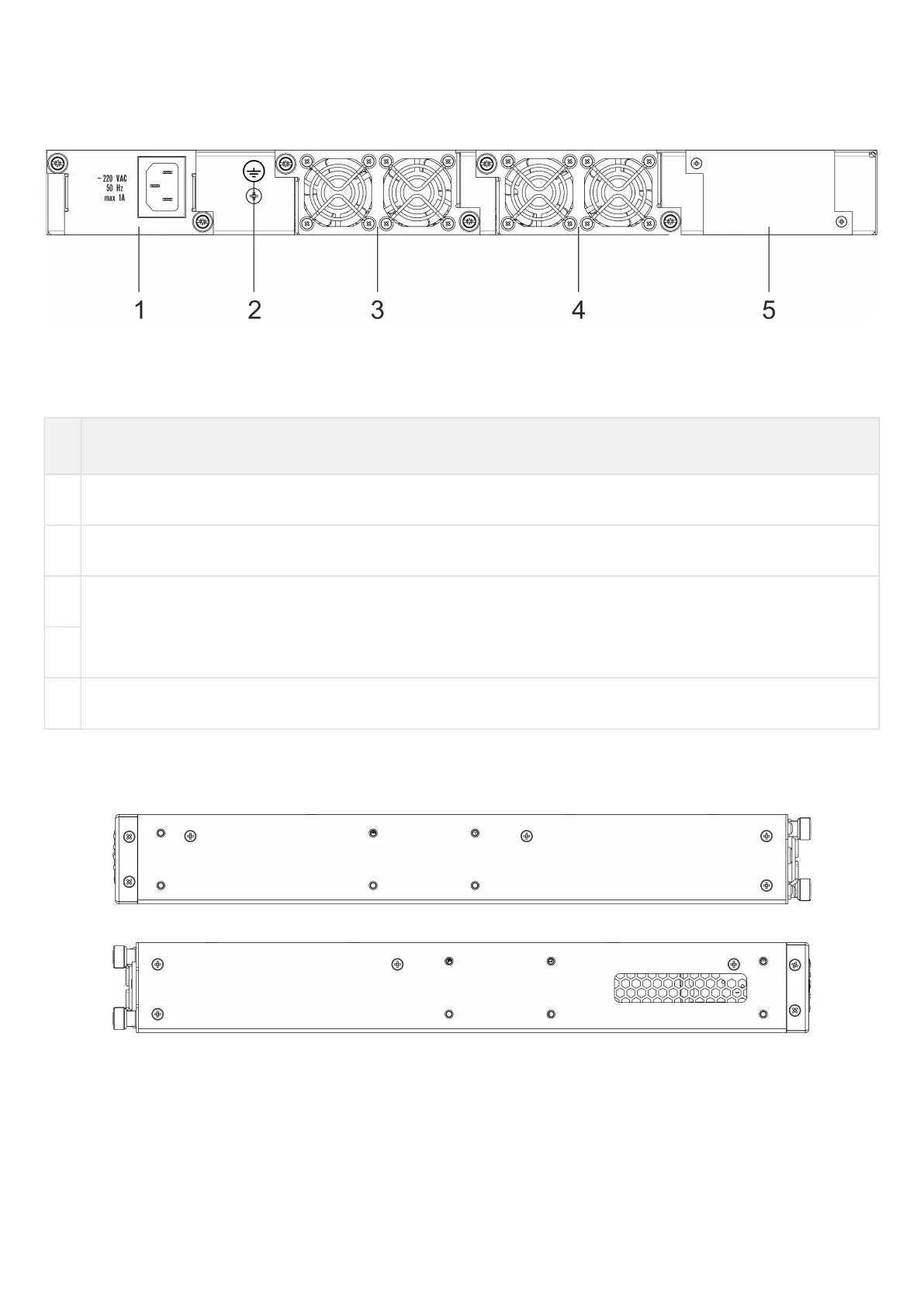

The rear panel of ESR-3100 is depicted in the figure below.
Figure 6 – ESR-3100 rear panel
Table 12 lists rear panel connectors of the router.
Table 12 – Rear panel connectors description
Description
1 Main power supply.
2 Earth bonding point of the device.
3 Hot-swappable removable ventilation modules.
4
5 Place for installation of a redundant power supply.
ESR-3100 side panels
The side panel layout of ESR-3100 is depicted in figures 7 and 8.
Figure 7 – ESR-3100 right side panel
Figure 8 – ESR-3100 left side panel
Side panels of the device have air vents for heat removal. Do not block air vents. This may cause the
components to overheat, which may result in device malfunction. For recommendations on device
installation,see section Installation and connection.
