ELTEX ESR Series User Manual

ESR-Series. User manual
43
•
•
№ Front
panel
element
Description
Master Indicator of failover modes operation.
Fan Fan operation LED.
RPS Redundant power supply LED.
8 F Functional key that reboots the device and resets it to factory default configuration:
Pressing the key for less than 10 seconds reboots the device;
Pressing the key for more than 10 seconds resets the terminal to factory settings.
9 Console Console port RS-232 for local management of the device.

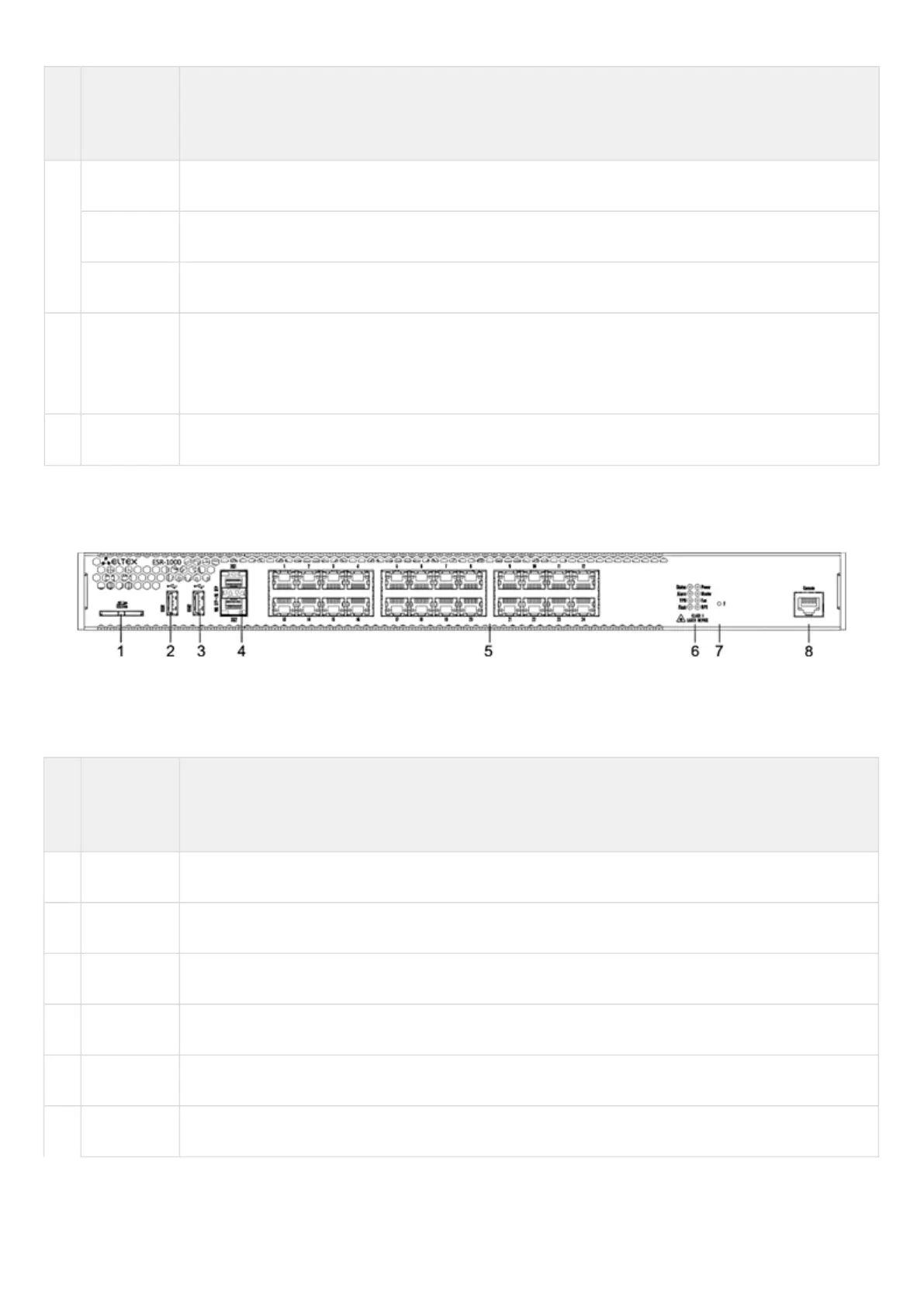

ESR-1000 front panel
The front panel layout is depicted in 15.
Figure 15 – ESR-1000 front panel
Table 17 lists sizes, LEDs and controls located on ESR-1000 front panel.
Table 17 – Description of connectors, LEDs and controls located on ESR-1000 front panel
№ Front
panel
element
Description
1 SD SD-card connector.
2 USB1 Port for USB device connection.
3 USB2 Port for USB device connection.
4 XG1, XG2 Slots for 10G SFP+/1G SFP transceivers.
5 [1 .. 24] 24 ports of Gigabit Ethernet 10/100/1000BASE-T (RJ-45).
6 Status Current device status LED.

ELTEX ESR Series Specifications

General

Model	ESR Series
Category	Network Router
Manufacturer	ELTEX
Management	Web interface, CLI, SNMP
Operating Temperature	0°C to 40°C
Dimensions	Varies by model
Weight	Varies by model
Routing Protocols	OSPF, BGP
WAN Interfaces	Ethernet, SFP
LAN Interfaces	Ethernet, SFP
VPN Support	IPsec, L2TP, PPTP
Firewall	Stateful packet inspection, ACLs
Power over Ethernet (PoE)	Available on some models
QoS	Traffic prioritization
