Epson AcuLaser M2000D User Manual

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 108
Confidential

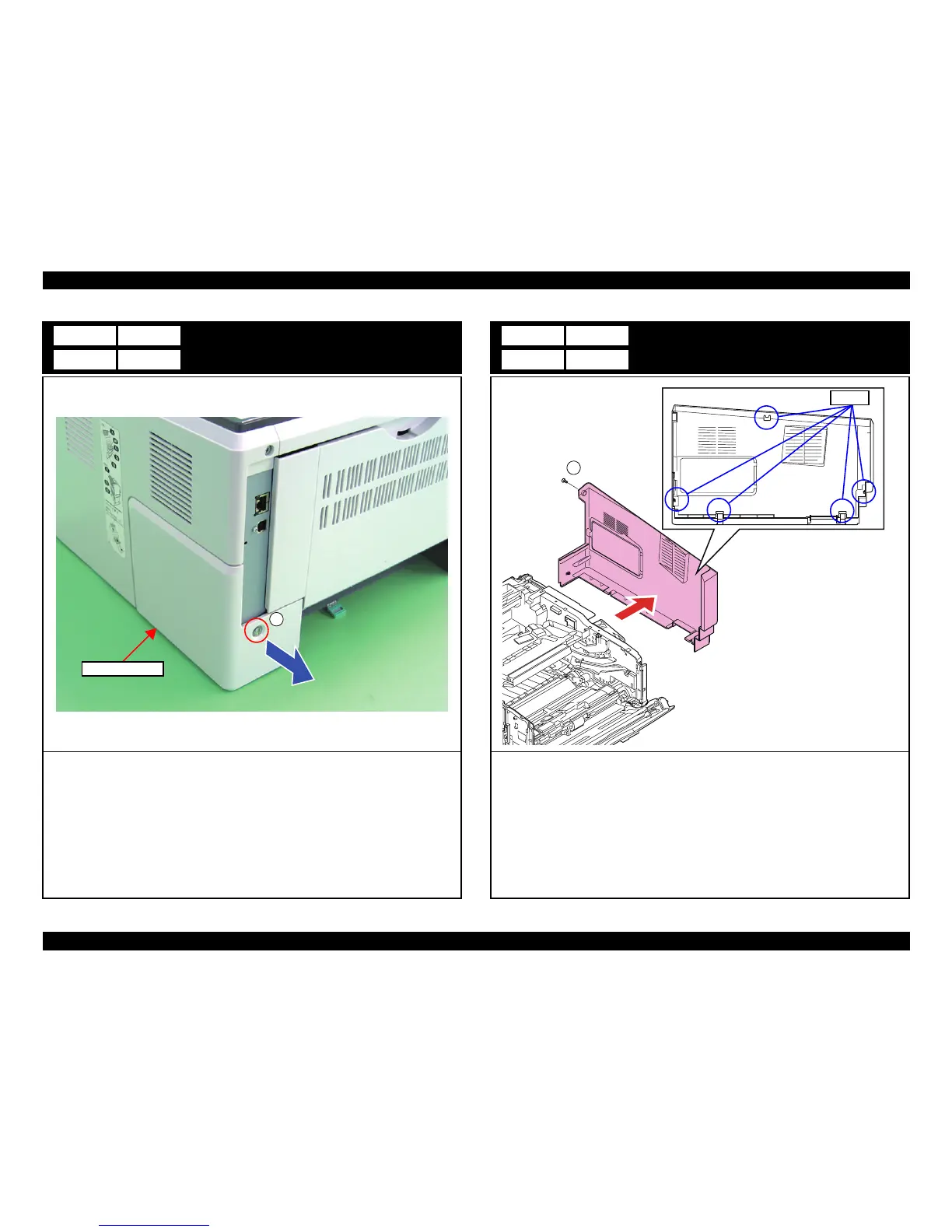

Controller Cover
1. Remove the screw.
A) Silver / M3x6 / S-Tite: One piece
2. Remove the Controller Cover in the direction of the arrow.
A1 B1
A
Controller Cover
Right Cover
1. Open the Front Cover.
2. Slightly pull out the Paper Cassette.
3. Remove the screw.
A) Silver / M3x10 / P-Tite: One piece
4. Disengage the five hooks of the Right Cover in the order from the rearmost hook to the
frontmost hook, and remove the Right Cover.
A2 B2
Hooks
A
