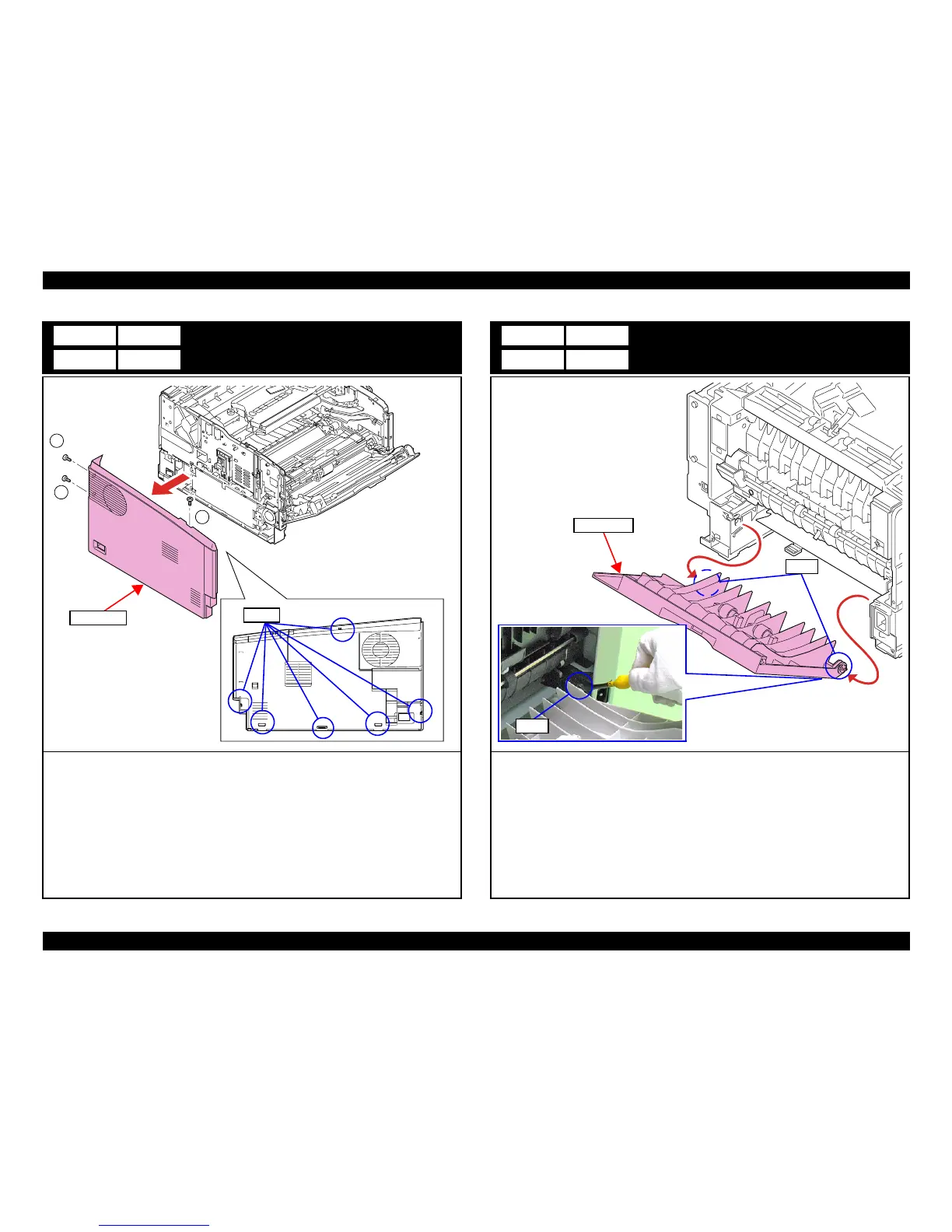

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 109
Confidential
Left Cover
1. Open the Top Cover.
2. Slightly pull out the Paper Cassette.
3. Remove the three screws.
A) Silver / M3x10 / P-Tite: Three pieces
4. Disengage the six hooks of the Left Cover in the order from the rearmost hook to the
frontmost one, and remove the Left Cover.
A3 B3
Left Cover
Hooks
A
A
A
Rear Cover
1. Open the Rear Cover.
2. Pull out the right shaft of the Rear Cover (as seen from the rear) using a flat-blade
screwdriver or similar tool, and remove the Rear Cover.
A4 B4
Rear Cover
Shaft
Shaft
